10 Watt DC Converter brick module with 12VDC input and 15V output at half price AV10-12S15


10 watt DC/DC converter module

Click here for a larger view of the DC/DC converter

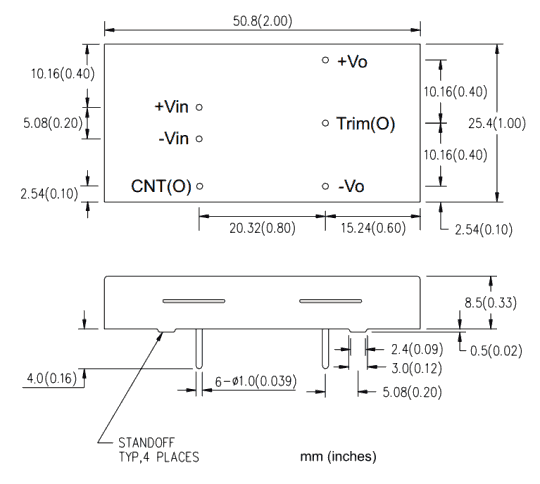

View from the bottom, or looking through the circuit board
Pin Single Output
1 + Input
2 - Input
3 Control
4 + Output
5 Trim
6 - Output
These printed circuit mount dc to dc converter bricks closely regulate the output voltage over a range of input voltages.

Isolated DC converter modules with 12V input and single 15V output


AV10-12S15 15V output 0.67A 10W $19 Add to cart
Data Value
Input voltage 12V 9V to 18V
Output voltage 15V 0.67A 10 Watts
Set point accuracy ±1%
Voltage adjust none
Line regulation ±0.2%
Load regulation ±0.5%
Noise <70mV p-p
Ripple <20 mV rms
Transient response 200 microsecond max for a 25% step
Control pin Negative polarity, float or attach to input ground to turn on
connect to positive 3.5V to 10V to turn off

Temperature -25°C to 95°C operating -40°C to 105°C storage
Agency approval UL60950, CSA22.2-60950, TUV EN60950
Data Sheet Full data sheet here
Weight 24g, 0.84 oz
Switching Frequency 330 kHz
Efficiency ~81%
MTBF > 3.7 million hours Bellcore TR332

Advantages:

OEM Battery Chargers Inexpensive Switchmode 12 volt to 15V DC/DC Converter

OEM Battery Chargers High efficiency: approximately 81%.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.
