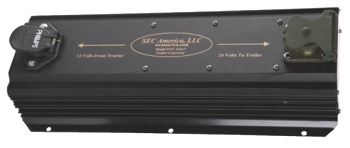

ETC1224-7 trailer controller, 12V vehicle, 24V trailer

trailer controller, 12V 24V  7-pin-sae-560 trailer connector
7 Pin SAE 560 12V
12 prong NATO socket MS 75021-2

12 Pin Nato 24V MS75021-2
  Input Connector Output Connector
12 volt and 24 volt trailer converters, military, European, USA
For more 12V/24V and 24V/12V trailer interface controllers click here
Model Price
ETC1224-7 Trailer Electrical Interface 12V vehicles, 24V trailer $1030
Optional NATO plug MS75020-1 without cable $96.60
Optional SAE plug JAE560 without cable $52.00
ETC1224-7 is a trailer wiring harness interface controller between an American 12 Volt commercial towing vehicle and 24 Volt NATO military trailer. ETC 1224-7 provides 6 independent circuits capable of supplying a total power of 800 Watts at 24 Volts. This power application to the trailer ABS system and its various lighting circuits is achieved through the same trailer connector pins conventionally designated for their respective functions. ETC1224-7 is weatherproof and has a low profile allowing mounting either on the towing vehicle chassis or the front face of the trailer.

Trailer Voltage Converter Interface Design Features

  • Wide Range Input Voltage 11V-17V, can withstand up to 24V
  • High Efficiency Design
  • Hi Ingress Rating, IP 676
  • Low Voltage cutout
  • High Voltage cutout
  • Electronically Current Limited
  • Thermally Protected
  • Low No-Load Power Consumption
  • Aluminum Anodized Housing
  • 6-point mounting
  • SAE 560 Input Connection
  • SAE 560 Output Connection
input/output table for ETC1224B trailer controller
INPUT VOLTAGE RANGE 11-17 VDC
Will withstand up to 24V
INPUT CURRENT 20A maximum. per Circuit
OUTPUT VOLTAGE 25.6 ± 0.3 V per circuit
OUTPUT CURRENT  10A per line
OUTPUT REGULATION 0.2V over entire input voltage and load current range
OPERATING TEMPERATURE

STORAGE TEMPERATURE
-40C to +60C
-60C to +125C
OVERLOAD PROTECTION Electronic
EFFICIENCY 92% Typical
CONSTRUCTION BLACK ANODIZED ALUMINUM
Weatherproof To IP676 level, up to 1 meter immersion in water
WEIGHT 14 lbs./ 6.5 kg. total
(cable included)

drawing of the UDC2412-BD trailer interface controller
