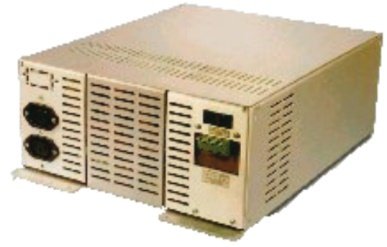

Heavy industry grade pure sine wave DC/AC inverters, 125VDC or 250VDC input, 110VAC or 220VAC output, 1500 watts

Pure Sine Wave Inverters 1500 watts, 125VDC input

The range of 125VDC input is 100-150VDC
The range of 250VDC input is 200-300VDC
  • Crystal controlled for precise timing for digital clocks and controllers
  • Suitable for any computer that requires less than 1500 watts continuous.
  • Ultra quiet with no electrical interference.
  • Illuminated on-off switch
  • Pure sine wave exactly duplicates household current.
  • Manufactured in accordance with COTS standard IPC-A-610.
  • Very rugged and reliable.
  • Low voltage warning and shutdown to protect the batteries
  • Suitable for operation with lead acid, sealed lead acid, 3 cell lithium ion and 4 cell lithium iron phosphate batteries.
  • The inverter is protected against condensation and are enhanced with vibration protection that meets or exceeds MIL-STD810F, Method 514-3 and Cat-1 Proc 1. C.O.T.S. products are designed to meet EMC radiated and conducted emissions MIL-STD 461E.
  • Extra heavy filtering to isolate noise from equipment sharing the same battery
  • Isolated, can be used in positive or negative ground applications.
  • Thermostatically controlled fan comes on only when needed.

1500 watt DC/AC inverters 125 volts DC to 115 VAC 125 volts DC to 220VAC 250VDC to 115VAC 250VDC to 220VAC
Part Number
and Price
PIVS1500-125-115
Allow up to 8-12 weeks for shipping
$3508
PIVS1500-125-220
Allow up to 8-12 weeks for shipping
$3508
PIVS1500-250-115
Allow up to 8-12 weeks for shipping
$3508
PIVS1500-250-220
Allow up to 8-12 weeks for shipping
$3508
Country of Origin Canada, NAFTA eligible Canada, NAFTA eligible Canada, NAFTA eligible Canada, NAFTA eligible
Input Voltage 100-150VDC 100-150VDC 200-300VDC 200-300VDC
Input Votage Also available with 24, 32, 48 or VDC input
Output Voltage 115VAC 220VAC 115VAC 220VAC
Output Frequency 60 Hz pure sine wave
50Hz or 400Hz available
Continuous Ouput Current 13 Amps 6.5 Amps 13 Amps 6.5 Amps
Output Power 1500 VA 1500 VA 1500 VA 1500 VA
Load Crest Factor 3 3 3 3
Output current limit? Yes
Operating Temperature Range 0°C to +50°C
Humidity 5-95% non-condensing
Efficiency 78 % minimum at full load
Duty Cycle Continuous power 24 hours per day
Harmonic Distortion <5% at full load
Line Regulation < ±0.5%
Load regulation < ±6% over the range of 10% load to 100% load
Temperature Drift <0.05% per °C over operating temperature range
Isolation 1500VDC Input to output 2250VDC, Output to chassis 2250VDC
Remote power on/off No
Input Connections Compression Terminal
Output Connections Standard AC recepticle
Input Protction Thermal fuse, Inrush current limiting, Reverse polarity protection
Output Protection Current limiting with short circuit protection, thermal shutdown with automatic recovery in case of continuous overload or insufficient airflow
EMI Meets EN55022 Class B
Agency compliance Compliance to C22.2 No. 107.1 - 01 and UL 458
Dimensions 5.3 x 13.8 x 16.75 inches
13.5 x 35.1 x 42.5 cm
Weight 11.35 Kg (25lbs)
Cooling Fan comes on when needed
Warranty* 2 years *Warranty depends on installation within good engineering practice.

Proven in the following applications:

  • Marine / Automotive / RV
  • Electric Utilities and Substations
  • Telecom Power Plants
  • Manufacturing Locations
  • Steel Mills
  • Military Applications (COTS)
  • Industrial Controls
  • OEM Applications
  • Solar / Alternative Power Systems
  • Fuel Cells
