1600 Watt low noise 24 volt to 12 volt DC/DC Converters

1600 watt DC to DC Converter 24V to 13.8V
VR120SW made in Italy

High power low noise 24 volt to 13.8 volt DC/DC converters with low noise for radio operation.

24 volt to 12VDC  DC/DC converters
For more 24/12 volt converters (common ground) click here

This is a low noise DC converter that uses polyphase switchmode technology, which increases the efficiency and lowers the conducted and emitted RF noise. It is designed to allow the use of 12 volt equipment in 24 volt vehicles, boats, and yachts, particularly radio transmitters and receivers.
These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction and recreational equipment. It is externally mounted fan cooled, so it can't to suck in dirt or water spray into the electronics.

To determine the amperage you need just add up the watts of all the equipment that will be powered by this DC to DC converter and divide by 13.4 volts.
These are also known as 24 volt voltage reducers, and voltage regulators.
VR120SW $658 add_to_cart.gif

Specifications and comparisons

Isolated DC/DC Converter
VR120SW
Input Voltage Range 20 To 32 V DC
Output Voltage 13.8 V DC, 13.4±0.5V
Continuous Output Current 120A
Maximum Output Power 1620 Watts
Ripple & Noise (P-P) <10mV
Load Regulation 350mV
Line Regulation 20mV
Efficiency 96%
Protection Reverse Polarity, Over Voltage (input and output), Overload, Short Circuit , Over Temperature
Output Connection Type Wire screw terminals into removable connector block wire terminal into removable connector block
Input Connection Type Wire screw terminals into removable connector block
Approvals CE
Dimensions (WxHxD) 320 x 190 x 75 mm
12 x 7.5 x 3 inches
Weight 2 Kg, 4.4 lbs
Parallel operation No
Battery charging? No
Temperature range -10°C to +55°C
Remote control The unit can be turned on with a +12 or +24 volt connection for keyswitch control
Cooling System Fans cool the heat sink, no dust or mist is sucked the chamber containing the circuitry
Country of Origin Italy

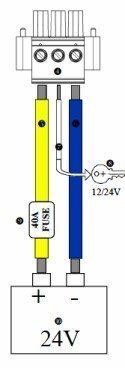

connection diagram

It also offers protection level for itself and to the connected loads. It features protection against transient voltage spikes typically encountered on equipment such as electric fork lifts. Being switchmode, they have high efficiency (>96%), produces little heat and is small in size.


Features:
  • High efficiency 96%
  • Low profile, high power density
  • Protection against transient voltages
  • EMC Interference Immunity
  • 20 to 32 V DC input voltage
  • Overload and short circuit protection
  • Over current protection

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converters

OEM Battery Chargers High efficiency

OEM Power Supplies Excellent line and load regulation

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range
