12 volt 4 channel regulated power supply.

12 volt multioutput Power Supply for Security Video System

Home: Custom Chargers, DC DC Converter, power supplies

This inexpensive 12 volt AC/DC power supply is useful for any application requiring requiring 4 independent outputs of 320 mA or less. A video or computer monitor can easily sit on top of this robust 12 volt power supply.
........................................................................


For unregulated AC and DC output wall mount power supplies click here		For 60 Watt to 120 Watt AC Laptop Adapters for all Manufacturers, click here.

For DC DC converters from PowerStream click here:

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

. In Stock Price $25.50 each.

PST-412V
Quantity	1-10	11-50	51-100	100+
Price	$25.50	$23.00	$20.00	Call

Model : PST-412V

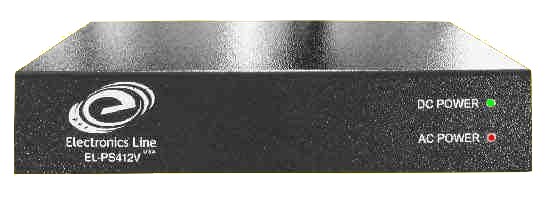

This power supply has 4 outputs to drive 4 independent security video cameras. The power supply chassis is designed to hold a computer monitor on top of it. It also has two AC outlets that turn off with the main power switch. AC and DC output LEDs on the front panel indicate power status.

If any of the four DC outlets is shorted, the remaining outlets will continue to supply uninterrupted power.

Model Number	PST-412V Switching Power Supply
Input Voltage Range	115 VAC 60 Hz
Peak Output Power	3.8 Watts per Channel, 4 Channels
Switched AC	2 AC output plugs, total 6 amps combined
Peak Output Current	320 mA per Channel, 4 Channels
Output Voltage	12 VDC
Output Connector	RCA Jacks
Input Cord	Fixed AC cord, 6 feet long
Protection	Circuit Breaker
Dimensions	300 mm x 300 mm x 56 mm (11 3/4 inch x 11 3/4 inch x2 3/16 inch)
Weight	8 lbs (shipping weight)

Advantages:

Will operate up to four 12 volt loads independently.

DC power supplies immune to shorting

Fits easily under a computer montitor for use with muti-camera security systems
