12, 15, 16, 18, 19, 20, 21, 22 or 24 VDC Adjustable Switchmode Power Supplies |
|
  |
|
Universal AC adjustable output DC power
supply, 90 Watts and 120 watts. |
|
|
|
For more power
supply products from PowerStream click here:
Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for

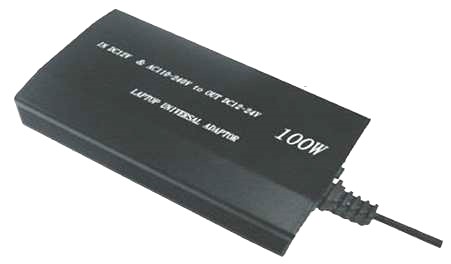

OEMs in a hurry! .This is a small switchmode power supply, with
adjustable output, 90 watts peak. Suitable for laptops, LCD monitors and other electronics. Prices
|
Qty 1-10 |
11-50 |
51-100 |
100+ |
PST-AC0407 Price |
$57.25 |
$52.50 Call to order |
$46.80 |
Call |

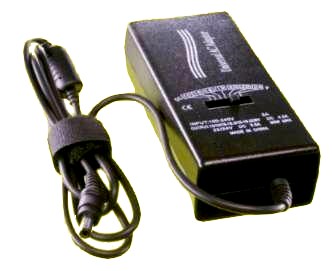

| PST-ITU002 |
$57.25
 |
$52.50 Call to order |
$46.80 |
|
Specifications. Click here for test data.
| Part Number |
PST-AC0407 |
|
PST-ITU002 |
| Parameter |
 |
|
 |
| Output |
12 volts, 15 volts, 16 volts, 18 volts, 19 volts, 20 volts or 21 volts, single output, user
adjustable |
|
15 volts, 16 volts, 18 volts, 19 volts, 20 volts, 22 volts or 24 volts, single output, user
adjustable |
| Output Power |
90 Watts |
|
120 Watts |
| Input Voltage |
100-240 VAC, 47-63 Hz |
|
100-240 VAC, 47-63 Hz |
| Input Frequency |
50/60 Hz |
|
50/60 Hz |
| Excellent efficiency |
85% at half load 82% at full load |
|
82% at half load 82% at full load |
| Regulation |
Fully regulated |
|
Fully regulated |
| No load overhead |
600 mW 12 volt setting 1.5W 24 volt setting |
|
500mW 15 volt setting 1W 24 volt setting |
| Temperature |
0° to 40° C Operating, over temperature cutout is reset by removing and reapplying AC power. |
|
|
| Over Current Protection |
See table below for current cutout values at each voltage setting. Over current protection is "hiccough
mode" which automatically restarts when the overload is removed. |
|
|
| Size |
120mm x 70mm x 50mm (4.75 x 2.75 x 2 inches) |
|
168mm x 64mm x 39 mm (6.6 x 2.5 x 1.53 inches) |
| Agency Approvals |
CE, double insulated |
|
CE |
| Output Connectors Included |
6.3 (O.D) x 3.0 (I.D) x 11(L) mm 5.5 (O.D) x 2.5 (I.D) x 11 (L) mm 5.0 (O.D) x 2.1 (I.D) x 11
(L) mm 4.75 (O.D) x 1.7 (I.D) x 11 (L) mm Y EIAJ 6.5 (O.D) x 4.3 (I.D) x 11 (L) x 1.4 (PIN) mm |
|
3.5 OD x 1.35 ID Barrel 4.75 mm OD x 1.75 mm ID Barrel (EIAJ-03), 5.0 mm OD x 3.5 mm ID with
center pin, 5.5 mm OD x 2.5 mm ID type 2, 5.5 mm OD x 2.5 mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD x
3.0 mm ID Barrel 3 pin HRS connector |
| International adapters |
USA Cord included, also a European 2 prong AC travel adapter |
|
The AC input is a 2 prong IEC connector that will fit a variety of international cords. The USA cord is
included. |
| 16 connector set available extra, click
here. |
 |
|
 |
| How Many Amps are Too Many? |
In a regulated power supply, such as these switchmode power supplies, amps don't matter as
long as you have enough. Excess amperage is just held in reserve. An analogy is "doubling the size of your water heater won't
make your shower pressure change." Unregulated power supplies (such as wall-mount transformers) are different, since
they are built to supply a specific voltage at a specific amperage. If you draw less amperage the voltage will go up.
In conclusion, a higher current rating won't hurt your appliance as long it is a regulated power supply. For unregulated power
supplies the specification should be close to the original. |
Output voltage comparison table:
| Volts |
PST-AC0407 |
PST-ITU002 |
| 12VDC |
Yes |
No |
| 15VDC |
Yes |
Yes |
| 16VDC |
Yes |
Yes |
| 18VDC |
Yes |
Yes |
| 19VDC |
Yes |
Yes |
| 20VDC |
Yes |
Yes |
| 21VDC |
Yes |
No |
| 22VDC |
No |
Yes |
| 24VDC |
No |
Yes |
Test Data for the PST-AC0407
| Voltage Setting |
Voltage Measured |
Current at rated 90 Watts |
Current at current Limit |
Peak Power |
| 12 Volt DC |
11.9 V |
7.74 Amps |
10+ Amps |
120 Watts |
| 15 Volt DC |
14.86 |
6 Amps |
8.9 Amps |
120 Watts |
| 16 Volt DC |
15.85 |
5.5 |
8.5 |
120 Watts |
| 18 Volt DC |
17.88 |
5 |
7.6 |
120 Watts |
| 19 Volt DC |
18.87 |
4.7 |
7.2 |
120 Watts |
| 20 Volt DC |
19.83 |
4.5 |
7 |
120 Watts |
| 21 Volt DC |
20.8 |
4.3 |
6.7 |
120 Watts |
Advantages:
Universal input switchmode dc power supply with user
adjustable output voltage.
High efficiency PC power supply for telecom
use..
Excellent line and load regulation.
Special feature for OEMs and
hobbyists. A a separate compartment opens, having screw terminals for attaching wires or cables to the output.
|
|
|
|
|
|
