500 Watt 12 volt DC Input PC ATX-24 pin or ATX-12 Style Power
Supply |
|
 |
|
500 watt
DC Input ATX-12 Style PC power supplies for cars, solar and battery power |
|
These are high-performance industrial grade ATX computer power supplies with 12 volt DC input. They are
useful for applications where battery or solar power is available. These are regulated switching power converters. For use in
12 volt cars, boats, motor homes, etc.
| Quantity |
Price
PSTC-12500 |
24 to 20 pin ATX adapter cable |
| 1 - 10 pieces |
$310.00
|
$4.00
|
| 11-100 |
$249.00 |
$3.00 |
| 101-500 |
$232.00 |
Call |
| 501+ |
Call |
Call |
Features
1. Has the European CE Mark, meets UL60950, TUV EN60950
2. Standard connector kit up-to-date
3. Remote ON/OFF
4. Built in EMI Filter, meets
FCC Part 15 Class B, CISPER22, EN55022 Class B
5. "Power Good" signal
6. Terminal strip for DC input
7.
Click here
for a -48VDC input ATX-12 power supply
8. DC 12 volt nominal, 9-18 VDC INPUT
9. Fully ATX compatible
10.Remote Sense for Main Output
11.100% ATE Test
12.100% Hi-pot Test
13.100% Burn-in
14.Warranty : One year
15. Fully isolated, 1500 VAC for 1 second input to output, 1500 VAC for
1 second input to frame ground.
16. Mean time between failure >55,000
hours
17. Dual ball bearing fan
Quick glance
Specs |
Input Range |
Max
Power |
+5 V |
+3.3 V |
+12 V |
-5 V |
- 12 V |
+5 V SB |
| PSTC-12500 |
9-18 VDC, 12 volts nominal |
500 W |
60A |
35 A |
35 A |
n/a |
1 A |
3.5 A |
| Detailed Specification: |
| Detailed Specifications |
V / A |
V / A |
V / A |
V / A |
V / A |
VSB /A |
|
| PSTC-12500 |
|
+5V/50.0A |
+12V/30.0A |
-5V/n/a |
-12V/1.00A |
+3.3V/30.0A |
+5V/2A |
|
| |
Amps |
60 Amps |
35 Amps |
n/a |
1 Amps |
35 Amps |
3.5 Amp |
|
| |
Minimum Load |
1.5 Amps |
0.2 Amps |
|
0 Amps |
0 Amps |
0 Amps |
|
| |
Note:Combined Total Power From +3.3V And +5V rails Not to
Exceed 250W. Total Power 450W Max. |
| Output |
|
Line Regulation |
|
1% |
|
|
|
| |
|
Load Regulation |
|
5% |
|
|
|
| |
|
Ripple & Noise |
|
1% |
|
|
|
| |
|
Hold-up time |
|
16ms |
|
|
|
| Risetime |
|
|
|
<20mS |
|
|
|
| Input |
12 Volts |
Input Voltage |
12Vdc nominal, 9-18 volts range |
| |
|
Input Current |
12V/64Amp maximum |
| |
|
Inrush Current |
75 Amps cold start |
| Protection |
|
Over Power Protection |
130% ± 10% |
| |
|
Over Voltage Protection |
Yes, for +5V, +12V, +3.3V |
| |
|
Short Circuit Protection |
Yes (All Outputs shutdown and latch off) |
| Environment |
|
Operating Temperature |
00C To
500C |
| |
|
Storage Temperature |
-200C To
850C |
| Efficiency |
|
65% typical at full load, 12 VDC input |
|
Typical at full load |
| Safety |
|
Meets UL/cUL |
|
UL1950 |
| |
|
Meets TUV |
|
EN60 950 |
| EMI |
|
FCC |
|
Class B |
| |
|
CISPR |
|
Class B |
| |
|
EMC |
|
CE Mark |
| Dimension |
|
L x W x H |
86 x 150 x 140 ( mm ) |
| Weight |
|
2.3 kg |
5 pounds |
| Connectors |
|
1 each ATX 24 pin (24 to 20 pin adapter available)
8 each P4 4pin 12 volt
HDD, DVD
1
each 4pin
1 each Serial ATX
1 each 8 pin process
For ATX 20 and 24 Pinout Diagrams Click Here
|
|
| Cable length |
|
550 mm nominal |
|

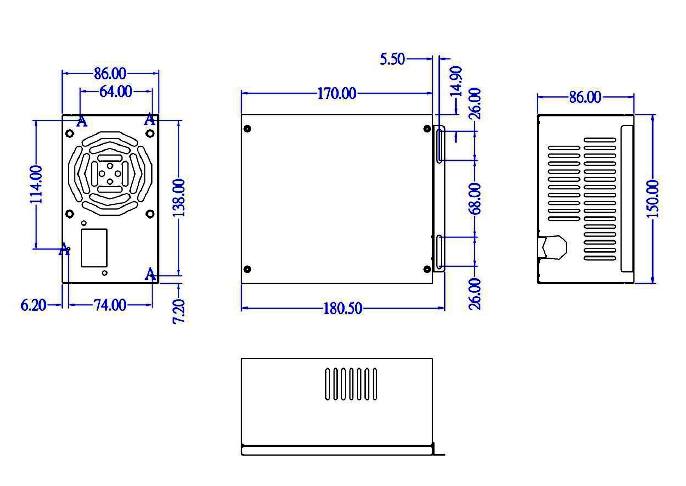

Dimensions of ATX-12 computer power supply with 12 volt input:
Advantages:
 DC input PSII Form Factor ATX-24 pin or ATX-12 Computer Power
Supply.
High efficiency car PC power supply.
Wide 9V to 18V
input voltage range. |
|
|
|
|
|
