20 Watt DC/DC Converters

Click here for a larger view of the DC/DC converter drawing
This is an "x-ray view" from the top, showing what the PC board pattern will look like
Pin Single Output Dual Output Triple output
1 On/Off On/Off On/Off
2 - DC In -DC In -DC In
3 +DC In + DC In +DC In
4 No connection + DC Out + DC Out
5 + DC Out Common +5V Out
6 - DC Out - DC Out Common
7 Trim Trim Trim
    ................ ................

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

. Minimum order 10 pieces.
Quantity Samples 50-99 101-499 500+
Price $80.00 $41.55 $31.95 $29.85
Note: the PST-SU-12-12 is in stock for $29.85 for all quantities!

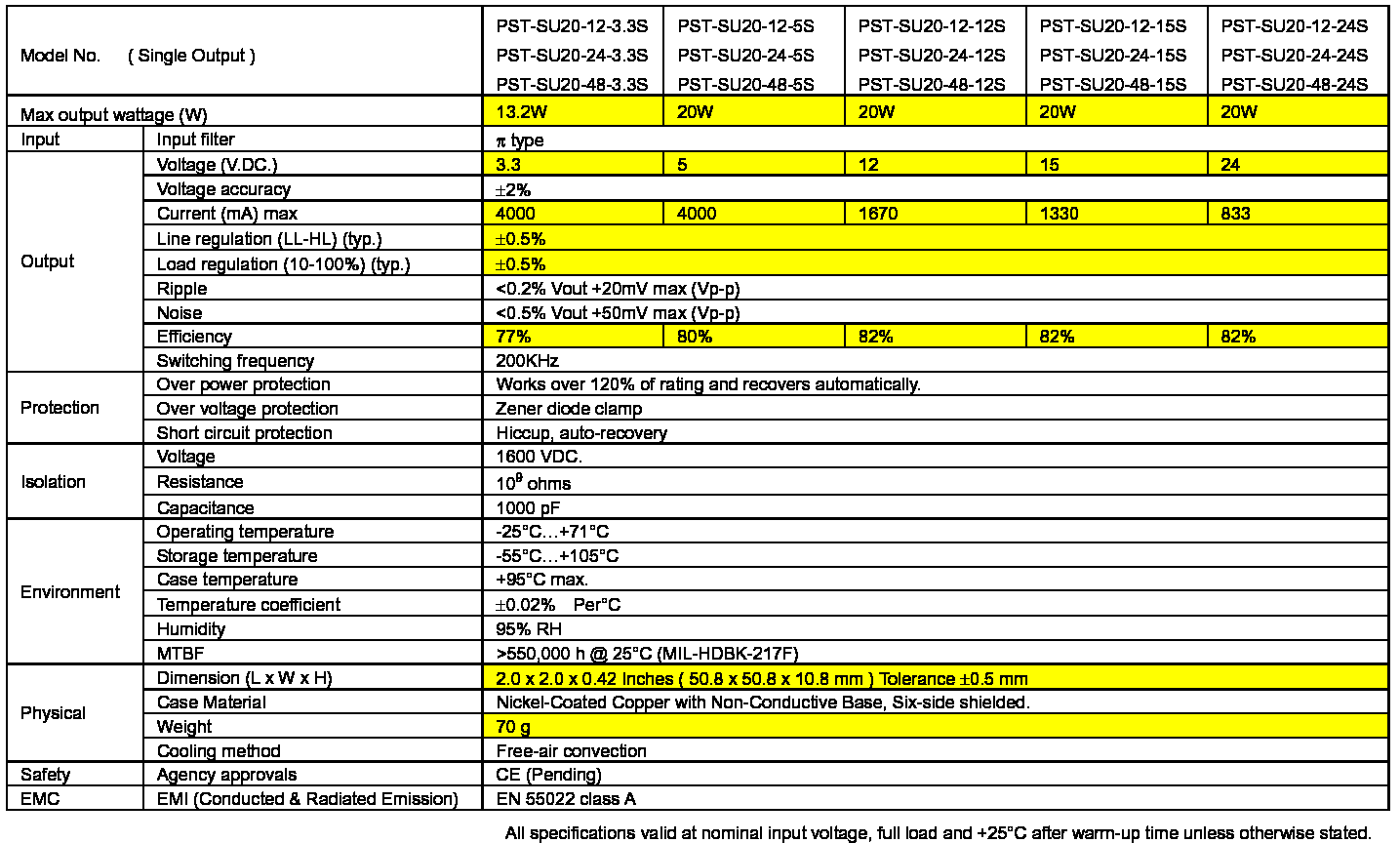

Isolated DC converter modules.
Part Number Input Output Max Current Max Power Form Factor
PST-SU-12-3 9-18 V 3.3 V 4 Amps 13 Watts 51 mm
PST-SU-12-5 9-18 V 5 V 4 Amps 20 Watts 51 mm
PST-SU-12-12 9-18 V 12 V 1.670 A 20 Watts 51 mm
PST-SU-12-15 9-18 V 15 V 1.330 A 20 Watts 51 mm
PST-SU-12-24 9-18 V 24 V 0.833 A 20 Watts 51 mm
PST-SU-24-3 18-36 V 3.3 V 4 Amps 13 Watts 51 mm
PST-SU-24-5 18-36 V 5 V 4 Amps 20 Watts 51 mm
PST-SU-24-12 18-36 V 12 V 1.670 A 20 Watts 51 mm
PST-SU-24-15 18-36 V 15 V 1.330 A 20 Watts 51 mm
PST-SU-24-24 18-36 V 24 V 0.833 A 20 Watts 51 mm
PST-SU-48-3 36-75 V 3.3 V 4 Amps 13 Watts 51 mm
PST-SU-48-5 36-75 V 5 V 4 Amps 20 Watts 51 mm
PST-SU-48-12 36-75 V 12 V 1.670 A 20 Watts 51 mm
PST-SU-48-15 36-75 V 15 V 1.330 A 20 Watts 51 mm
PST-SU-48-24 36-75 V 24 V 0.833 A 20 Watts 51 mm

Derating curve at high temperatures

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converter.

OEM Battery Chargers High efficiency approximately 80%.

OEM Power Supplies Multiple outputs available, just ask.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.


Note: these DC/DC converter modules are OEM/Wholesale only, minimum purchase quantities apply.
