| 48V to 12V DC-DC Converters |
Heavy Duty
60 Amp
DC to DC Converter
 |
Ruggedized Marine
60 Amp
DC to DC Converter |
Military Grade
60 Amp
DC to DC Converter |
|
Part
Number
and Price |
PVTC1015-48-12
$1638
Allow up to 14 days for shipping
|
PVTC1015-48-12-V
$1884
Allow up to 14 days for shipping
|
PVTC1015-48-12-MIL
$2130
Allow up to 14 days for shipping
|
Part
Number |
| Input Voltage |
44 to 60VDC |
44 to 60VDC |
44 to 60VDC |
Input
Voltage) |
| Max Input power at No
Load |
10W idle power |
10W idle power |
10W idle power |
Max Input
Power at No Load |
| Output Voltage |
13.6 VDC ±0.05V
(12V available, ask at time of order) |
13.6 VDC ±0.05V
(12V available, ask at time of order) |
13.6 VDC ±0.05V
(12V available, ask at time of order) |
Output
Voltage |
| Max Output
Current(s) |
70 Amps
10 minutes maximum |
70 Amps
10 minutes maximum |
70 Amps
10 minutes maximum |
Max Output
Current |
| Max Output Power |
952 Watts |
952 Watts |
952Watts |
Max Output
Power (10 Minutes) |
| Max Output Power
(continuous) |
816 watts
(60 Amps) |
816 watts
(60 Amps) |
816 watts
(60 Amps) |
Max Output
Power (continuous) |
| Output current
limit? |
Yes |
Yes |
Yes |
Output
current limit? |
| Operating Temperature
Range |
-25°C to +40°C |
-25°C to +40°C |
-40°C to +55°C |
Operating
Temperature Range |
| Derating |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C from +55°C to +85°C |
|
| Efficiency |
>85 %
at maximum output |
>85 %
at maximum output |
>85 %
at maximum output |
Efficiency |
| Line Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Line
Regulation |
| Load Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Load
Regulation |
| Switching frequency |
60 kHz |
60 kHz |
60 kHz |
Switching
frequency |
| Output ripple noise |
<50 mV rms |
<50 mV rms |
<50 mV rms |
Output ripple
noise |
| Noise inserted on the
input terminals |
<50 mV rms |
<50 mV rms |
<50 mV rms |
|
| Isolation |
Fully isolated
Input-Case & Input-Output 1500VDC (500VDC Output-Case) |
Fully isolated
Input-Case & Input-Output 1500VDC (500VDC Output-Case) |
Fully isolated
Input-Case & Input-Output 1500VDC (500VDC Output-Case) |
|
| Remote power on/off |
No |
No |
No |
Remote power
on/off |
| Input Fuse |
20A AGC x 2 |
20A AGC x 2 |
20A AGC x 2 |
|
| Connections |
Input #10 AWG wires
Output four screw terminals |
Input #10 AWG wires
Output four screw terminals |
Input #10 AWG wires
Output four screw terminals |
|
| Protection |
Over Voltage , Over Current, Short Circuit , Reverse
Polarity , Over Load |
Over Voltage , Over Current, Short Circuit , Reverse
Polarity , Over Load |
Over Voltage , Over Current, Short Circuit , Reverse
Polarity , Over Load |
Protection |
| Dimensions |
368 mm x 251 mm x 140 mm
(14.5 x 9.9 x
5.5 inches) |
368 mm x 251 mm x 140 mm
(14.5 x 9.9 x
5.5 inches) |
368 mm x 251 mm x 140 mm
(14.5 x 9.9 x
5.5 inches) |
Dimensions |

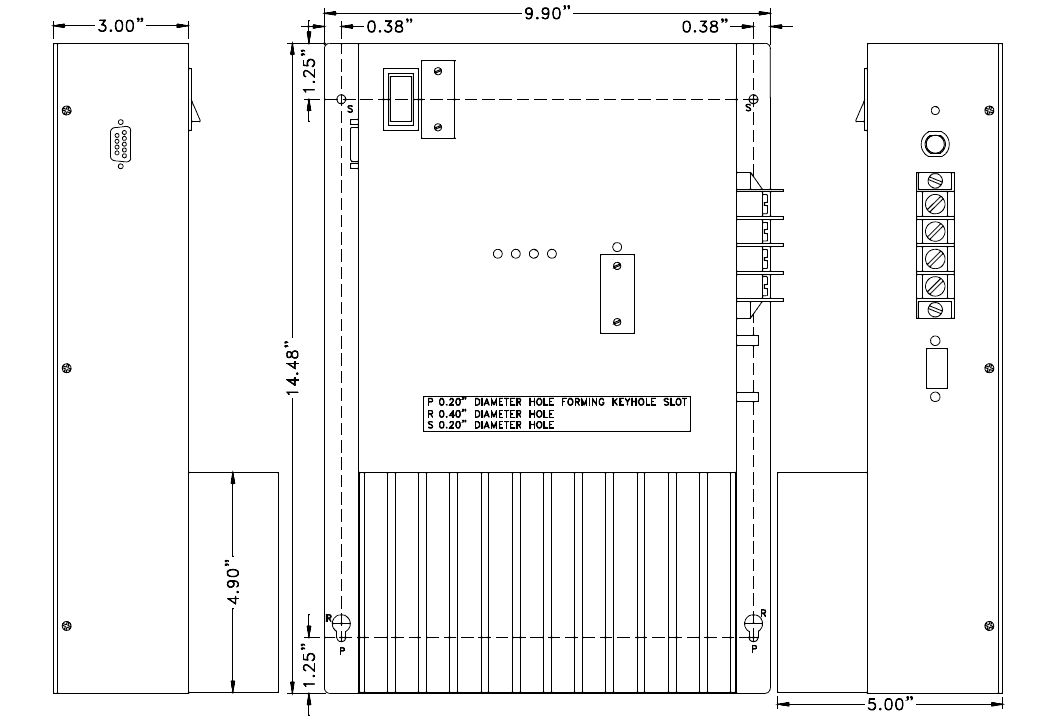

| Drawings |
Click Here for Drawing
|
Click Here for Drawing
|
Click Here for Drawing
|
|
| Weight |
2.1 Kg (4.7 lbs) |
2.1 Kg (4.7 lbs) |
2.1 Kg (4.7 lbs) |
Weight |
| Audible Noise |
None |
None |
None |
|
| Warranty |
3
years |
1
Year |
1
Year |
|
Heavy
Duty, High Current Switchmode DC/DC Converters.
