| DC-DC Converters |
Heavy Duty
5 Amp
DC to DC Battery
Charger
 |
Marine Grade
5 Amp
DC to DC Battery
Charger
|
Military Grade
5 Amp
DC to DC Battery
Charger
|
|
Part Number
and Price |
PBCD72-24-12
$264
Allow up to 15 days for shipping
|
PBCD72-24-12-V
$304
Allow up to 15 days for shipping
|
PBCD72-24-12-MIL
$343
Allow up to 15 days for shipping
|
Part Number |
| Country of Origin |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
Canada, NAFTA eligible |
|
| Input Voltage |
20 to 35VDC |
20 to 35VDC |
20 to 35VDC |
Input Voltage) |
| Max Input current at No Load |
mA |
mA |
mA |
Max Input current at No Load |
| Output Voltage |
13.6 VDC |
13.6 VDC |
13.6 VDC |
Output Voltage |
| Max Output Current(s) |
7 Amps
10 minutes maximum |
7 Amps
10 minutes maximum |
7 Amps
10 minutes maximum |
Max Output Current |
| Max Output Power |
95 watts |
95 watts |
95 watts |
Max Output Power (10 Minutes) |
| Max Output Power (continuous) |
68 Watts
(5 Amps) |
68 Watts
(5 Amps) |
68 Watts
(5 Amps) |
Max Output Power (continuous) |
| Output current limit? |
Yes |
Yes |
Yes |
Output current limit? |
| Operating Temperature Range |
-25°C to +40°C
(-13°F to
+104°F) |
-25°C to +40°C
(-13°F to
+104°F) |
-40°C to +40°C
(-40°F to
+104°F) |
Operating Temperature Range |
| Derating |
2.5% per °C up to +50°C |
2.5% per °C up to +50°C |
2.5% per °C up to +55°C |
|
| Efficiency |
>88 % |
>88 % |
>88 % |
Efficiency |
| Line Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Line Regulation |
| Load Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Load Regulation |
| Switching frequency |
kHz |
kHz |
kHz |
Switching frequency |
| Output ripple noise |
<10 mV rms |
<10 mV rms |
<10 mV rms |
Output ripple noise |
| Noise inserted on the input terminals |
<10 mV rms |
<10 mV rms |
<10 mV rms |
|
| Isolation |
Common negative ground |
Common negative ground |
Common negative ground |
|
| Remote power on/off |
No |
No |
No |
Remote power on/off |
| Input Fuse |
10A AGC |
10A AGC |
10A AGC |
|
| Connections |
Screw terminals. |
Screw terminals |
Screw terminals |
|
| Protection |
Over Voltage , Over
Current, Short Circuit , Reverse Polarity , Over Load |
Over Voltage , Over
Current, Short Circuit , Reverse Polarity , Over Load |
Over Voltage , Over
Current, Short Circuit , Reverse Polarity , Over Load |
Protection |
| Dimensions |
140 x 102 x 53mm (5.5x 4 x 2.1
inches) |
140 x 102 x 53mm (5.5x 4 x 2.1
inches) |
140 x 102 x 53mm (5.5x 4 x 2.1
inches) |
Dimensions |

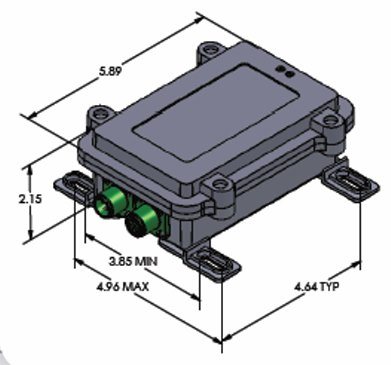

| Drawings |
Click Here for Drawing
|
Click Here for Drawing
|
Click Here for Drawing
|
|
| Weight |
0.4 Kg (0.8 lbs) |
0.4 Kg (0.8 lbs) |
0.4 Kg (0.8 lbs) |
Weight |
| Audible Noise |
None |
None |
None |
|
| Cooling |
Convection, no fan |
Convection, no fan |
Convection, no fan |
|
| Warranty |
3 years |
1 Year |
1 Year |
Additional Features |
The following table describes the display of LED lights at different stages of charging:
Q: Can I
leave the battery continuously on the charger?
A: Yes, the charger will go into "maintenance mode" and keep the battery
topped off.
Q: Can I draw power from the battery when the charger is connected?
A: Probably. . . There is some
pulsing going on with the charger which your equipment might not be happy with (it is a pulse-charger, 1 second pulses with
20mS gaps), but if you combine this with the battery the battery will fill in the gaps, so the ripple is no more than it would
see in an automotive application.
Q: If I discharge the battery while the charger is attached will the charger maintain a
full charge?
A: Yes, When the charger detects that the battery voltage has dropped it knows that the battery needs to be
charged and goes into "bulk charge" mode again automatically.
Q: Can the charger be left connected to the battery when
the charger is not turned on, or when the input voltage of the charger has been cut off?
A: Yes.
Applications:
 Charging wheel chairs, bicycles, and scooters in a car, van or
bus.
Microprocessor controlled 4 stage adaptive charging algorithm suitable for
Gel, Absorbed Glass Mat, VRLA, or flooded lead acid batteries.
Fully automatic without intervention.
Output short circuit and battery polarity protections. Input low voltage
and high voltage connections.
Charging 24 volt batteries from a vehicle.
Charging 24 volt "jump start" batteries from a 12 volt tow truck or
service vehicle.
Charging 24 volt electric bicycle from a vehicle.
Four stage
charge--constant current, constant voltage, fill, and float. This charges your battery the fastest way possible without
damaging the battery. It is suitable for any size 24 volt lead acid battery.
Charge efficiency is 95% for
the a SLA, VRLA, or Gel Cell battery and 85% for the charger, making a combined efficiency of 81%. So a 12 volt 100 AH battery
would be able to charge a 24 volt 10 AH battery 4 or 5 times before the host battery needs
recharging.
Installation Notes:
- A qualified automotive electrical technician should be used to wire the charger into the vehicle.
- The PBCD72-24-12 converts 24 volt power into 12 volt power, so for a 5 amp output the input needs over 2.5
amps. Make sure that the wires connecting the PBCD72-24-12 are adequate for the current and the length of the run. If the
voltage drop in the wires are too much the "Low Battery Voltage" alarm will come on. Wires that are too small may also overheat
and melt the insulation, causing a dangerous situation. 12 gauge is usually adequate for runs up to 20 feet of wire (adding
together the positive and negative wire lengths).
- PowerStream can supply the connector that fits into many wheelchairs (
we have the 3 pin
XLR style in stock
). Consult the manufacturer or a wheel chair technician to obtain the proper cable and plug. (If you know about
such things please educate us!)
- It is OK to leave the unit on the charger when the power to the charger goes on and off.
- Mount the PBCD72-24-12 in an area that will get adequate ventilation and will be free from rain, spray, or
excessive dust.
Summary:
Model PBCD72-24-12 in-car wheelchair chargers. DC Input Voltage 20-35V Charging
Voltage 12V Nominal, 13.6 volt maximum. Maximum Charging Current 7A Charging method: taper charge. Protections (1) Input and
output polarity protect (2) Output short circuit protect (3) Over temperature protect |
