Lithium Rechargeable Batteries with High Current and High Capacity.

Medium Current Rechargeable Lithium BatteriesDue to limited resources we cannot accept new customers for these cells, sorry.

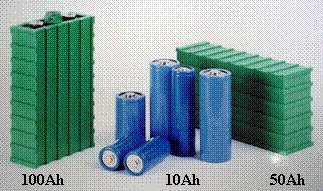

Lithium Ion Batteries are now available in large sizes and with high discharge currents.

For more battery resources from PowerStream click here:

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

New options for large lithium ion cells and batteries:

	Lithium Iron Phosphate packs are now available, Click here
Large prismatic Lithium Ion cells, 12 AH to 90+ AH, high current, long life, high quality. Battery management and chargers available now. click here		Ready-to-use 24 and 36 volt lithium ion battery packs welded into aluminum cases, 10 and 12 AH click here. Battery management circuits included, and chargers are available now.	1 amp off-the-shelf charger for 3 cell 10.8 volt lithium-ion or lithium-polymer battery packs	4 amp off-the-shelf for 3 cell 10.8 volt lithium-ion, lithium-polymer battery packs

Cylindrical Cells	Not available at this time. Click here for 12 AH rectangular high current, high capacity lithium-ion batteries and cells.
Capacity	10 AH
Voltage	3.6 V Nominal
Voltage Range	4.20 - 2.8 V
Cycle Life	500 Cycles
Size	42 mm Diameter x 120 mm
Best Charging Current	3 Amps
Maximum Charging Voltage	4.20 V
Charge Termination Current	130 mA (C/100) at 4.20 Volts
Continuous Operating Current for rated cycle life	3 Amps
Maximum Discharge Current, 200 cycle life	30 Amps
Pulse Discharge current	>150 Amps
Discharge Cuttoff Voltage	2.80 Volts minimum
Operating Temperature (charging & discharging)	-25 °C to +75 °C
Case Material	Steel
Weight	360 Grams

Lithium Ion 50 Amp Hour Cell

50 AH Rectangular Cell	These big lithium-ion batteries are being phased out, click here for the new 2nd Generation Cells
Capacity	50 AH
Voltage	3.6 Nominal
Voltage Range	2.8 - 4.20 V
Cycle Life	500 cycles
Best Charging Current	15 Amps
Charging Voltage	4.20 Volts Maximum
Termination Current	500 mA (C/100) at 4.20 Volts
Maximum Charging Current	50 A (450 A for short periods, such as regenerative braking)
Operating Temperature Range	-25 °C to +75 °C
Discharge Current for Rated Capacity	15 Amps
Continuous Discharge Current 200 cycles cycle life	150 Amps
Pulse Discharge Current	>600 Amps
Discharge Cut Off Voltage	2.80 volts minimum
Size	195 x 46 x 115
Case Material	Polypropylene
Weight	1.5 Kg

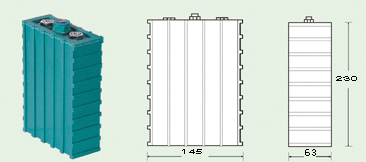

100 Amp Hour 3.6 Volt Cell

100 AH Rectangular Cell	These large lithium ion batteries are being phased out, click here for 2nd generation high capacity batteries.
Capacity	100 AH
Voltage	3.6 Nominal
Voltage Range	2.8 - 4.20 V
Cycle Life	500 cycles
Best Charging Current	30 Amps
Maximum Charging Current	100 A (900 A for short periods, such as regenerative braking
Charging Voltage	4.2 Volts Maximum
Termination Current	1 Amp (C/100) at 4.2 Volts
Discharge Current for Rated Cycle Life	33 Amps
Continuous Discharge Current	300 Amps
Pulse Discharge Current	>1200 Amps
Operating Temperature Range	-25 °C to +75 °C
Size	230 x 63 x 145
Case Material	Polypropylene
Weight	3.0 Kg

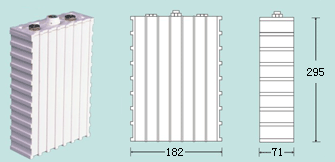

200 AH Rectangular Cell	These large lithium ion cells are being phased out, click here for the new technology high capacity batteries.
Capacity	200 AH
Voltage	3.6 Nominal
Voltage Range	2.8 - 4.20 V
Cycle Life	500 cycles
Charging Voltage	4.20 Volts Maximum
Termination Current	2 Amps (C/100) at 4.20 Volts
Best Charging Current	60 Amps
Maximum Charging Current	200 Amps (1800 amps for short periods, such as regenerative braking).
Discharge Current for Rated Capacity	60 Amps
Continuous Discharge Current	60 Amps
Pulse Discharge Current	>1800 Amps
Size	295 x 71 x 182
Weight	5.5 Kg
Case Material	Polypropylene
Operating Temperature Range	-25 °C to +75 °C

Advantages:

Energy densities up to 235 WH/liter (cylindrical) and 200 WH/liter (rectangular), 140 WH/kg.

Cells available from 10 AH to 500 AH.

High Discharge rates 1.5 to 5C (15+ C for short periods).

Priced competitive with other battery chemistries.
