PowerStream Product Examples
Custom 29 cell NiCad Battery Charger

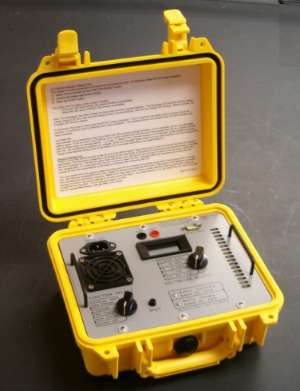

29 Cell NiCad battery charger This universal input (90-280 VAC, 50/60 Hz) power supply board charges a 29 cell battery pack with 1 amp current. It has selectable fast, slow, discharge, and discharge-then-charge functions.
........................................................................

For DC DC converters from PowerStream click here:More DC/DC Converters

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

. Model : PST-DCUPS-30 Multiple output AC input DC power supply with battery backup, a DC UPS board level product.

Model Number PST-NiCad29 Portable 29 Cell Battery Charger
Input Voltage Range 84-264 VAC 50/60 Hz
Battery packs charged Packs between 26 and 32 cells can be charged with this. Customization is available for other configurations
Peak Output Current 1 amp nominal during bulk charge
Termination method - delta V
Features Fast Charge
Slow Charge
Discharge to 1 volt per cell for conditioning
Discharge then recharge function
Built-in voltmeter for battery pack diagnosis
Customizable This custom product can be redesigned to your requirements
Dimensions
