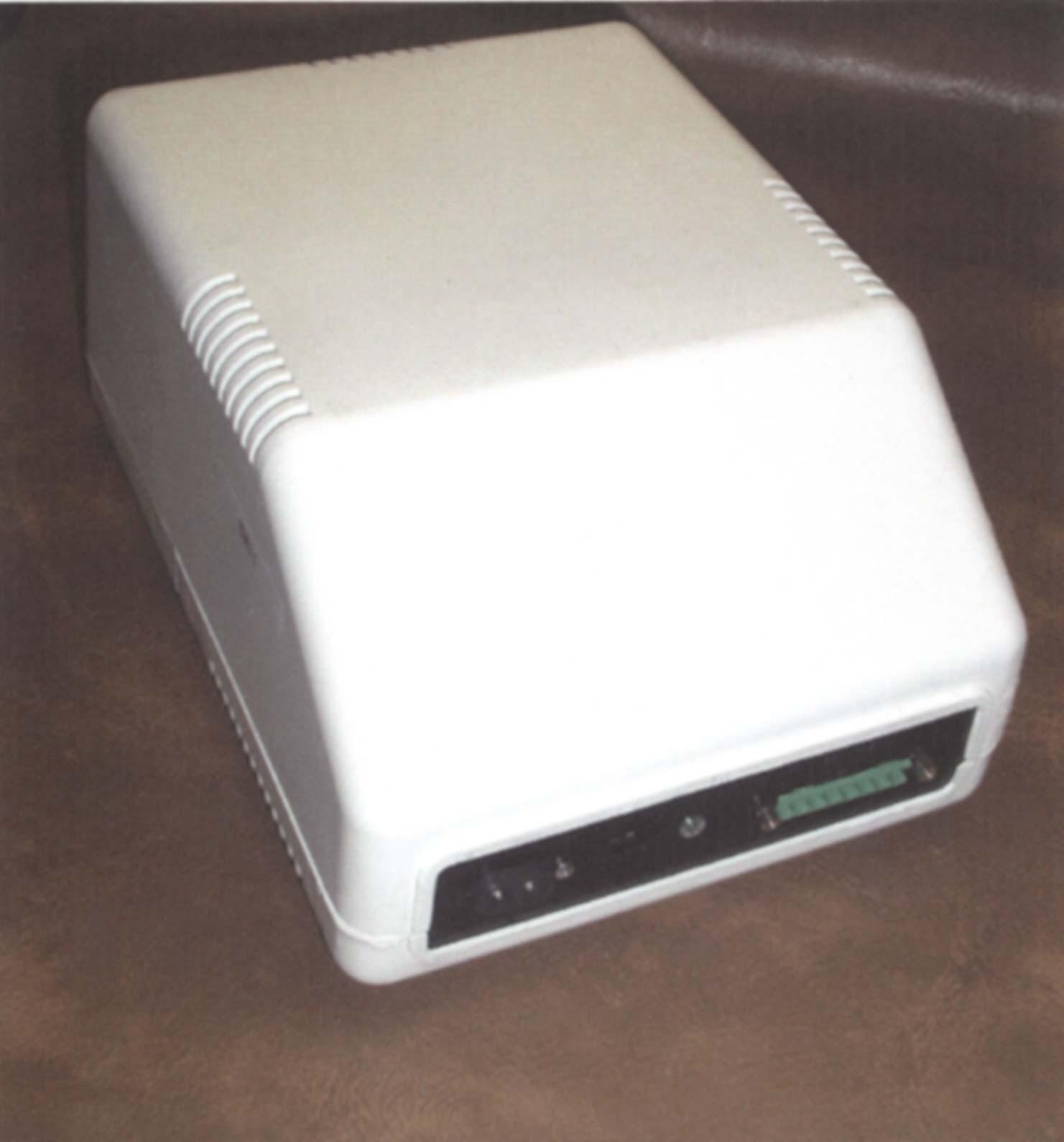

Uninteruptable
Power Supply with Zero Transfer Time, -48 VDC Output |
|
 |
|
|
For more 48 volt
products from PowerStream click here:
Custom design and manufacture of
state-of-the-art battery chargers, UPS, and power supplies
This UPS technology was designed for a wide variety of power backup
requirements used in the telecommunications, computer, avionics, and military
industries. An affordable solution that makes backup power a reality for any
application. This technology can be adapted for the specific needs of the OEM
customer. Our modular design approach will allow quick development of custom
output voltage and power.
 Universal
input that can be powered throughout the world with one design
Double conversion with zero
transfer time
Optional power factor
capability
High Frequency Switching
technology
Absolute surge and spike
protection where power irregularities cannot penetrate
Low power losses for maximum
efficiency
Provides reliable blackout,
brownout, spike, and noise protection
Form factor can be designed to
OEM requirements
Specification
for DC Output UPS
| Input Frequency: |
DC to 500 Hz (including DC, 60 Hz, 50
Hz, 400 Hz) |
| Input Voltage: |
84 V to 275 V AC or DC |
| Output Current: |
-.75 Nom, 1.2 A Max (with current
limit) |
| Output Voltage: |
-48 VDC |
| Backup Run Time: |
5 hours typical |
| Battery Type |
12VDC 12A/hr sealed Lead Gel
Cell |
Features
| Battery Fault
Detection |
| Output Overcurrent
Protected |
| Dimensions 10" x 7.25" x
5" |
| Dimensions 25 cm x 18 cm
x 13 cm |
| Weight 16.6 lbs, 7.5 kg
including battery |
| Meets FCC Class B, part
15 requirements |
| UL, CE, CUL, CB Report
for all countries |
Output Connector
J1
| Pin 8 |
-48 volts |
| Pin 7 |
-48 volt return |
| Pin 6 |
battery negative |
| Pin 5 |
low = ac volts present, high = ac not
present |
| Pin 4 |
low = battery OK, high = battery defective |
| Pin 3 |
battery positive |
| Pin 2 |
shield |
| Pin 1 |
battery ground--should be connected to pin 6 in
connector |
