Tektronix™ Battery Pack replacement Intelligent Module PST- 25-005GF Click here for a better view Galactic Power
4 amp, 16-24 cell battery charger
More NiMH and NiCad Chargers

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a Hurry!

NiCad NiMH Battery Pack Charger 4-12 cell packs 4 amp, 10-24 cell battery charger Wall mount chargers 3 cell to 12 cell versions
1 to 1.5 amp off-the-shelf charger for 4 to 12 cell NiMH and NiCad batteries This page:4 amp off-the-shelf for 10 to 24 cell NiMH and NiCad battery packs Wall Mount 1 Amp Consumer style NiMH/NiCad Chargers

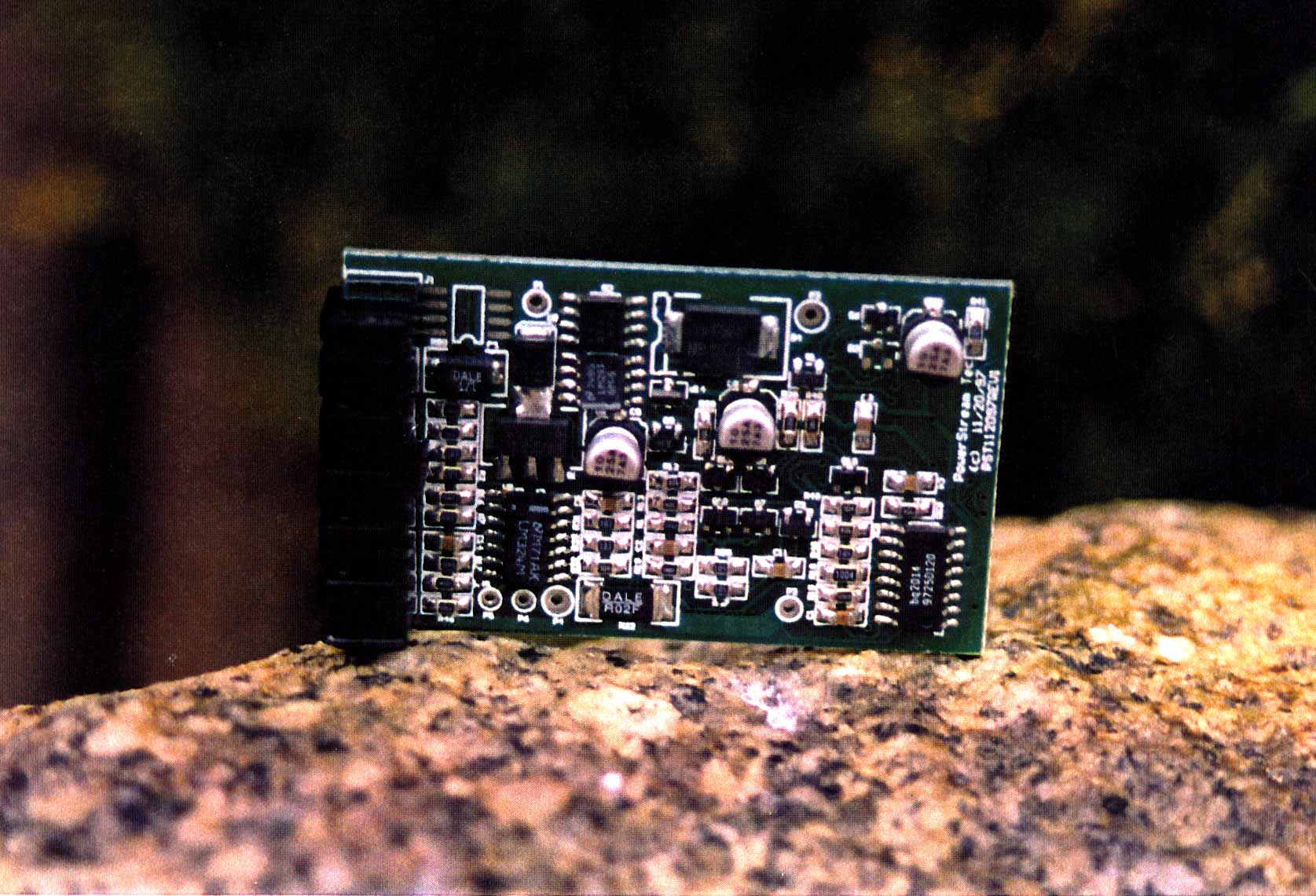

This is a custom designed battery pack monitor and charging board for 12 VDC, NiCad, 4.4 AH, 10 cell battery pack.

It is used in the battery packs for Tektronics oscilloscopes. The markings on the board are 25-005-GF and S168.

Note: when rebuilding a Tektronix battery pack make sure all the cells are good, none are shorted, and that they are all at the same state of charge. Discharging to 1 volt per cell is an easy way to do this, or fully charge them.

The main failure mechanism for these boards is that one cell will be shorted or flat and the power control transistor burns out because it is dropping more voltage than it is designed for.
 Model Chemistry Number of Cells this board manages Price
PST-25-005GF NiMH or NiCad 10 cells $75.00
add_to_cart.gif view_cart.gif
This module is a drop-in replacement for
250-005 250-005A 250-005AF 250-005B 250-00BF
250-005C 250-005CF 250-005D 250-005DF 250-005E
250-005EF 250-005F 250-005FF 250-005G 250-005GF
