Dual Output DC to DC Converter (12VDC to +135VDC, -35VDC) Obsolete

For more DC/DC converters from PowerStream click here: More DC/DC Converters

24 volt to 12 volt DC/DC Converters Automobile to Laptop DC power supply Power Supplies from PowerStream Click here for Engineering Resources
Catalog Page of more DC-DC Converters Consumer Style DC/DC Converters Power Supplies More Engineering Resources

Multioutput DC to DC Converter modules

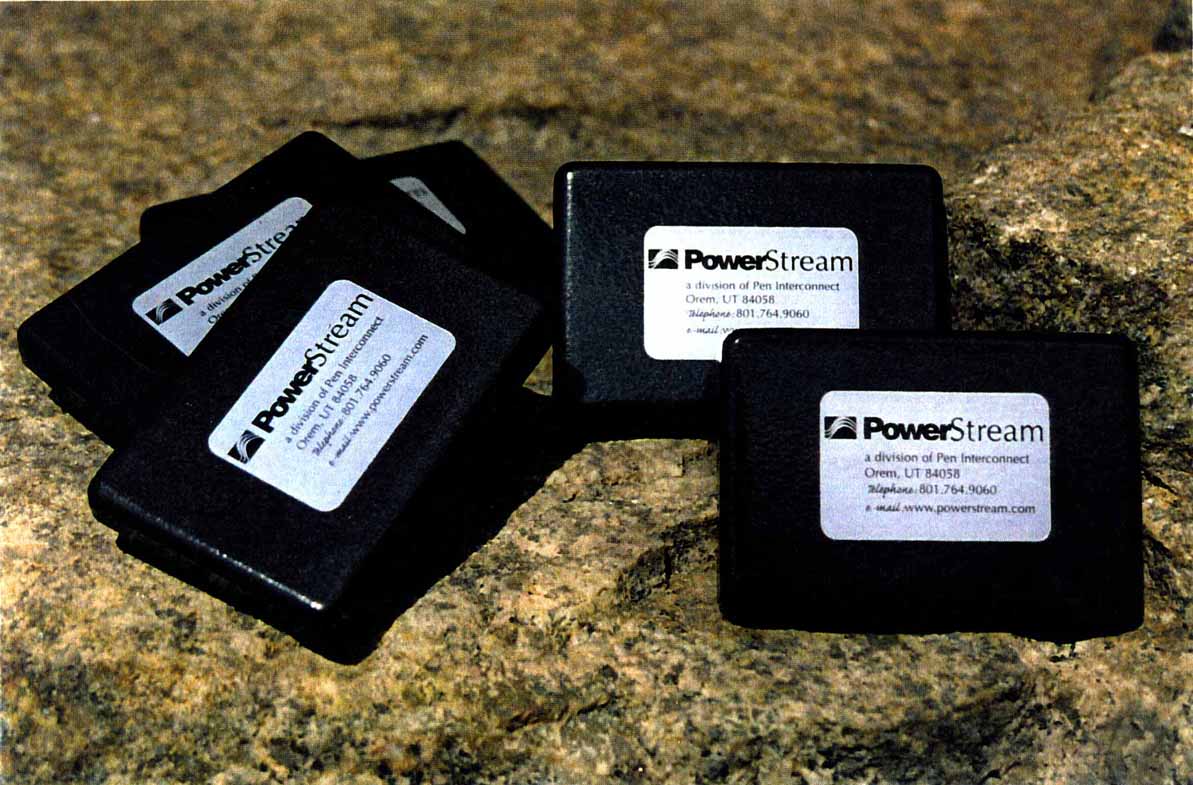

Custom designed, high efficiency, modular power converter. This converter is self-contained and sealed into a nickel silver alloy enclosure. This DC to DC converter consists of a hybrid of surface mount and through-hole technology. It features a low profile of 0.4" (1 cm) and is the thinnest converter of its kind available on the market. This design can be used for military, industrial and medical applications.

Dual output DC to DC converter
High efficiency (80%)
Self Contained and hermetically sealed
Surface mount technology
1% line/load regulation
Temperature range: -35C to +85C
Meets FCC Class B, Part 15 requirements
Low profile DC to DC converter

Form factor and packaging can be designed to OEM requirements

Following is a custom modification of this technology for a night vision application:

DC to DC Converter Specifications
Input Voltage: 12 VDC
Output Voltage: +135 VDC, -35 VDC
Output Current: 100 mA typical to 400 mA Max
Dimensions 2"x3"x0.4" (5 cm x 7.6 cm x 1 cm)
