Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies

Click here for a better view

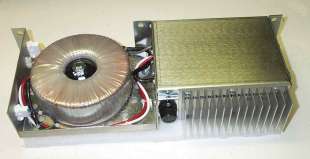

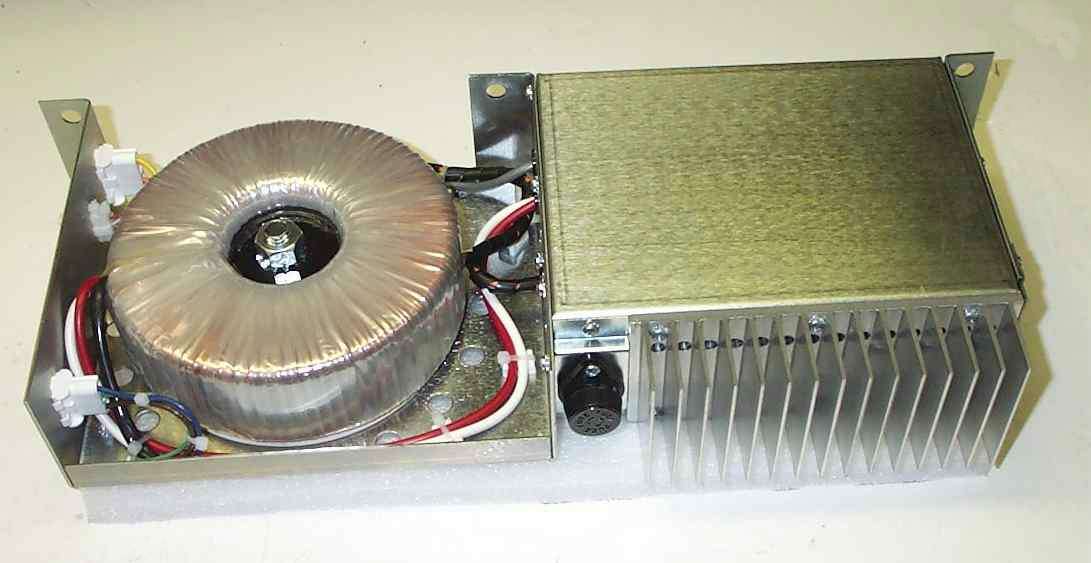

Charger for a 500 Volt Hawker Battery Pack.

If a battery needs to be moved around on a pallet, is it still called a "battery pack?" This monster battery is used to start something big, because they draw as much as 20,000 watts from it for up to 15 seconds. Our charger is custom all the way, the input is 270 volts single phase, it uses temperature compensated charging, and maximum 1 amp current for up to six hours. A microprocessor adjusts the charge algorithm for temperature and also simulates an temperature probe signal to let the customer's system know what the battery temperature is.

We thought you would like to see something TOTALLY DIFFERENT.

Detailed Specifications
Input 270 VAC 50/60 Hz
Number of Batteries 1
Charging Algorithm CC/CV
Nominal Battery Voltage 500 Volts
Termination Current mA
Max Charge Current 1 Amp Amps
Charging Temperature 0 to 40 Degrees C
Charging Time Up to 8 Hours
Total Charging Power 600 Watts
