UPS Designed for Extreme Temperatures

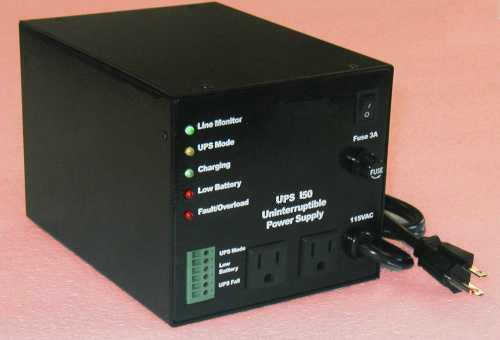

Extreme temperature UPS
This is a UPS designed for use in an outdoor cabinet.

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!


This a specialized UPS, designed for temperature extremes and dry-contact annunciation.

Quantity Price
PST-XUPS-150 extreme temperature UPS without battery This product is no longer available, sorry

Specifications:

OEM Battery Chargers 150 Watts continuous (20 minutes with 8 AH 12 V battery, others available)

OEM Battery Chargers Operating temperature -36 °F to +176 °F (-34 °C to +80 °C) (note for every 10 degrees C above 25 the battery life is cut in half)

OEM Power Supplies Relative Humidity up to 95 % non-condensing.

OEM Power Supplies Dimensions 5.5 x 6 x 8.0 inches (140 x 152 x 203 mm).

Universal Power Input OEM Power Supplies and OEM Battery Chargers Transfer time 5 mS.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Batteries used: Cyclon severe service lead acid, or BB sealed lead acid. The battery is external to the UPS.

Universal Power Input OEM Power Supplies and OEM Battery ChargersWeight: 11 lbs/5 kg with 8 AH lead acid

Universal Power Input OEM Power Supplies and OEM Battery Chargers Input/output voltage 115 VAC @ 60 Hz

Universal Power Input OEM Power Supplies and OEM Battery Chargers Failsafe bypass: Reconnects to line if UPS fails or is overloaded

Universal Power Input OEM Power Supplies and OEM Battery ChargersWaveform: Sinewave on-line, modified step-wave on inverter.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Indicators: Line monitor, UPS mode, Charging, Low battery, Fault/Overload (failsafe bypass)

Universal Power Input OEM Power Supplies and OEM Battery Chargers Annunciation: Dry contact terminals for UPS Mode, Low Battery, and UPS Fail.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Housing: Steel box.

Universal Power Input OEM Power Supplies and OEM Battery Chargers For highest reliability this is a standby UPS--the power components are not exercised unless the AC power fails.
