5 VDC, 2000 mA
and 12VDC 1500 mA dual output Switchmode desk top Power Supply |
|

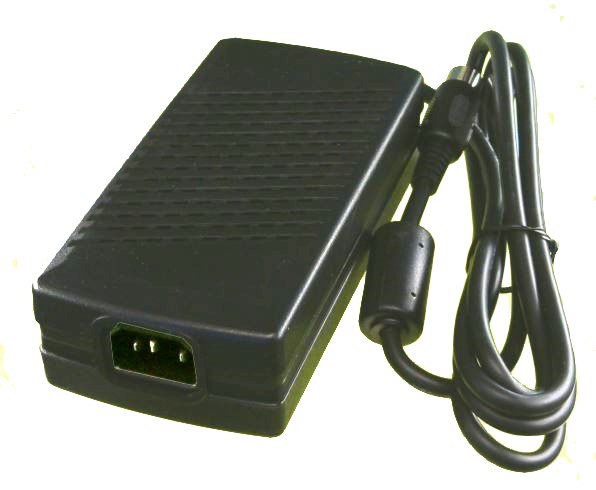

5V and 12V DC desktop Universal AC regulated power supply. |
|
|

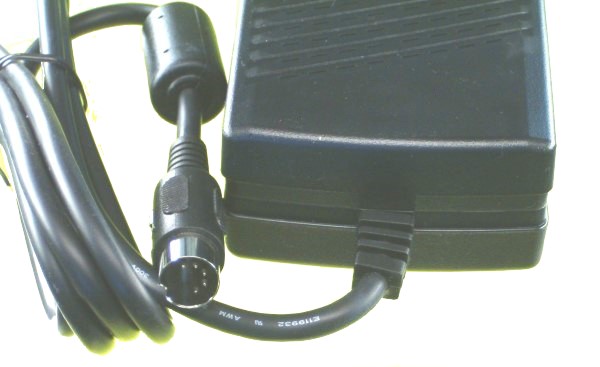

This is a compact, high quality, 12V and 5V switchmode
regulated power supply, 28 watts continuous with an IEC C13 three prong AC connector.
The unit comes with the power cord as priced.
Prices
| Quantity |
1-10 |
11-50 |
Price PST-AC05-12
including USA 3 pin power cord |
This product is
now obsolete, sorry |
Closeout, when
the stock is gone no more will be available. |
| Part Number |
PST-AC05-12 (equivalent
to 50-24000-012) |
| Parameter |
Data |
| Output 1 |
5 Volts DC |
| |
2A (2000 mA) |
| Output 2 |
12 Volts DC |
| |
1.5A (1500 mA) |
| Output Power |
28 Watts max |
| Input Voltage |
100-240 VAC, 47-63 Hz |
| Input Frequency |
47-63 Hz |
| Temperature |
0° to 40° C Operating |
| Size |
Approximately 40 x 75 x 150 mm
(1.6 x 3
x 6 inches) |
| Weight |
11.6 oz (330 gms) without AC cord,
|
| Agency Approvals |
CE, UL, TUV, GS, CSA, Class 2, ITE, double
insulated, indoor use |
| |
Manufactured in Taiwan |
| Polarity |
Center Positive |

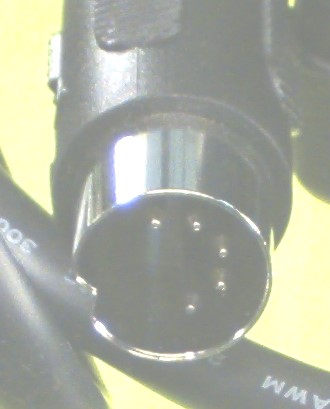

| Output connector |
5 PIN DIN, pin assignments on label, +5,
+12, Common, NC, Common (clockwise looking into connector)
 |
| Output cord |
Coaxial 5mm cord, rugged use 6 feet
long |
| AC plug |
Removable IEC C13 connector makes it easy
to use international mains cords. |
Advantages:
Universal input switchmode power supply with fixed 5V and 12V volt
output voltage.
High efficiency PC power supply for
digital cameras and telecom use.
Excellent line and load regulation. |
|
|
|
|
|
