Genuine EDAC 12 volt 10.8 Amp (130 watt) Regulated Switching Power Supply

12 volt 4.1 amp switching power supply This inexpensive first quality AC/DC switching power supply adapter is fully regulated and useful for any application requiring UL/CUL/CE/ROHS/CEC approval and 120 Watts or less


Model : PST-EA11203 12V through 24V AC/DC Switching Power Supply for Cooler, Car Appliances, printers, POS terminals, mini-ITX computers and other applications.

Description : For complete data sheet see the bottom of the page. Special Features : - - Fully regulated, low ripple - Light weight & compact - Short circuit protection - Automatic thermal cut off - Automatic overload cut off Group : Adaptor Type : Switching Power Supply Approval : UL/CUL, TUV, CE, CB, PSE, ROHS, WEEE, CCC. These are CEC California Energy Commision compliant.
New: we now supply 15V, 16V, 18V, 19V, and 24V versions of the EA11203, EA11203A and EA11203B
AC/DC ADAPTER
EA11203-50 20V/6A 4PIN DIN, 1500mm, 2Core(P1/P2 +, P3/P4/Shield - ) 4 pin din connector $98.50
EA11203-51 19V/6.3A 5.5x2.5x12mm Barrel connectors come in different sizes $98.50
EA11203-52 19V/6.3A <4.75x1.75x11mm, (CB) Barrel connectors come in different sizes $98.50
EA11203-53 19V/6.3A 6.5x1.4x11mm Barrel connectors come in different sizes $98.50
EA11203-54 19V/6.3A 5.5x2.1x11mm Barrel connectors come in different sizes $98.50
EA11203-55 19V/6.3A 5.5x1.0x11mm, C-Pin $98.50
EA11203-56 20V/6A 6.5x1.4x11mm Barrel connectors come in different sizes $98.50
EA11203-57 19V/6.3A 6.3x3.0x11mm Barrel connectors come in different sizes $98.50
EA11203-58 20V/6.5A(130W) 4PIN DIN, 1500mm,
Customer must specify pin connections
4 pin din connector $98.50
EA11203-59 20V/6.5A(130W) 5.5x2.5x11mm, 90° 90 degree barrel connector $98.50
EA11203-60 20V/6.5A(130W) 7.4x0.6x13mm Barrel connectors come in different sizes $98.50
EA11203-61 20V/6A 3PIN (Aligator)   $98.50
EA11203-62 20V/6A 5.5x2.5x11mm, 90deg 90 degree barrel connector $98.50

EA11203-64 19V/6.3A 5.5x2.1x12mm Barrel connectors come in different sizes $98.50
EA11203-65 20V/6A DELL connector 130W   $98.50
EA11203-66 20V/6A 5.5x2.5x9.2mm, 3 Steps   $98.50

AC/DC ADAPTER
MODEL SPEC.
EA11203A-50 15V/6A 6.3x3.0x11mm Barrel connectors come in different sizes $98.50
EA11203A-51 16V/7.5A 5.5x2.5x11mm Barrel connectors come in different sizes $98.50
EA11203A-52 12V/8.5A 4PIN DIN, 1500mm cord length. Customer must specify the pin connections 4 pin din connector $98.50
EA11203A-53 12V/8.5A 5.5x2.5x11mm Barrel connectors come in different sizes $98.50
EA11203A-54 12V/8.5A 5.5x2.1x11mm Barrel connectors come in different sizes $98.50
EA11203A-55 15V/8A IBM 4PIN   $98.50
EA11203A-56 12V/8.5A 4PIN DIN (L=16.5cm from Ferrite to connectorP1/P2 +, P3/P4/Shield - 4 pin din connector $98.50
EA11203A-57 12V/8.5A 4PIN DIN, 1500mm (R/Shield:-, L:+) 4 pin din connector $98.50
EA11203A-58 12V/8-8.5A stripped and tinned (2 wires)   $98.50

EA11203A-60 16V/7.5A 4PIN FEMALE CONN IBM   $98.50
EA11203A-61 15V/7.33A stripped 10mm and tinned 5mm   $98.50
AC/DC ADAPTER
MODEL SPEC.
EA11203B-50 24V/5A 5.5x2.1x11mm Barrel connectors come in different sizes $98.50
EA11203B-51 18V/7A 4PIN DIN, customer must specify pin connections 4 pin din connector $98.50
EA11203B-52 24V/5A 5.5x2.5x11mm Barrel connectors come in different sizes $98.50
EA11203B-53 24V/5A 4PIN DIN, customer must specify pin connections 4 pin din connector $98.50
EA11203B-54 19.5V/6.3A Interchangeable 2 pin connector   $98.50
EA11203B-57 24V/5A 5.5x2.5x10 with screw   $98.50


Model Number PST-EA11203 Switching Power Supply
Input Voltage Range 90-264 VAC 50/60 (47 to 63) Hz
Peak Output Power EA11203 120 Watts, EA11203A 110W, EA11203B 120W, 140 watts surge
Line Regulation 1% Maximum
Load Regulation ±5 % over rated current
Active PFC Yes
Efficiency >82% over full range of input and output
Ripple and Noise 2% Maximum
Output Voltage Factory set 12 VDC, 15 VDC, 16 VDC, 18 VDC, 19 VDC, 19.5 VDC, 20 VDC, 24 VDC
Protections Over Voltage Protection, Over Current Protection, Auto Recovery
Output Cable AWG 14 wire cable 120mm long
Input Connector IEC320 C6 or IEC C13, Class I input socket allows cords for any country to be used, the North American cord is included.
Dimensions 170 x 60 x 35 mm (6.7 inch x 2.4 inch x 1.4 inch)
Temperature 0 to 40°C operating, -20 to 85°C storage
MTBF 30,000 hours
Weight 510 grams, 1.1 pounds
Cooling Fan cooled, the fan comes on only when necessary, so it will cycle on and off as needed
Approvals UL/CUL, TUV, CE, CB, CCC, EK, PSE, ROHS, WEEE, CEC compliant

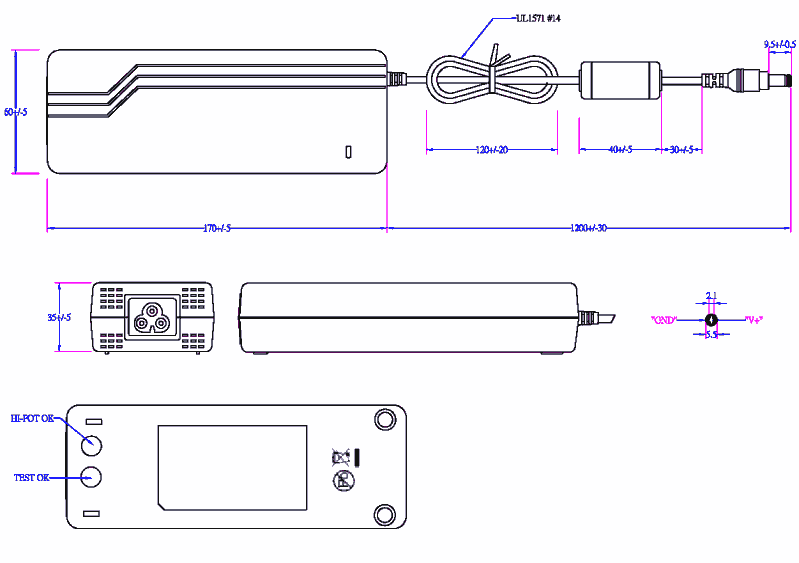

drawing of the EA11203

Advantages:

OEM Battery Chargers Inexpensive switchmode AC switching power supply AC/ DC converter.

OEM Battery Chargers Inexpensive fully regulated power supply with IEC input and

OEM Power Supplies Efficiency >85%, depending on input voltage, and output power.
