12VDC and 24VDC Input Electronic ballasts for fluorescent lamps

24VAC input electronic ballast 24VAC input electronic ballast for fluorescent lights
DC input electronic ballast

These high efficiency ballasts are for 20 and 40 watt fluorescent light fixtures in cars, RVs, boats, and solar systems.

Applications also include display lighting in ice cream trucks, ambulances, buses, commercial vans, and subways.

PST-EB20S12
One 20W bulb, 12V input
The single bulb version is not available at this time, sorry.
PST-EB20D12
Two 20W bulbs 12V input
Quantity 1-10 11-50 51-100 101+
Price $34.50 $27.90 $24.90 $19.95
PST-EB40S12
One 40W bulb, 12V input
Quantity 1-10 11-50 51-100 101+
Price $34.50 $27.90 $24.90 $19.95
PST-EB20S24
One 20W bulb, 24V input
Quantity 1-10 11-50 51-100 101+
Price $29.50 $24.90 $23.95 $19.10
PST-EB20D24
Two 20W bulbs, 24V input
Quantity 1-10 11-50 51-100 101+
Price $34.50 $27.90 $24.90 $19.95
PST-EB40S24
One 40W bulb, 24V input
Quantity 1-10 11-50 51-100 101+
Price $34.50 $27.90 $24.90 $19.95
PST-EB40S24AC
One 40W bulb, 24VAC input
Quantity 1-10 11-50 51-100 101+
Price $34.00 $27.50 $24.90 $19.00

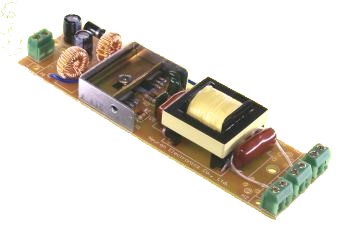

This is a compact, high efficiency, switchmode regulated electronic ballast for use when DC supply voltage is available. This is useful for RVs, boats, solar power installations, green light fishing, and wherever 12VDC or 24VDC is available for lighting. This is an inverter-style ballast that uses high frequency to eliminate the flicker which is seen in AC powered ballasts.


EB series DC/DC ballasts are designed for traditional fluorescent tube with heating filaments at both ends, but the filaments are not necessary, so the tube will light even if the filaments are burned out. Once the power is applied and the tube will light immediately without flicking. They are not suitable for cold cathode lamp/tube without filaments.

Prices
.Specifications
PST-EB20S12 PST-EB20D12 PST-EB40S12 PST-EB20S24 PST-EB20D24 PST-EB40S24
GENERAL SPECIFICATIONS
Size 140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
140 x 40 x 25 mm
5.5 x 1.6 x 1 inch
Weight: 85 grams
3 oz
85 grams
3 oz
85 grams
3 oz
85 grams
3 oz
85 grams
3 oz
85 grams
3 oz
Cooling: natural convection natural convection natural convection natural convection natural convection natural convection
INPUT SPECIFICATION
Input Voltage: 10-15 VDC 10-15 VDC 10-15 VDC 20-30 VDC 20-30 VDC 20-30 VDC
Input Current 1.3-1.8 Amps 1.8-2.2 Amps 1.8-2.2 Amps 0.8-1.0 Amps 1.0-1.2 Amps 1.0-1.2 Amps
Input Connector: Captive screw terminals Captive screw terminals Captive screw terminals Captive screw terminals Captive screw terminals Captive screw terminals
OUTPUT SPECIFICATION
Drives lamp type T5/T8/T12 Single T5/T8/T12 Double T5/T8/T12 Single T5/T8/T12 Single T5/T8/T12 Double T5/T8/T12 Single
Lamp power 15-22 watts 15-22 watts 30-40 watts 15-22 watts 15-22 watts each 30-40 watts
Output Frequency 25-30 kHz 25-30 kHz 25-30 kHz 25-30 kHz 25-30 kHz 25-30 kHz
Efficiency >90% typical >90% typical >90% typical >90% typical >90% typical >90% typical
Output Connection screw terminals screw terminals screw terminals screw terminals screw terminals screw terminals
Design features MOSFET Switching
Socket These ballasts require the NON-SHUNTED socket and 4-pin bulbs
Note: These ballasts are not suitable for running in parallel or series in order to run larger bulbs.

24 volt and 12 volt ballasts for fluorescent lamps
hookup diagram for electronic ballast
Click the image to see a larger diagram of the ballast hookup



dimensioned drawing of the 24VAC input fluorescent ballast

Unusual operating conditions.

The EB20D24 was tested under unusual input voltage conditions with the following results:
Bulb 2x 32W 24 inch bulbs
Input voltage Power consumed
15V 4.5 W Bulb lit dimly
20V 27 W
25V 40W
30V 51W
35V 65W

Advantages:

OEM Battery Chargers DC input switchmode electronic ballast with 12 or 24 volt input.

OEM Battery Chargers High efficiency miniature ballast for solar and RV applications.

OEM Power Supplies Can be used with a low voltage power supply for aquariums for added safety.
