These are fully regulated
switchmode power converters, designed
to allow the use of 12 volt equipment
(or 24V equipment) in 72 volt trains.
These are attractive, reliable, robust
DC/DC converters good for locomotives,
trams, golf carts, electric vehicles
and power stations. They are typically
used to power laptop computers, cell
phones, search lights, radios, wherever
rugged 12VDC is required. They are
ultra quiet, both in the input and
noise fed back into the
input.
To determine the amperage
you need just add up the watts of all
the equipment and divide by 13.6 volts
(or 27.2 volts).
These converters
have common negative, so they are not
fully isolated, but can be used for
almost all 12 volt applications. Fully
isolated versions are available.

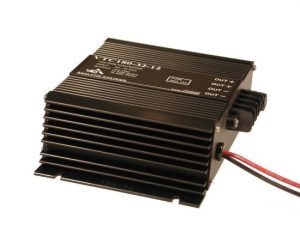

| DC-DC
Converters |
Heavy
Duty
15 Amp
DC to DC Converter
with 12V output
 |
Heavy
Duty
7.5 Amp
DC to DC Converter
with 24V output
|
Part Number
and
Price |
PVTC180-72-12
$437.00
Allow
up to 2 weeks days for shipping
|
PVTC180-72-24
$437.00
Allow
up to 2 weeks days for shipping
|
| 65 to 100VDC Input Voltage)
Input Voltage |
| Max Input
current at No Load |
mA |
| Output
Voltage |
13.6 VDC (12V available,
specify when ordering) |
27.2 VDC (24V available,
specify when ordering) |
| Max
Output Current(s) |
18 Amps
10 minutes
maximum |
9Amps
10 minutes
maximum |
| Max
Output Power |
245 watts |
245W |
| Max
Output Power (continuous) |
204 Watts
(15
Amps) |
204Watts
(7.5
Amps) |
| Output
current limit? |
Yes |
Yes |
| Operating
Temperature Range |
-20°C to
+40°C |
| Derating |
2.5% per °C up to
+50°C |
| Efficiency at full
power |
>90 % |
| Line
Regulation |
<±0.5% |
| Load
Regulation |
<±0.5% |
| Switching
frequency |
kHz |
| Output
ripple noise |
<10 mV rms |
| Noise
inserted on the input terminals |
<10 mV rms |
| Isolation |
Common negative
>1500
volts isolation from case to any
terminal |
| Remote
power on/off |
No |
| Input
Fuse |
5A MDA |
| Connections |
Screw terminals |
| Protection |
Output Over Voltage , Over
Current, Short Circuit , Reverse
Polarity , Over Load |
| Dimensions |
201 x 152 x
61 mm
(7.9 x
6 x 2.4 inches) |

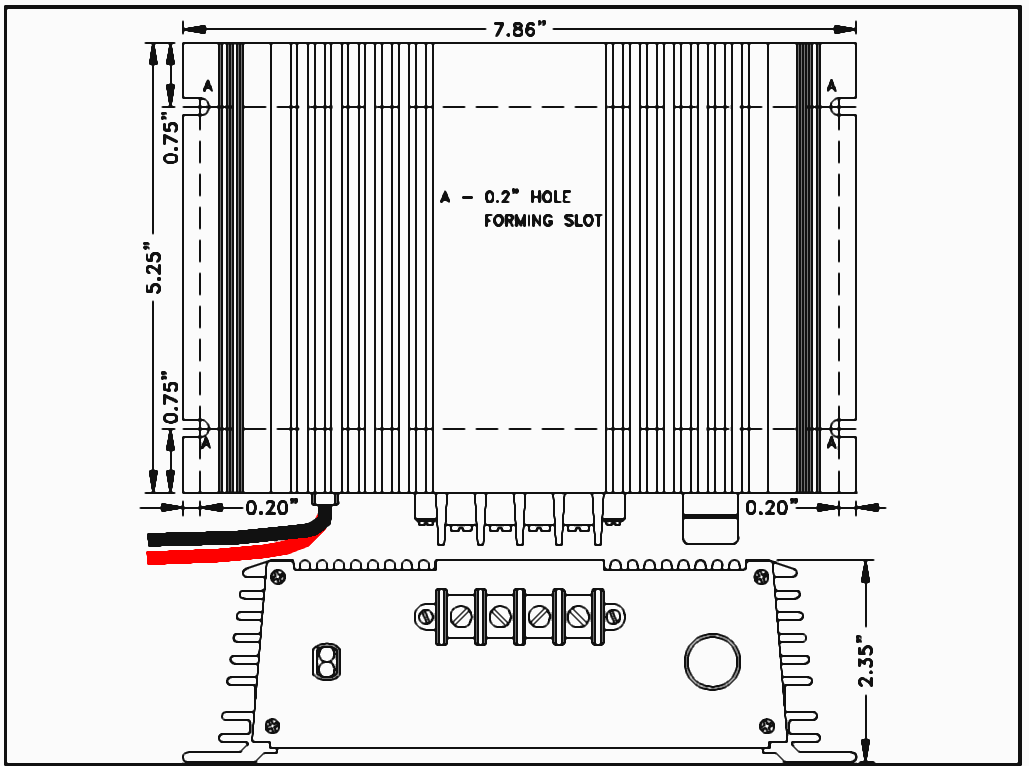

| Drawings |
Click Here for Drawing
|
| Weight |
1.8Kg (4
lbs) |
| Audible
Noise |
None |
| Cooling |
Convection, no fan |
| Warranty |
3 years |
Advantages:
DC/DC switcher design 72 v input 12
v output 15 amp, 72v input 24v output
7.5A
High
efficiency
Excellent line and load
regulation
Wide input voltage range suitable
for 72 volt trains, street cars,
experimental cars, trams and
locomotives |
