Large Buck-Boost DC/DC Converters |
|
| |
| |
|

|
High power 12 volt to 6 volt, 12 volt to 12 volt, 24
to 24 volt, and 24 to 19 volt DC/DC Buck-Boost converters at low cost. Suitable
for voltage stabilization of automobile electronics, special purpose UPS,
etc. |
 |
|
For a complete range of DC/DC converters from PowerStream click
here:
Custom design and manufacture of
state-of-the-art battery chargers, UPS, and power supplies for OEMs in a
hurry!
Retail or Wholesale, and
Online sales

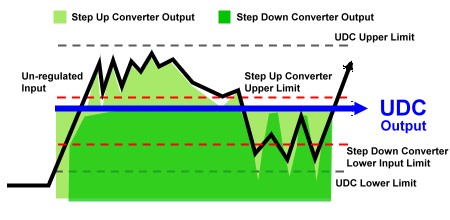

These are Buck-Boost
DC/DC Converters. Buck-boost means that the topology will alow the DC input
voltage to be higher or lower than the output voltage, which makes the design
very flexible for semi-custom designs. For example, you can specify a factory
set output voltage from 13.8 to 24 volts with a minimum order of 10 pieces.
Motors: Running
motors from these units will void the warranty.
| Model Number |
PST-DC/1260-11 |
PST-DC/2812-8 (replaces
PST-DC/1212-8) |
Out of stock
until late April 2008PST-DC/2419-5 |
PST-DC2424-4 |
| Input Voltage Range |
10V - 15V DC (Nominal 12VDC) |
10V - 30V DC for both 12
volt and 24 volt |
18-30 VDC (10.5 - 30V DC easily
available on request.) Nominal 24V DC |
18-30 VDC (10.5 - 30V DC easily
available on request.) (Nominal 24V DC) |
| Output Voltage |
6 volts |
12 volts (inquire for custom
voltage) |
19 volts (inquire for custom
voltage) |
24 volts (inquire for custom
voltage) |
| Output Voltage Adjustment
Range |
5.5 to 6.5 volts by internal
pot |
11 volts to 13.9 volts by internal
pot VR2 (near C2) |
16.2 to 22 by internal pot VR2
(near C2) |
21.4-28.4 by internal pot VR2
(near C2) |
| Continuous Current at nominal
voltage |
11 Amps |
8 Amps |
5 Amps |
4 Amps |
| Continuous Output Power |
100 Watts |
100 Watts |
100 Watts |
100 Watts |
| Peak Output Power |
120 Watts (case gets
to 60°C at 120 Watts continuous, external cooling can extend) |
| Peak Output Current |
|
| No-Load Overhead |
<100 mA |
| Line Regulation |
1% |
| Load Regulation |
3% |
| Efficiency |
>75-85% |
| Protection |
(1) Input polarity
protection. \ (2) Input low voltage drop out [power off reset] (3) Input
high voltage protection [power off reset] (4) Output short circuit
protection [auto reset (5) Output current limit [auto resume] (6) Over
temperature protection [power off reset] |
| Dimensions |
300mm x 88mm x 42mm (L
x W xH) (11.8 in x 3.5 in x 1.7 in) See drawing |
| Drawing |
Click Here for Drawing |
| Weight |
1.5 kg, 3.3 pounds
|
| Temperature Range |
0-55°C |
| Connections |
Input & Output
Binding Posts (Red: + ; Black -) |
| Price/Quantity |
1-10 |
11-100 |
101-500 |
501+ |
PST-DC/1260-11 12/6 volt
DC/DC regulator |
$144.76
|
$127.05
|
$86.79 |
$81.07 |
PST-DC/2812-8 (formerly
PST/DC1212-8) 12/12 volt DC/DC regulator |
$144.76
|
$127.05
|
$86.79
 |
$81.07
 |
| PST-DC/2419-5 24/19 volt DC/DC
converter |
$144.76
|
$127.05
|
$86.79
 |
$81.07
 |
| PST-DC/2424-4 24/24 volt DC/DC
regulator |
$144.76
|
$127.05
|
$86.79
 |
$81.07
 |
Advantages:

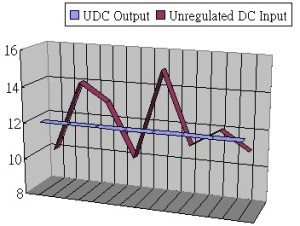

- Designed for converting an unregulated/unstable dc
voltage to a regulated dc voltage.
- Suitable for marine and automotive applications
- Isolated with input and output common ground
- Good load and line regulations
- Wide input voltage input range
- Fully electrical protected
- Anodized blue colour aluminium extrusion
housing
Inexpensive high current
DC/DC converter stabilizes voltage in automotive and truck applications.
Also can be used to
provide regulated voltage from a sealed lead acid or other battery--excellent
for special purpose UPS DC battery backups.
High efficiency
75-85%. |
|
|
|
|
|
