Heavy Duty
Industrial and Military Grade 12 volt to 12 volt DC/DC Converters 5 Amp, 120 Watt, Fully
Isolated |
|
| Heavy Duty and Military Grade 12V to 12V DC/DC converters with 3 year
warranty. |
 |
|
| 12V 5Amp Output
this page |
7.5 Amp 13.5V Output
|
|
|
|
These are fully regulated switchmode
power converters, designed to allow the use of sensitive 12 volt equipment in 12V vehicles.
These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road,
military, construction and recreational equipment. They are typically used for military
equipment, PLCs, laser scanners, and wherever rugged 12VDC is required. They are ultra quiet,
both in the input and noise fed back into the input.
To determine the amperage you need
just add up the watts of all the equipment and divide by 12 volts. These converters have
common negative, so they are not fully isolated, but can be used for almost all 12 volt
applications.
| DC-DC Converters |

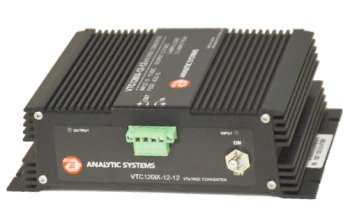

Heavy Duty 5 Amp DC to DC Converter
 |
Marine Grade 5 Amp DC to DC Converter |
Military Grade 5 Amp DC to DC Converter
 |
|
Part Number and
Price |
PVTC120i-12-12 $461
Allow up to 15 days for shipping
|
PVTC120i-12-12-V $530
Allow up to 15 days for shipping
|
PVTC120i-12-12-MIL $599
Allow up to 15 days for shipping
|
Part Number |
| Input Voltage* |
11 to
15VDC |
11 to
15VDC |
11 to
15VDC |
Input Voltage) |
| Max Input current at No
Load |
mA |
mA |
mA |
Max Input current at
No Load |
| Output Voltage |
12
VDC |
12VDC |
12
VDC |
Output Voltage |
| Max Output Current(s) |
5.5
Amps 10 minutes maximum |
5.5
Amps 10 minutes maximum |
5.5
Amps 10 minutes maximum |
Max Output
Current |
| Max Output Power |
66
watts |
66
watts |
66
watts |
Max Output Power (10
Minutes) |
| Max Output Power
(continuous) |
60
Watts (5 Amps) |
60
Watts (5 Amps) |
60Watts (5 Amps) |
Max Output Power
(continuous) |
| Output current limit? |
Yes |
Yes |
Yes |
Output current
limit? |
| Operating Temperature Range |
-25°C to +40°C (-13°F to +104°F) |
-25°C to +40°C (-13°F to +104°F) |
-40°C to +50°C (-40°F to +104°F) |
Operating Temperature
Range |
| Derating |
2.5%
per °C up to +50°C |
2.5%
per °C up to +50°C |
2.5%
per °C up to +85°C |
|
| Efficiency |
>80 % |
>80 % |
>80 % |
Efficiency |
| Line Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Line Regulation |
| Load Regulation |
<±0.5% |
<±0.5% |
<±0.5% |
Load Regulation |
| Switching frequency |
kHz |
kHz |
kHz |
Switching
frequency |
| Output ripple noise |
<10 mV rms |
<10 mV rms |
<10 mV rms |
Output ripple
noise |
| Noise inserted on the input
terminals |
<10 mV rms |
<10 mV rms |
<10 mV rms |
|
| Isolation |
Fully
Isolated >500 volts isolation from input to output and from the case to any terminal |
Fully
Isolated >500 volts isolation from input to output and from the case to any terminal |
Fully
Isolated >500 volts isolation from input to output and from the case to any terminal |
|
| Remote power on/off |
No |
No |
No |
Remote power
on/off |
| Input Fuse |
15A
MDA |
15A
MDA |
15A
MDA |
|
| Connections |
Screw
terminals. |
Screw
terminals |
Screw
terminals |
|
| Protection |
Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over
Load |
Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over
Load |
Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over
Load |
Protection |
| Dimensions |
201 x 152 x 61 (7.9 x 6 x 2.4 inches) |
201 x 152 x 61 (7.9 x 6 x 2.4 inches) |
201 x 152 x 61 (7.9 x 6 x 2.4 inches) |
Dimensions |

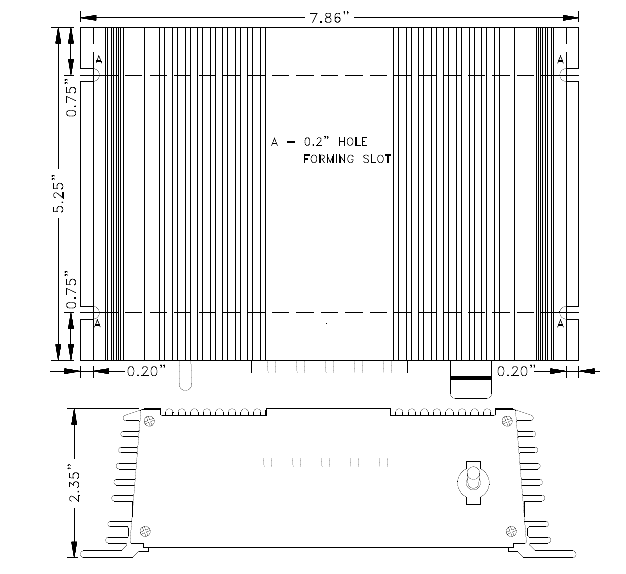

| Drawings |
Click Here for Drawing
|
Click Here for Drawing
|
Click Here for Drawing
|
|
| Weight |
1.1 Kg (2.4 lbs) |
1.1 Kg (2.4 lbs) |
1.1 Kg (2.4 lbs) |
Weight |
| Audible Noise |
None |
None |
None |
|
| Cooling |
Convection, no
fan |
Convection, no
fan |
Convection, no
fan |
|
| Warranty |
3 years |
1 Year |
1 Year |
Additional Features |
*Low input voltage behavior. When the input falls below 11 volts the output
voltage is no longer regulated, but will fall in voltage. At 1 amp output this dropoff starts
when the input voltage is 8.3V. The unit will turn itself off at about 7 volts, and will
automatically turn back on again when the input voltage is restored.
Advantages:
Heavy Duty High
Current Switchmode DC/DC Converters.
High
efficiency.
Excellent line
and load regulation.
Wide input voltage range suitable for 12 volt automotive and vehicle
systems. |
|
|
|
| 1 |
|
