48 volt to 12 volt 15A DC/DC Converters (40V to 65V input)

15 amp heavy duty DC/DC converter 24VDC to 12VDC

High power 48 volt to 12 volt DC/DC converters at reasonable cost. 200 Watts

For more 48 volt products from PowerStream click here:More DC/DC Converters

48V to 12V DC/DC converter, heavy duty industrial, marine and militarized
More Heavy Duty, Marine, and Militarized 48V to 12V converters
.These are high reliability regulated switching power converters, designed to allow the use of 12 volt equipment in 48 volt vehicles. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction and recreational equipment. These are totally sealed, so there is no worry about water, spray, or dust.

To determine the amperage you would need add up the watts of all the equipment and divide by 13.8 volts.

These are also known as 24, 36, or 48 volt voltage reducers, and voltage regulators. They closely regulate the output voltage over a range of input voltages.

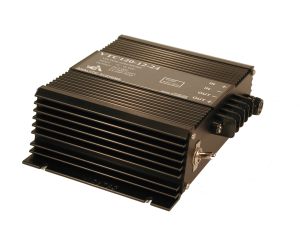

DC-DC Converters Heavy Duty
15 Amp
DC to DC Converter
24V to 12V DC/DC converter, heavy duty industrial
Water Proof
15 Amp
DC to DC Converter24V to 12V DC/DC converter, heavy duty industrial
Military Grade
15 Amp
DC to DC Converter
24V to 12V DC/DC converter, heavy duty industrial
Part Number
and Price
PVTC180-48-12
$437 add_to_cart.gif

Allow up to 15 days for shipping
PVTC180-48-12-WP
$502
Allow up to 15 days for shipping
PVTC180-48-12-MIL
$568
Allow up to 15 days for shipping
Part Number
Input Voltage 40 to 65 Volts DC Input Voltage)
Output Voltage 13.6 VDC
(12V available, ask at time of order)
Output Voltage
Max Output Current(s) 18 Amps
10 minutes maximum
Max Output Current
Max Output Power 245 watts Max Output Power (10 Minutes)
Max Output Power (continuous) 204 Watts
(15 Amps)
Max Output Power (continuous)
Output current limit? Yes Output current limit?
Operating Temperature Range -25°C to +45°C -25°C to +45°C -40°C to +55°C Operating Temperature Range
Derating 2.5% per °C up to +50°C
Efficiency >88 % Efficiency
Line Regulation <±0.5% Line Regulation
Load Regulation <±0.5% Load Regulation
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load Protection
Switching frequency kHz Switching frequency
Noise inserted on the input terminals <10 mV rms
Output ripple noise <10 mV rms Output ripple noise
Remote power on/off No Remote power on/off
Input Fuse 15A MDA
Isolation Common negative
>1500 volts isolation from case to any terminal

Connections Screw terminals
Dimensions 201 x 152 x 61 (7.9 x 6 x 2.4 inches) Dimensions
Drawings Click Here for Drawing
Weight 1.6 Kg (3.5 lbs) Weight
Audible Noise None
Cooling Convection, no fan
Warranty 3 years 1 Year 1 Year Additional Features

Advantages:

OEM Battery Chargers Inexpensive High Current Switchmode DC/DC Converter.

OEM Battery Chargers High efficiency.

OEM Power Supplies Totally sealed for any environment. Good for forklifts and other industrial applications.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range.
