5 volt output DC/DC Converters (Regulators) |
|
| |
| |
|
|
10 Watt 24, 48, and 120 volt to 5 volt DC/DC converters at
low cost. Suitable for voltage stabilization of automobile electronics, special purpose UPS, etc. |
|
For more 48 volt
products from PowerStream click here:
Custom design and manufacture of state-of-the-art battery chargers, UPS,
and power supplies for OEMs in a hurry!
. These DC/DC converters are useful for voltage conversion to operate 5 volt
electronics from unusual power sources, 24, 48, and 120 volts
| Model Number |
PST-DAA2405
$30.75
  |
PST-DAA4805
$30.75
|
PST-DAA1205
2007
$30.75
|
PST-DAA12005
$30.75
|
| Minimum quantity order |
1 pieces |
1 piece |
1 piece |
1 piece |
| |
|
|
|
|
| Input Voltage Range |
18 VDC to 30 VDC Nominal 24 VDC |
36 VDC to 60 VDC
Nominal 48 VDC |
10VDC to 15 VDC
Nominal 12 VDC |
90 VDC to 150 VDC
Nominal 120 VDC |
| Peak Output Power |
10 Watts |
10 Watts |
10 Watts |
10 Watts |
| Peak Output Current |
2 Amps |
2 Amps |
2 Amps |
2 Amps |
| Continuous Current |
2 Amps |
2 Amps |
2 Amps |
2 Amps |
| Continuous Output Power |
10 Watts |
10 Watts |
10 Watts |
10 Watts |
| Output Voltage |
5 volts DC
(4.5 to 10 volts available) |
5 volts DC
(4.5 to 10 volts available) |
5 volts DC
(4.5 to 10 volts available) |
5 volts DC
(4.5 to 10 volts available) |
| Output voltage options |
Optional voltages set in our lab:
4.5V, 4.8V, 5V, 5.5 V
Optional special
order from factory
, 6V, 6.5V, 7.0V, 7.2V, 7.5V, 8V, 8.4V, 9V, 9.6V, 10V |
Optional voltages set in our lab:
4.5V, 4.8V, 5V, 5.5 V
Optional special
order from factory
, 6V, 6.5V, 7.0V, 7.2V, 7.5V, 8V, 8.4V, 9V, 9.6V, 10V |
Optional voltages set in our lab:
4.5V, 4.8V, 5V, 5.5 V
Optional special
order from factory
, 6V, 6.5V, 7.0V, 7.2V, 7.5V, 8V, 8.4V, 9V, 9.6V, 10V |
Optional voltages set in our lab:
4.5V, 4.8V, 5V, 5.5 V
Optional special
order from factory
, 6V, 6.5V, 7.0V, 7.2V, 7.5V, 8V, 8.4V, 9V, 9.6V, 10V |
| No-Load Overhead |
20 mA |
20 mA |
20 mA |
20 mA |
| Load Regulation |
± 3.4% |
± 2.6% |
± 2.6% |
±2.9% |
| Line Regulation |
± 0.3% |
± 0.3% |
± 0.3% |
± 0.3% |
| Efficiency |
>70% at full load |
>75% at full load |
>75% at full load |
>75% at full load |
| Output Ripple |
< 40 mV p-p |
< 40 mV p-p |
< 40 mV p-p |
< 40 mV p-p |
| Topology |
Fully Isolated Buck Converter, case isolated |
| Protections: |
- Input Polarity Protect
- Input Fuse
- Output Current Limited
|
| Temperature |
5 to 45°C (41 to 113°F) |
5 to 45°C (41 to 113°F) |
5 to 45°C (41 to 113°F) |
5 to 45°C (41 to 113°F) |
| Dimensions |
40 x 150 x 44 mm
1.6 x 5.9 x 1.7 inches
Click here for dimensioned drawing |
| Weight |
100 grams, 3.5 oz |
| Input Connection |
Flying wire leads, 16AWG or 18 AWG red and black, RU (UL component
recognized wire) 80°C |
| Output Connection |
Barrel connector 5.5 x 2.1 mm, center positive on a 6 inch SPT-1 18AWG
zip cord |
| |
PST-DAA2405
24V to 5V
(other output voltages are available) |
PST-DAA4805
48V to 5V
(other output voltages are available) |
PST-DAA1205
12V to 5V
(other output voltages are available) |
PST-DAA12005
120VDC to 5V
(other output voltages are available) |
| Price |
$30.75
Quantity pricing
1-10 $30.75
11-100 $25.04
101-500 $16.22
501+ $11.43 |
$30.75
Quantity pricing
1-10 $30.75
11-100 $25.04
101-500 $16.22
501+ $11.43 |
$30.75
Quantity pricing
1-10 $30.75
11-100 $25.04
101-500 $16.22
501+ $11.43 |
PST-DAA12005
$30.75
Quantity pricing
1-10 $30.75
11-100 $25.04
101-500 $16.22
501+ $11.43 |

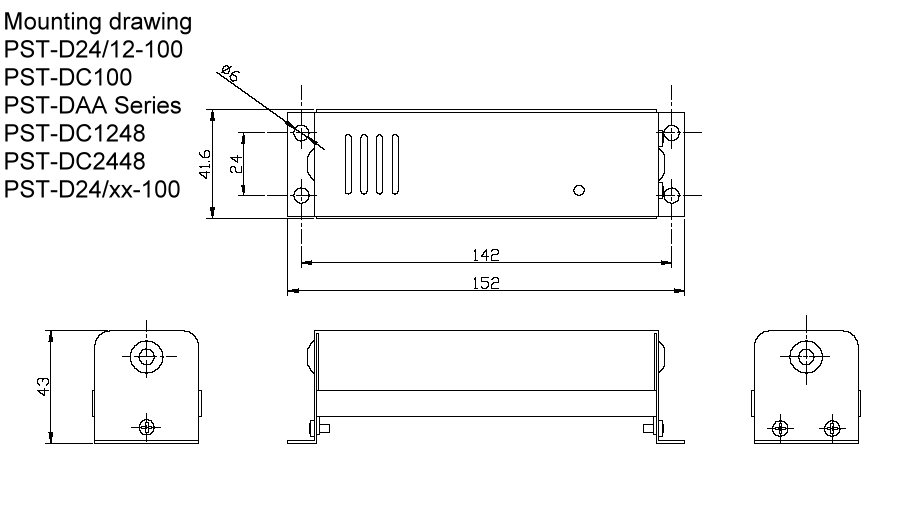

Click here for dimensioned drawing
Advantages:
 Inexpensive high current DC/DC converter stabilizes voltage in
automotive and railroad applications that require 5 volts.
Also can be used to provide regulated 5 volts from a sealed
lead acid battery--excellent for special purpose UPS DC battery backups.
DC input and output LEDs, input fuse protection, input
polarity protection, output current limit. |
|
|
|
|
|
