60 Watt switchmode miniature desktop power
supply |
|
 |
|
Desktop Universal
AC regulated switchmode for applications requiring high efficiency, high reliability or low
weight |
|
|
|
For more power
supply products from PowerStream click here:
.This is a compact, high quality,
switchmode regulated power supply with stable output, 60 watts continuous. It has a removable
AC cord and universal AC input (100VAC to 240VAC).
Specifications
|
|
| GENERAL SPECIFICATIONS |
|
| Safety Compliance: |
Cispr 22’B’,
Vcci’B’, Fcc’B’ Compliance |
| Efficiency |
83-88% depending on input voltage
and power |
| Protections |
Over voltage protection
Short
circuit protection
Auto-recover (hiccough mode) |

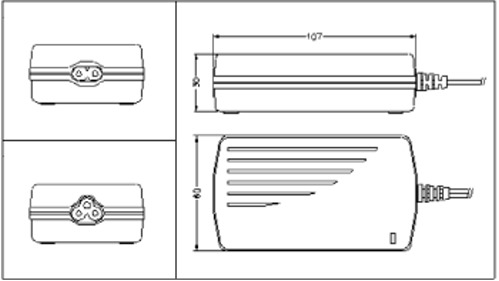

| Size |
52 mm x 31 mm x 109 mm, (2 x 1.2 x 4.3
inches) |
| Weight: |
200 grams, 7.2 ounces |
| Cooling: |
Free air convection |
| Construction: |
Impact resistant thermo-plastic enclosure
case |
| INPUT SPECIFICATION |
|
| Input Voltage: |
Extra wide Input Voltage rating 90-264 VAC
|
| Input Frequency: |
47-63Hz |
| Input Current |
2 Amps maximum |
| Inrush current |
60A maximum |
| Input Connector: |
IEC-320 receptical, 2 prong or 3 prong |
| OUTPUT SPECIFICATION |
|
| Output Voltage: |
9V-24V set at factory |
| Line Regulation |
2% Maximum |
| Load Regulation |
±5% |
| Ripple & Noise |
1% Typical |
| Efficiency |
83%~85% below 18 volts output
87%~88%
Typical above 18 volts output |
| Temperature Coefficient |
0.05%/°C |
| Operating Temperature |
0~40°C |
| Storage Temperature |
-20~85°C |
| Output Current: |
depending on voltage, see table below |
| Output Wattage: |
60 Watts typical (56 watts for voltages below
18 volts) |
| Output Connector: |
See table below |
| Output Cord |
6 foot, 2 conductor 20 AWG |
| Agency Approvals |
UL, CUL, TUV, CE, CB |
EA1060A
