High Power DC/DC
Converters |
|
 |
|
|
Custom design and manufacture of state-of-the-art
battery chargers, UPS, and power supplies for OEMs in a hurry!
 |
| PST-STC481500 |
High efficiency, switchmode power converters. These
DC-DC converters have DC input voltage of 9-17VDC, 18-36VDC, 38-72VDC,
96-140VDC, and 420-600VDC. Other input and output voltages can be made upon
request.

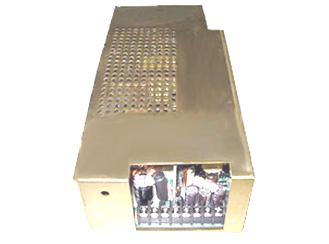

 DC/DC converter
Sample designs are listed
below
High Efficiency (75-85%)
Adjustable ± 5%
Designed to meet UL60950, T V
EN60950
Temperature range: 0°C to
+50°C
FCC Part 15 Class B, CISPER22
(EN55022) Class B (CE mark)
MTBF >50,000 hours at maximum
load and 25°C
This basic design comes in three configuration, the
600 watt, which needs no internal or external fan for cooling, the 1200 watt,
and the 1500 watt which use water circulation cooling.
|
600 Watt DC to DC
Converters |
| |
PSTC-12600-12 |
PSTC-12600-13.8 |
| Input Voltage |
9-17 VDC |
9-17 VDC |
| Output |
12 volts, 50 Amps |
13.8 Volts, 43 Amps |
| |
Other output voltages on
request |
| Size |
127 x 76 x 42 mm |
| Weight |
220 grams, 0.5 pounds, 7.7 oz |
220 g, 0.5 lb,7.7 oz |
| Input Connector |
Screw terminal block |
Screw terminal block |
| Output connector |
Screw terminal block |
Screw terminal block |
| Line Regulation |
±1% |
±1% |
| Load Regulation |
±5% |
±5% |
| Efficiency |
65% typical |
65% typical |
| Power Good Signal |
TTL compatilble
500 mS delay on, 1 mS delay on |
| Over Power Protection |
Shutdown and
latch at 130% of continuous rated power |
| Short Circuit Protection |
Shutdown and
latch off |
| Over voltage protection |
yes, depending on
output voltage |
| Isolation |
1500 VAC for 1
second, input to output, Input to frame ground |
| Leakage Current |
<0.75 mA |
| Dimensions |
225 mm x 120 mm x
70 mm, 8.9" x 4.72" x 2.75" |
| Weight |
3.5 kg, 7.7
pounds |
| Cooling |
600 watt version
needs no fan for cooling |
| Temperature |
0°C to
50°C operating, -20°C to +80°C storage |
| Price |
$3600.00 |
4 weeks delivery |
|
1200 Watt DC to DC
Converters |
| |
PSTC-241200-12 |
PSTC-241200-24 |
| Input Voltage |
18 to 36 VDC |
18 to 36 VDC |
| Output |
12 volts 100 Amps |
24 volts 50 Amps |
| |
Other output voltages on
request |
| Size |
127 x 76 x 42 mm |
| Weight |
220 g, 0.5 lb,7.7 oz |
| Input Connector |
Screw terminal block |
| Output connector |
Screw terminal block |
| Line Regulation |
±1% |
±1% |
| Load Regulation |
±5% |
±5% |
| Efficiency |
65% typical |
65% typical |
| Power Good Signal |
TTL compatilble
500 mS delay on, 1 mS delay on |
| Over Power Protection |
Shutdown and
latch at 130% of continuous rated power |
| Short Circuit Protection |
Shutdown and
latch off |
| Over voltage protection |
yes, depending on
output voltage |
| Isolation |
1500 VAC for 1
second, input to output, Input to frame ground |
| Leakage Current |
<0.75 mA |
| Dimensions |
225 mm x 120 mm x
70 mm, 8.9" x 4.72" x 2.75" |
| Weight |
3.5 kg, 7.7
pounds |
| Cooling |
600 watt version
needs no fan for cooling |
| Temperature |
0°C to
50°C operating, -20°C to +80°C storage |
| Price |
$3600.00 |
4 weeks delivery |
|
1500 Watt DC to DC Converters
|
| |
PSTC-481500-36 |
PSTC-481500-75 |
| Input Voltage |
38 to 72 VDC |
38 to 72 VDC |
| Output |
36 volts 42 Amps |
75 volts 20 Amps |
| |
Other output voltages on
request |
| Size |
127 x 76 x 42 mm |
| Weight |
220 g, 0.5 lb,7.7 oz |
| Input Connector |
Screw terminal block |
| Output connector |
Screw terminal block |
| Line Regulation |
±1% |
±1% |
| Load Regulation |
±5% |
±5% |
| Efficiency |
65% typical |
65% typical |
| Power Good Signal |
TTL compatilble
500 mS delay on, 1 mS delay on |
| Over Power Protection |
Shutdown and
latch at 130% of continuous rated power |
| Short Circuit Protection |
Shutdown and
latch off |
| Over voltage protection |
yes, depending on
output voltage |
| Isolation |
1500 VAC for 1
second, input to output, Input to frame ground |
| Leakage Current |
<0.75 mA |
| Dimensions |
225 mm x 120 mm x
70 mm, 8.9" x 4.72" x 2.75" |
| Weight |
3.5 kg, 7.7
pounds |
| Cooling |
600 watt version
needs no fan for cooling |
| Temperature |
0°C to
50°C operating, -20°C to +80°C storage |
| Price |
$3600.00 |
4 weeks delivery |
|
1500 Watt DC to DC Converters
|
| |
PSTC-1201500-36 |
PSTC-481500-75 |
| Input Voltage |
96 to 140 VDC |
96 to 140 VDC |
| Output |
36 volts 100 Amps |
75 volts 20 Amps |
| |
Other output voltages upon
request |
| Size |
127 x 76 x 42 mm |
| Weight |
220 g, 0.5 lb,7.7 oz |
| Input Connector |
Screw terminal block |
| Output connector |
Screw terminal block |
| Line Regulation |
±1% |
±1% |
| Load Regulation |
±5% |
±5% |
| Efficiency |
65% typical |
65% typical |
| Power Good Signal |
TTL compatilble
500 mS delay on, 1 mS delay on |
| Over Power Protection |
Shutdown and
latch at 130% of continuous rated power |
| Short Circuit Protection |
Shutdown and
latch off |
| Over voltage protection |
yes, depending on
output voltage |
| Isolation |
1500 VAC for 1
second, input to output, Input to frame ground |
| Leakage Current |
<0.75 mA |
| Dimensions |
225 mm x 120 mm x
70 mm, 8.9" x 4.72" x 2.75" |
| Weight |
3.5 kg, 7.7
pounds |
| Cooling |
600 watt version
needs no fan for cooling |
| Temperature |
0°C to
50°C operating, -20°C to +80°C storage |
| Price |
$3600.00 |
4 weeks delivery |
|
|
|
|
|
|
