600 Watt Heavy industry and military grade pure sine wave DC/AC inverters, 12VDC and 24VDC, 115VAC and 220VAC Versions

Pure Sine Wave Inverters 600 watts


  • Pure sine wave exactly duplicates household current.
  • Crystal controlled for precise timing for digital clocks and controllers
  • Suitable for any computer that requires less than 300 watts continuous.
  • Extra heavy filtering to isolate noise from equipment sharing the same battery
  • Ultra quiet with no electrical interference.
  • Illuminated on-off switch
  • Very rugged and reliable, CSA listed.
  • Low voltage warning and shutdown to protect the batteries
  • Suitable for operation with lead acid, sealed lead acid, 3 cell lithium ion and 4 cell lithium iron phosphate batteries.
  • The inverter is protected against condensation and are enhanced with vibration protection that meets or exceeds MIL-STD810F, Method 514-3 and Cat-1 Proc 1. C.O.T.S. products are designed to meet EMC radiated and conducted emissions MIL-STD 461E.
  • Thermostatically controlled fan comes on only when needed.
  • Isolated, can be used in positive or negative ground applications.
  • Manufactured in accordance with COTS standard IPC-A-610.
600 watt DC/AC inverters 12 volts DC to 110 VAC 12 volts DC to 220VAC 24VDC to 110VAC 24VDC to 220VAC
Part Number
and Price
PIPS600-12-110-MS
Allow up to 15 days for shipping
$1757
PIPS600-12-220-MS
Allow up to 15 days for shipping
$1757
PIPS600-24-110-MS
Allow up to 15 days for shipping
$1757 add_to_cart.gif
PIPS600-24-220-MS
Allow up to 15 days for shipping
$1757
Country of Origin Canada, NAFTA eligible Canada, NAFTA eligible Canada, NAFTA eligible Canada, NAFTA eligible
Input Voltage 10.5-16VDC 10.5-16VDC 20-30VDC 20-30VDC
Input current varies with input voltage and output power 102 Amps at 7.5A output and 10.5V input
51 Amps at 5A output and
14V input
101 Amps at 4.8A output and 10.5V input
62 Amps at 3.2A output and
14V input
54 Amps at 7.5A output and 20V input
26 Amps at 5A output and
28V input
66 Amps at 4.8A output and 20V input
32 Amps at 3.2A output and
28V input
Output Voltage 115VAC 220VAC 115VAC 220VAC
Output Frequency 60 Hz pure sine wave 60 Hz pure sine wave 60 Hz pure sine wave 60 Hz pure sine wave
Frequency accuracy Crystal controlled ±0.01 Hz Crystal controlled ±0.01 Hz Crystal controlled ±0.01 Hz Crystal controlled ±0.01 Hz
Max Output Current(s) 7.5 Amps
10 minutes maximum
4.8 Amps
10 minutes maximum
7.5 Amps
10 minutes maximum
4.8 Amps
10 minutes maximum
Max Output Power 860 watts 1000 watts 860 watts 1000 Watts
Continuous Output Current 5 Amps 3.2 Amps 5 Amps 3.2 Amps
Continuous Output Power 600 Watts 700 Watts 600 Watts 700 Watts
Output current limit? Yes Yes Yes Yes
Operating Temperature Range -40°C to +55°C (+85°C with derating) -40°C to +55°C (+85°C with derating) -40°C to +55°C (+85°C with derating) -40°C to +55°C (+85°C with derating)
Derating 2.5% per °C from 55°C to +85°C 2.5% per °C from 55°C to +85°C 2.5% per °C from 55°C to +85°C 2.5% per °C from 55°C to +85°C
Humidity 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing 0-95% non-condensing
Efficiency >80 % >80 % >80 % >80 %
Duty Cycle Peak power for 10 minutes maximum, continuous power 24 hours per day Peak power for 10 minutes maximum, continuous power 24 hours per day Peak power for 10 minutes maximum, continuous power 24 hours per day Peak power for 10 minutes maximum, continuous power 24 hours per day
Output Distortion <5% at 600 watts into a 0.8 power factor load <5% at 600 watts into a 0.8 power factor load <5% at 600 watts into a 0.8 power factor load <5% at 600 watts into a 0.8 power factor load
Line Regulation < ±0.5% < ±0.5% < ±0.5% < ±0.5%
Load regulation < ±0.5% < ±0.5% < ±0.5% < ±0.5%
Isolation Fully Isolated
>1500 volts isolation from case to output terminals or between input and output terminals. >500V isolation between input terminals and case
Fully Isolated
>1500 volts isolation from case to output terminals or between input and output terminals. >500V isolation between input terminals and case
Fully Isolated
>1500 volts isolation from case to output terminals or between input and output terminals. >500V isolation between input terminals and case
Fully Isolated
>1500 volts isolation from case to output terminals or between input and output terminals. >500V isolation between input terminals and case
Ground fault current < 5 mA between neutral and ground < 5 mA between neutral and ground < 5 mA between neutral and ground < 5 mA between neutral and ground
Remote power on/off No No No
Input Fuse
Input Connections Military style connections Military style connections Military style connections Military style connections
Output Connections Military style connections Military style connections Military style connections Military style connections
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load
Agency compliance cETLus approved to CSA C22.2 & UL458 cETLus approved to CSA C22.2 & UL458 cETLus approved to CSA C22.2 & UL458 cETLus approved to CSA C22.2 & UL458
Dimensions 272 x 196 x 132 (10.7 x 7.7 x 5.2 inches) 272 x 196 x 132 (10.7 x 7.7 x 5.2 inches) 272 x 196 x 132 (10.7 x 7.7 x 5.2 inches) 272 x 196 x 132 (10.7 x 7.7 x 5.2 inches)

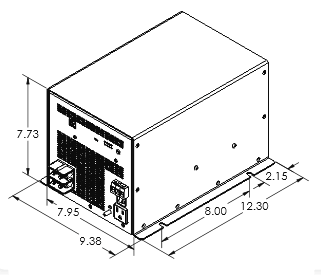

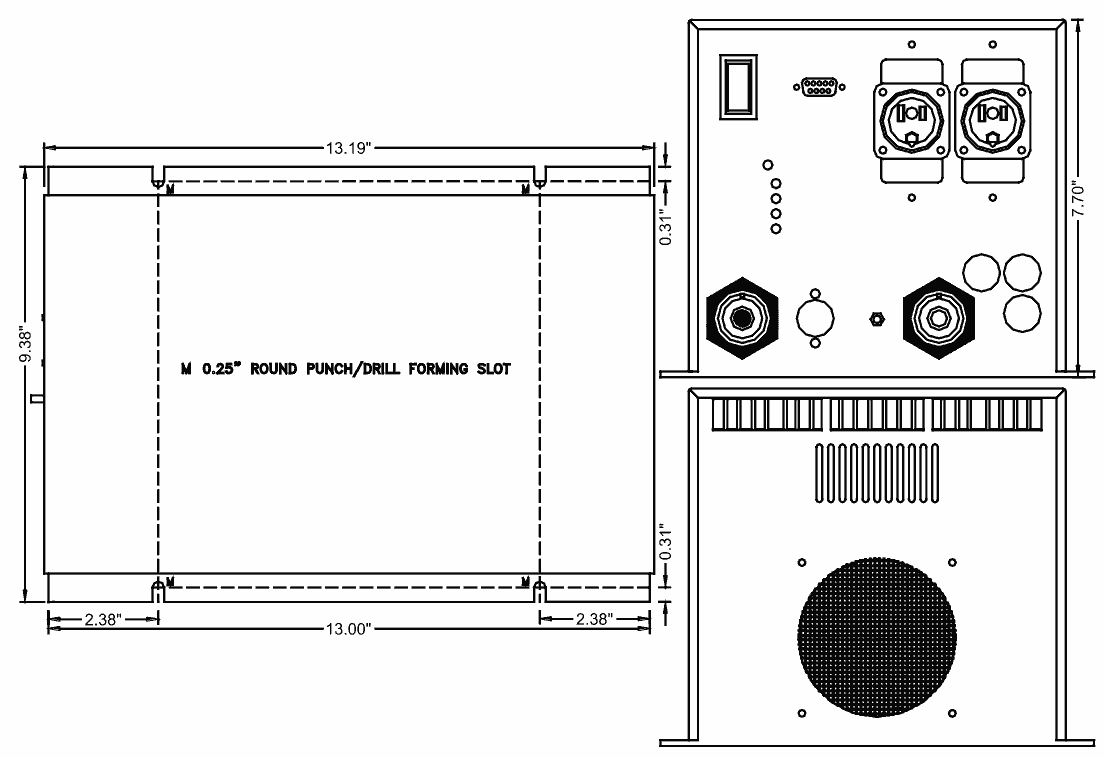

Drawings Click Here for Drawing Click Here for Drawing Click Here for Drawing Click Here for Drawing
Weight 10 Kg (22 lbs) 10 Kg (22 lbs) 10 Kg (22 lbs) 10 Kg (22 lbs)
Audible Noise 34.5 dB when fan is operating 34.5 dB when fan is operating 34.5 dB when fan is operating 34.5 dB when fan is operating
Cooling Fan comes on when needed Fan comes on when needed Fan comes on when needed Fan comes on when needed
Vibration MIL-STD810F, Method 514-3 and Cat-1 Proc 1. MIL-STD810F, Method 514-3 and Cat-1 Proc 1. MIL-STD810F, Method 514-3 and Cat-1 Proc 1. MIL-STD810F, Method 514-3 and Cat-1 Proc 1.
Service life 10 years 10 years 10 years 10 years
Warranty 3 years 3 years 3 years 3 years
