Primary Lithium Manganese Dioxide Cells from PowerStream



For more battery engineering resources click here: Battery Engineering Resources
Primary and Coin Lithium Battery Primer: Battery Engineering Resources
PowerStream offers the following lithium manganese dioxide batteries to original equipment manufacturers. We have supplied many thousands of these cells to many happy customers in the USA, Korea, Japan, and Europe. Small quantities are kept in stock, as indicated below. Terms: payment with order. Prices are subject to change, please inquire for current prices. 3-6 weeks delivery time for quantity pricing above 100 pieces.

Features:
(1) High energy density up to 270WH/Kg.
(2) High operation voltage, 2.7V~3.0V depending upon loading resistance.
(3) Long storage life, less than 2% of self-discharging rate per year, could be stored for 10 year at room temperature.
(4) Good discharge rate.
(5) Wide operation temperature range, -40°~+70°.
(6) Non-magnetic stainless steel case Please click the link to understand what this really means

Note: We don't inflate our specifications as many companies do. The capacity in amp-hours is guaranteed, and will be exceeded most of the time.

The CR series of primary (non-rechargeable) lithium button cells gives gives high current, long shelf life, and high energy density. Applications include laptop computers, PDA, IC cards, electric clocks, watches, remote control keys, cameras, toys, etc.

Type
Nominal
capacity
Nominal
voltage

Operating current
mA(max.)

Standard
discharge
Cut off
voltage
Dimension
mm(max.)
weight Operating
temperature
Price 1-99 Price
100-999
Price
1,000-9,999
Price
10,000-100,000
Price
100,000+

mAH V continuous pulse current mA V dia. H g °C   See Below for pin styles (Pins Extra at 100,000+ pricing)
CR1025 25 3 0.1 5 0.10 2.0 10 2.5 0.7 -30~+60 $3.00
$0.90
$0.52
$0.27
$0.08
call for current pricing
CR1025
CR1130 70 3 1.5 4 0.10 2.0 11.6 3.0 1.1 -30~+60 $3.00 add_to_cart.gif $0.85 $0.47 $0.28 $0.083 CR1130
CR1220 35 3 2 5 0.05 2.0 12.5 2.0 0.8 -30~+60 $1.20 $0.85 $0.47 0.28 $0.083 CR1220
CR1616
55 3 3 8 0.10 2.0 16.0 1.6 1.2 -30~+60 $1.20 add_to_cart.gif $0.27 $0.23 $0.18 $0.14 CR1616

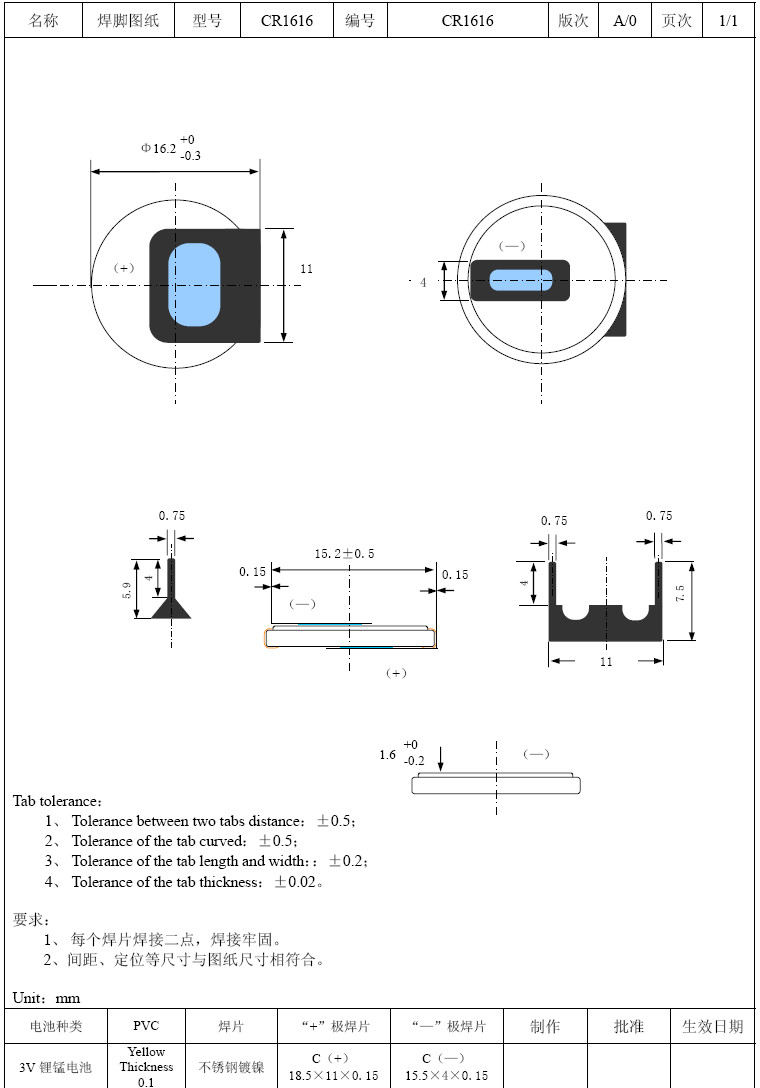

CR 1616 WITH 3V HORIZONTAL PC Mount Drawing for optional horizontal pins   55 3 3 8         1.3 g   $1.20
$0.27 $0.23 $0.20 $.18
CR1620 70 3 3 8 0.10 2.0 16.0 2.0 1.5 -30~+60 $1.20 $0.27 $0.23 $0.18 $0.10 CR1620
CR2016 75 3 5 17 0.10 2.0 20.0 1.6 1.9 -30~+60 $1.20 add_to_cart.gif $0.32 $0.19 $0.14 $0.081 CR2016
CR2025 150 3 5 20 0.20 2.0 20.0 2.5 2.5 -30~+60 $1.20 add_to_cart.gif $0.32 $0.19 $0.14 $0.081 CR2025
CR2032 210 3 5 20 0.20 2.0 20.0 3.2 3.0 -30~+60 $1.30 add_to_cart.gif $0.40 $0.23 $0.16 $0.081 CR2032
CR2354 530 3       2.0 23.0 5.4   -30~+60 $2.50 $1.08 $0.79 $0.58 $0.40 CR2354
CR2330   3       2.0 23.0 2.0   -30~+60           CR2330
CR2430 270 3 6 21 0.40 2.0 24.5 3.0 4.0 -30~+60 $2.00 add_to_cart.gif $1.15 $0.74 $0.34 $0.20 CR2430
CR2450 550 3 3 15 0.20 2.0 24.5 5.0 5.3 -30~+60 $2.20 add_to_cart.gif $1.18 $0.86 $0.31 $0.20 CR2450
CR2477 1000 3 3 15 0.20 2.0 24.5 7.7 8.3 -30~+60 $3.00 add_to_cart.gif $1.65 $1.13 $0.48 $0.39 CR2477

Quantity pricing is based on one order, one shipment. Allow time for ocean freight from China for large quantities of lithium containing cells.

Caution:
(1) Do not short-circuit and do not try to charge lithium primary manganese dioxide batteries.
(2) Do not over-discharge , dent, crush, or burn the battery.
(3) The battery should be removed from the instrument when battery is depleted.
(4) Do not try to solder directly to the battery .
(5) Do not disassemble the batteries.
(6) Do not use outside specified temperature range

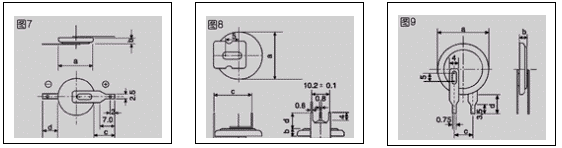

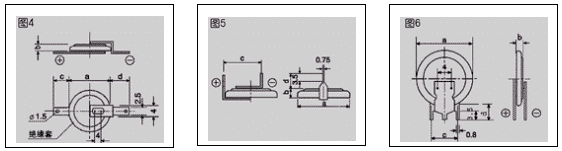

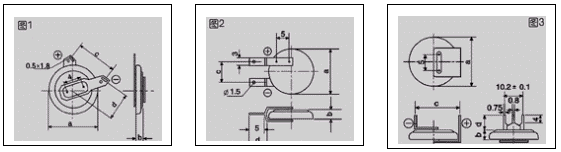

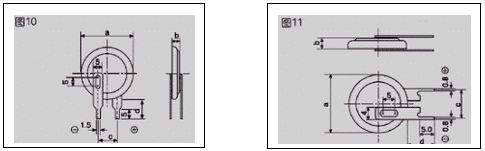

Model NO. A B C D Figure
Ap. 25 4 0.75 4
An. 20 4 0.75 4
Bp. 24 4 1.8 3.5
Bn. 19 4 0.75 4
Cp. 18.5 11 0.75 4
Cn. 15.5 4 0.75 3.5
Dp. 25 4 3 5
Dn. 20 4 1.5 5
Ep. 20 4 0.75 6.5
En. 18 4.7 0.75 5.5
F 13.8 4 2.6 4.9
G 15 19 0.75 4
H 24 8.3 0.8 4
I 22.5 11 0.8 4
J 22 4 0.8 4
K 12.5 8 0.8 4
