Lithium ion Rechargeable (secondary) Coin Cells from PowerStream


Lithium Ion Coin Cells
Lithium ion coin cell chargerChargers for lithium ion coin cells are available from PowerStream. Click here.
For more battery engineering resources click here: Battery Engineering Resources
Primary and Coin Lithium Battery Primer: Battery Engineering Resources

Features:
(1) High energy density up to 270WH/Kg.
(2) High operation voltage, 3.6 V depending upon loading resistance.
(3) Wide operation temperature range, -20 °C to +60 °C .
(4) Non-magnetic stainless steel case, hermetically sealed. Safe for transportation and general shock. No leakage problem.

The LIR series of secondary (rechargeable) lithium button cells gives gives high voltage, long shelf life, and high energy density in a small cell. Applications include laptop computers, PDA, IC cards, electric clocks, watches, remote control keys, cameras, toys, etc.

Model
Number
Data
Sheet
Normal
voltage(V)
Normal
Capacity
(mAh)
Max
Discharge
(mA)
Internal Impedance Cycle Life
(times)
Dimension
(mm)
Approx
Weight(g)
Price
100-999
Price 1000-9,999 Price 10,000+ Sample Price
Lir1220 Data SheetData sheet Lir1620 rechargeable Lithium Coin Cell 3.6V 8±2 mAH 10 mA   500 12mm diameter, 2.0 mm thick 0.7g $1.35 $1.13 $0.90 $5.00 each retail
Lir1620
Drawing for optional horizontal pins
Data SheetData sheet Lir1620 rechargeable Lithium Coin Cell

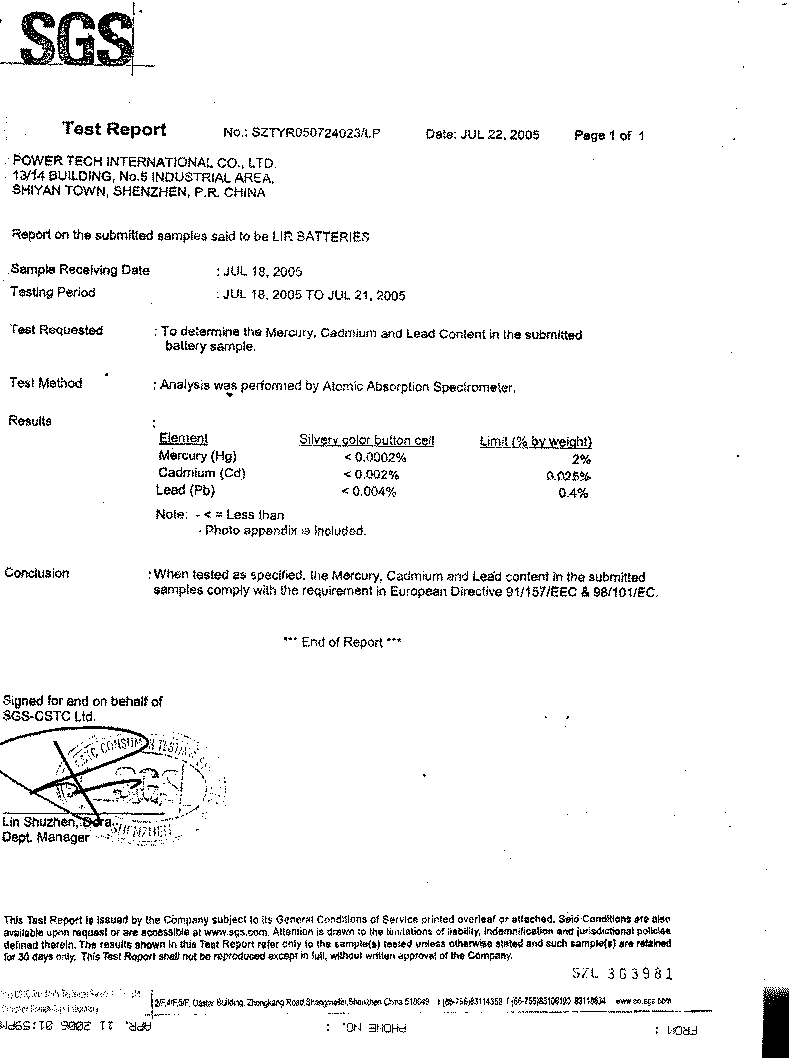

ROHS Certificate
3.6V 11 mAh 20 mA 1.2 Ohms 500 16.0*2.2 1.2g $1.35 $1.13 $0.90 $5.00 each retail
Lir2016 Data SheetData sheet Lir2016 rechargeable Lithium Coin Cell

ROHS Certificate
3.6V 15 mAh 24 mA 1.0 Ohms 500 20.0*1.8 1.6g $1.35 $1.13 $0.90 $5.00 each retail
Lir2025 Data SheetData sheet Lir2025 rechargeable Lithium Coin Cell

ROHS Certificate
3.6V 25 mAh 40 mA 0.75 Ohms 500 20.0*2.7 2.2g $1.35 $1.13 $0.90 $5.00 each retail
Lir2032 Data SheetData sheet Lir2032 rechargeable Lithium Coin Cell

ROHS Certificate
3.6V 35 mAh 70 mA 0.60 Ohms 500 20.0*3.2 3.0g $1.26 $1.05 $0.84 $5.00 each retail
Lir2430 Data SheetData sheet Lir2430 rechargeable Lithium Coin Cell

ROHS Certificate
3.6V 60 mAh 110 mA 0.60 Ohms 500 24.5*3.2 3.7g $1.53 $1.25 $0.97 $5.00 each retail
Lir2450 Data SheetData sheet Lir2450 rechargeable Lithium Coin Cell

ROHS Certificate
3.6v 110mAh 200 mA 0.40 Ohms 500 24.5*5.4 5.2g $1.85 $1.52 $1.18 $5.00 each retail
Lir2477 Data SheetData sheet Lir2477 rechargeable Lithium Coin Cell

ROHS Certificate
3.6v 160mAh 300 mA 0.30 Ohms 500 24.5*8.4 7.8g $2.02 $1.66 $1.29 $5.00 each retail
LIR3048
LIR3055
Data SheetData sheet Lir2477 rechargeable Lithium Coin Cell
ROHS Certificate
3.6V 230mAh 230mA   500 30.5*5.5mm 8.5g $2.50 $1.93 $1.39 $5.50 each retail add_to_cart.gif

Quantity pricing is based on one order, one shipment. Allow time for ocean freight from China for large quantities of lithium containing cells.

Caution:
(1) Do not short-circuit
(2) Do not over-discharge , dent, crush, or burn the battery.
(3) The battery should be removed from the instrument when battery is depleted.
(4) Do not try to solder directly to the battery, don't put through solder reflow process .
(5) Do not disassemble the batteries.
(6) Do not use outside specified temperature range

PowerStream offers these lithium ion rechargeable coin cells to original equipment manufacturers. We have supplied many thousands of these cells to many happy customers in the USA, Korea, Japan, and Europe.

Prices are subject to change, please inquire for current prices. We carry some stock in the USA, larger quantities 3-6 weeks delivery time.

Following are examples of solder tabs that have been made. Even though surface mount tabs are available, these cells will be damaged if put through a surface mount reflow process due to the high temperatures involved.

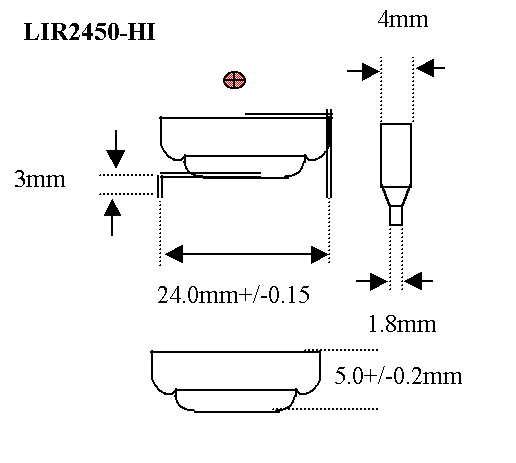

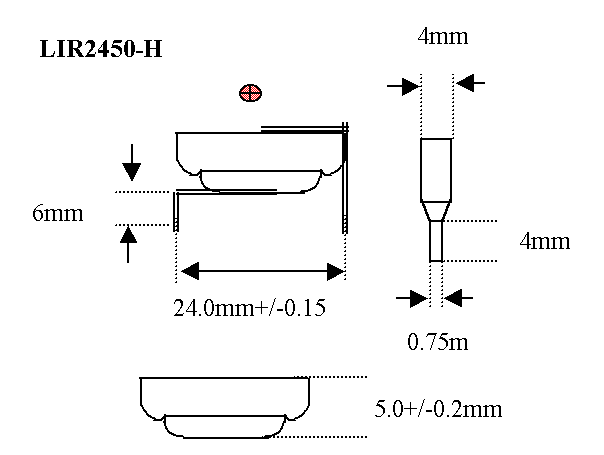

horizontal mount 2 pin for 2450 size coin c ell horizontal mount 2 pin for 2450 size coin cell

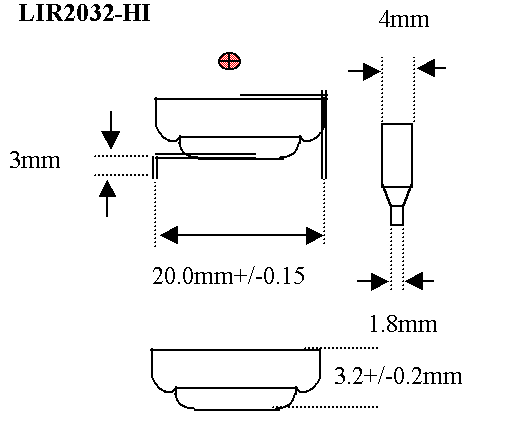

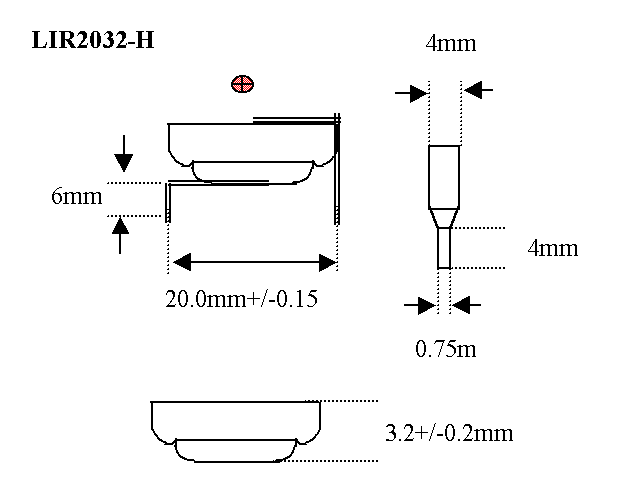

horizontal mount 2 pin for 2032 size coin cell horizontal mount 2 pin for 2032 size coin cell

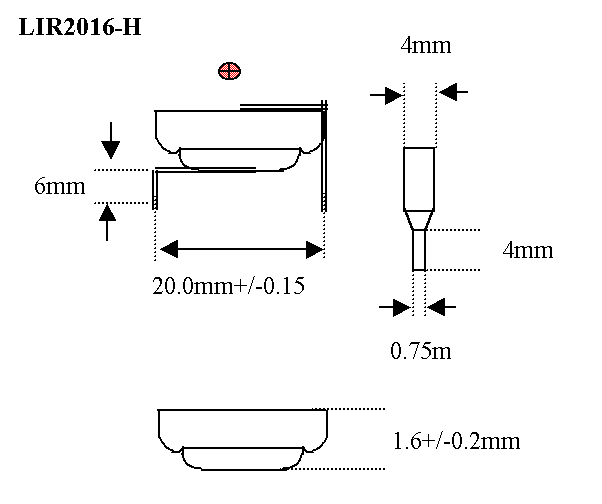

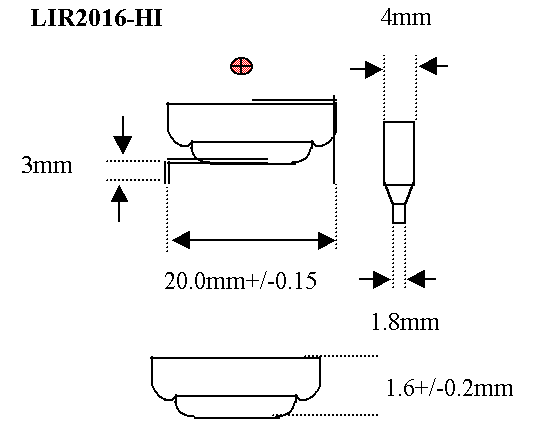

horizontal mount 2 pin for 2016 size coin cell horizontal mount 2 pin for 2016 size coin cell

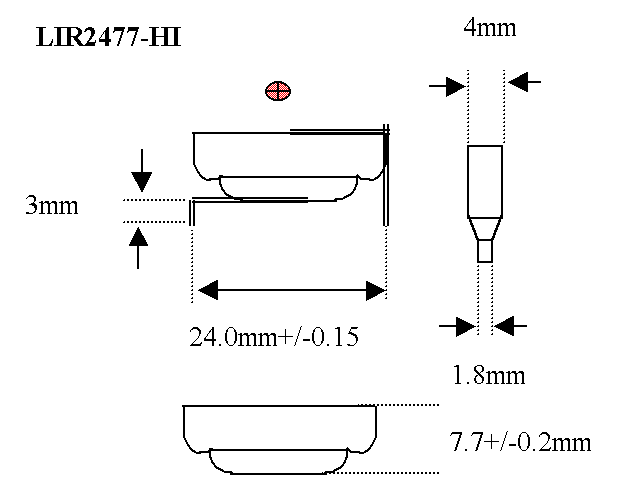

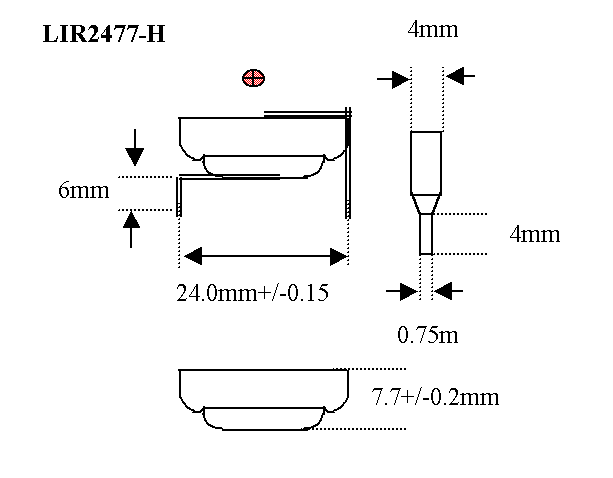

horizontal mount 2 pin for 2477 size coin cell horizontal mount 2 pin for 2477 size coin cell

Lithium ion coin cells
