Minimoto
style 18V battery chargers with Rejuvination Function
 Note: the 18 Volt Minimoto version uses this
connector
|
|
|
|
|
Read PowerStream's Privacy Policy
PowerStream
now offers this chargers for 18 volt Pb-acid batteries specifically designed for the personal
electric vehicle market. These are have several advantages over the OEM Mini-moto style
chargers, including the following attributes:
Advantages:
 18VDC Multi-stage "smart charge" algorithm is kind to the
battery.
Switchmode based instead of transformer based make the chargers smaller
and lighter as well as being much more energy efficient.
Universal Power Input means that the 18V chargers can be used in any
country using anything between 90VAC and 264 VAC.
"Rejuvination" function attempts to desulfate batteries. This can bring
many batteries back from the dead, a useful function for ride-on toys.
Replaces the mini-moto part number ZED57054U with a higher power charger
that is much kinder to the battery.
| Quantity |
|
1-10 |
11-50 |
51-100 |
100+ |
|
|
PST-3PA3022B Minimoto style with no
rejuvination function. (INCLUDES A 3-PIN CORD)
 |
For charging 18V Pb-Acid
batteries |
$32.00
|
$28.20 |
$22.80 |
Call |
|
|

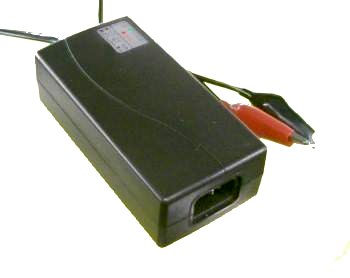

PST-3PA3022A with alligator clips and no
rejuvination function (INCLUDES A 3-PIN CORD)
 |
For charging 18V Pb-Acid
batteries |
$32.00
|
$28.30 |
$22.80 |
Call |
|
|
PST-3PA3022RB with "Minmototo" compatible barrel
plug output and rejuvination function (INCLUDES A 3-PIN CORD)
|
For charging 18 volt Pb-Acid
batteries |
$39.50
|
$34.80 |
$28.10 |
Call |
|
|
PST-3PA3022RA alligator clips and rejuvination function.
(INCLUDES A 3-PIN CORD)
|
|
$39.50
|
$34.80 |
$28.10 |
Call |
|
|
| General
Information |
| Model |
PST-3PA3022, PST-3PA3022R |
| Name |
18 Volt charger for lead acid, sealed lead acid,
etc. |
| Type |
Battery Pack Charger for R/C, Robots, ride-on
toys, motorcycles, bicycles, scooters and instruments. |
| ROHS |
ROHS available on special order |
|
| |
| Technical Information |
| Rated input voltage |
90-264 VAC, 50/60 Hz |
| Battery size |
18 volt nominal SLA, VRLA, Gel, AGM, or
flooded |
| Input Frequency |
50-60 Hz |
| Battery voltage |
18 volts nominal |
| Battery size |
0.7 AH to 20+ AH |
| Charging current |
1.6 amps or 1600mA |
| Charger type |
Lead Acid Chemistry |
| Charging algorithm |
Constant current/constant
voltage/float |
| Stage 1 constant current 1600 mA
± 100 mA |
| Stage 2 constant voltage 22.1 volts
± 0.25 volts |
| Stage 3 float charge 20.65 ±0.20
volts |
| "Charged" light turns on and float
charge starts when the charge current is below 0.20 amps ±0.05 amps when the battery
charge voltage is above 21 volts. |
| Rejunenation Desulphate or repair |
PST-3PA3022R only: Automatic
rejuvination function is under microprocessor contro and does not need a switch. If the battery
will not accept a charge the voltage is automatically raised in a controlled manner to 28.5-33V
and limited to 200 mA |
| Style |
Desktop |
| Output power |
130W maximum |
| Output voltage |
22.2 volts maximum during charge, 33
volts maximum during desulphation repair |
| Output options included |
Alligator clips or 5.5 mm OD x 2.1 mm
ID barrel
More barrel
connectors available separately, see below
Note: The Minimoto uses the unusual configuration
of negative center for the barrel connector. Please double check your application.
|
| Weight |
250 grams, 0.25 kg, 0.55 pounds, 8.8
oz |
| Cooling |
Natural convection, no fan |
| Efficiency |
>80% |
| Size |
117 x 61 x 37 mm, 4.6 x 2.4 x 1.5
inches |
| Environment |
-10°C to +40°C operating, -40°C
to +70°C storage |
| Temperature rise |
<40°C rise on case under any line
voltage and maximum rated load |
| Vibration, Impact |
5mm, 50Hz, 600 Seconds, 1 meter drop 3
times |
| Protections |
Reverse Polarity, Short circuit protection,
Over Voltage Protection, Output current protection |
| Safety |
CE marked, designed to EN60950, GB4946,
UL1950 |
| MTBF |
30,000 hours by MIL-STD calculation |
| HiPot, ESD |
Hi-Pot 3000 V, 1 minu7te, ESD 8000V |
| LED Indications |
Power on, but no battery connected |
Green |
| Charging |
Red |
| Finishing charge |
Green flashing |
| Desulphating if it doesn't turn red within 3-5 days the
battery is not recoverable |
Red flashing |
| Charged/Float Charging |
Green |
| Polarity reverse or short circuit |
Red & Green (yellow) flashing
alternately |
|
|
|
|
|
|
|
