Universal AC and Auto adapters for laptops |
|
  |
|
Universal AC
adjustable output DC power supply, 70Watts |
|
|
|
For more power
supply products from PowerStream click here:
Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for
OEMs in a hurry!
These laptop adapters select the output voltage with
the interchangeable connectors. Since this isn't our favorite way of selecting the voltage we are having a closeout sale.
Prices
|
Price |

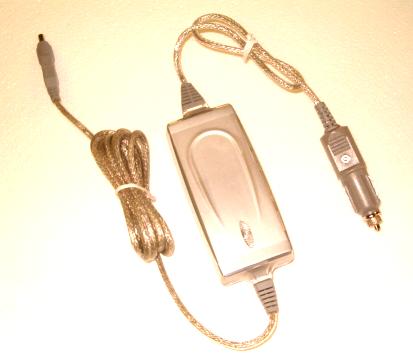

MWS2470W
Car adapter laptop supply |
$16.20
  |
MWS2465W
AC/DC laptop power supply |
$16.20
|
Specifications. Click here for test data.
| Part Number |
MWS2470W |
|
MWS2465W |
| Parameter |
 |
|
 |
| Output |
12 volts, 15 volts, 16 volts, 18 volts, 19 volts, 20 volts or 21 volts, single output, user
adjustable |
|
15 volts, 16 volts, 18 volts, 19 volts, 20 volts, 22 volts or 24 volts, single output, user
adjustable |
| Output Power |
70 Watts |
|
70 Watts |
| Input Voltage |
11.8-16 VDC |
|
100-240 VAC, 47-63 Hz |
| Input Frequency |
Direct current |
|
50/60 Hz |
| Regulation |
Fully regulated |
|
Fully regulated |
| Size |
120mm x 56mmx 34mm (4.8 x 2.2 x 1.3 inches) |
|
120mm x 56mmx 34mm (4.8 x 2.2 x 1.3 inches) |
| Output Connectors Set the out put voltage as shown |
| A |
4.8OD x 1.7mm ID |
19V |
|
| B |
5.5x2.5 |
19V |
|
| C |
5.5x2.5 |
16V |
|
| D |
5.5x2.1 |
19V |
|
| E |
6.5x3 |
15V |
|
| F |
Apple Large |
24V |
|
| H |
6.0 center pin |
15-16V |
|
| I |
6.0 center pin |
19-20V |
|
| J |
Apple small |
24V |
|
|
|
| A |
4.8OD x 1.7mm ID |
19V |
|
| B |
5.5x2.5 |
19V |
|
| C |
5.5x2.5 |
16V |
|
| D |
5.5x2.1 |
19V |
|
| E |
6.5x3 |
15V |
|
| F |
Apple Large |
24V |
|
| H |
6.0 center pin |
15-16V |
|
| I |
6.0 center pin |
19-20V |
|
| J |
Apple small |
24V |
|
|
| How Many Amps are Too Many? |
In a regulated power supply, such as these switchmode power supplies, amps don't matter as
long as you have enough. Excess amperage is just held in reserve. An analogy is "doubling the size of your water heater won't
make your shower pressure change."
Unregulated power supplies (such as wall-mount transformers) are different, since
they are built to supply a specific voltage at a specific amperage. If you draw less amperage the voltage will go up.
In conclusion, a higher current rating won't hurt your appliance as long it is a regulated power supply. For unregulated power
supplies the specification should be close to the original. |
Output voltage comparison table:
Advantages:
 Universal input switchmode dc power supply with user
adjustable output voltage.
High efficiency PC power supply for telecom
use..
Excellent line and load regulation.
|
|
|
|
|
|
