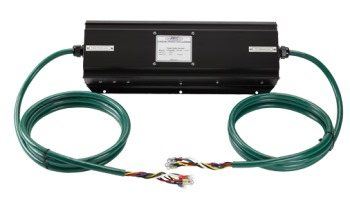

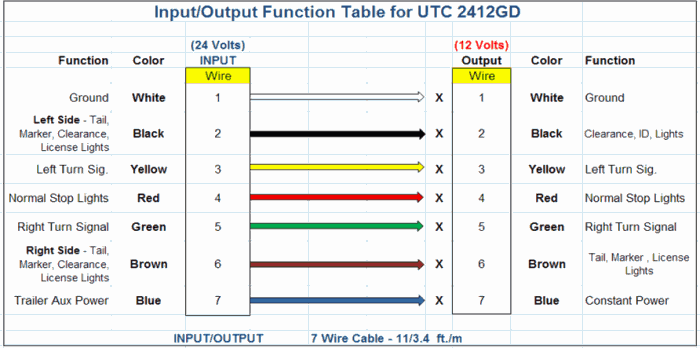

UTC 2412GD is an electrical interface that accepts a 24
Volt seven wire input and converts it into a corresponding 12 Volt 7 wire
output. UTC 2412GD is an OEM component intended for installation and hard
wiring into a trailer. It provides 6 independent circuits capable of supplying
a total power of 800 Watts at 12 Volts. UTC 2412GD is compact and lightweight
at only 15 pounds excluding the weight of its integral input and output cables.
It has a flat profile allowing mounting to be practical in various sections of
a trailer.
Trailer Voltage Converter
Interface Design Features
Wide Range Input Voltage Ranges, 21-30V
High Efficiency Design
Hi Ingress Rating, IP676
Low Voltage cutout
High Voltage cutout
Electronically Current
Limited
Thermally Protected
Low No-Load Power
Consumption
Aluminum Anodized Housing

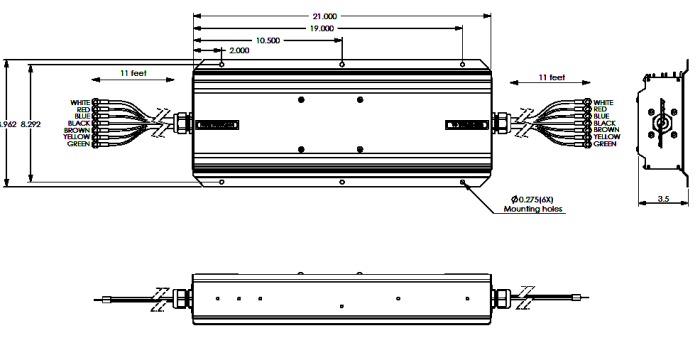

6-point mounting
Cable input connection
Cable output connection
OPERATING TEMPERATURE
STORAGE TEMPERATURE
-40C to +60C -60C to +125C
OVERLOAD PROTECTION
Electronic
EFFICIENCY
92%
Typical
CONSTRUCTION
BLACK ANODIZED ALUMINUM
Weather resistant
Ingress protection to IP676 level, (up to 1 meter immersion in
water)
WEIGHT
14 lbs./ 6.5 kg. total (cable included)
INPUT VOLTAGE
RANGE
21-30 VDC
INPUT CURRENT
10A maximum per circuit for 24V input
OUTPUT VOLTAGE
13.6 ± 0.3 V per circuit
OUTPUT CURRENT
15A per line (Brown Black, Red, Blue 10A per
line (Yellow, Green)
OUTPUT REGULATION
0.2V over entire input voltage and load current range
