AC/DC and AC/AC Transformer Adapters 0.5 to 9 Watt

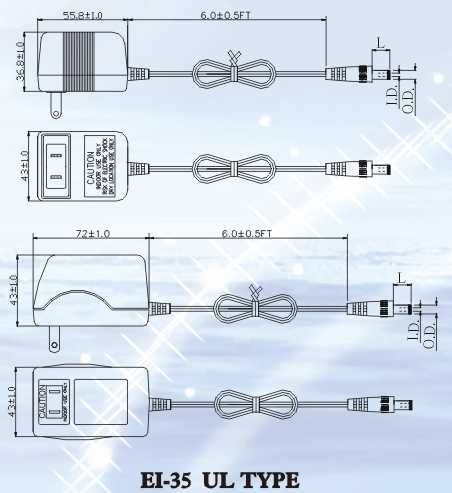

	Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry! AC /DC Adpaters 0.45-9 Watt nominal, Wall Mount JOD-35U Tutorial: How to Design with Wall Mount Power Supplies and AC Adapters These transformer based power supplies are only available in quantities of 1000+ pieces per shipment. Call or write for a quote. Model No. Rated Output Voltage Rated Output Current Rated Output JOD-35U-01A 3VAC 1A 3VA JOD-35U-02A 4.5VAC 100mA 0.45VA JOD-35U-03A 4.5VAC 200mA 0.9VA JOD-35U-04A 4.5VAC 300mA 1.35VA JOD-35U-05A 4.5VAC 400mA 1.8VA JOD-35U-06A 4.5VAC 500mA 2.25VA JOD-35U-07A 9VAC 300mA 2.7VA JOD-35U-08A 4.5VAC 600mA 2.7VA JOD-35U-09A 4.5VAC 700mA 3.15VA JOD-35U-10A 4.5VAC 800mA 3.6VA JOD-35U-11A 4.5VAC 900mA 4.05VA JOD-35U-12A 4.5VAC 1A 4.5VA JOD-35U-13A 4.5VAC 1.5A 6.75VA JOD-35U-14A 5VAC 100mA 0.5VA JOD-35U-15A 5VAC 200mA 1.0VA JOD-35U-16A 5VAC 300mA 1.5VA JOD-35U-17A 5VAC 400mA 2.0VA JOD-35U-18A 5VAC 500mA 2.5VA JOD-35U-19A 5VAC 600mA 3.0VA JOD-35U-20A 5VAC 700mA 3.5VA JOD-35U-21A 5VAC 800mA 4.0VA JOD-35U-22A 5VAC 900mA 4.5VA JOD-35U-23A 5VAC 1A 5VA JOD-35U-24A 6VAC 100mA 0.6VA JOD-35U-25A 6VAC 200mA 1.2VA JOD-35U-26A 6VAC 300mA 1.8VA JOD-35U-27A 6VAC 450mA 2.4VA JOD-35U-28A 6VAC 500mA 3.0VA JOD-35U-29A 6VAC 600mA 3.6VA JOD-35U-30A 6VAC 700mA 4.2VA JOD-35U-31A 6VAC 800mA 4.8VA JOD-35U-32A 6VAC 900mA 5.4VA JOD-35U-33A 6VAC 1A 6.0VA JOD-35U-34A 7VAC 500mA 3.5VA JOD-35U-35A 7.5VAC 100mA 0.75VA JOD-35U-36A 7.5VAC 200mA 1.5VA Model No. Rated Output Voltage Rated Output Current Rated Output JOD-35U-61A 10VAC 100mA 1VA JOD-35U-62A 10VAC 200mA 2VA JOD-35U-63A 10VAC 300mA 3VA JOD-35U-64A 10VAC 400mA 4VA JOD-35U-65A 10VAC 500mA 5VA JOD-35U-66A 10VAC 600mA 6VA JOD-35U-67A 10VAC 700mA 7VA JOD-35U-68A 10VAC 800mA 8VA JOD-35U-69A 12VAC 50mA 0.6VA JOD-35U-70A 12VAC 100mA 1.2VA JOD-35U-71A 12VAC 150mA 1.8VA JOD-35U-72A 12VAC 200mA 2.4VA JOD-35U-73A 12VAC 250mA 3VA JOD-35U-74A 12VAC 300mA 3.6VA JOD-35U-75A 12VAC 400mA 4.8VA JOD-35U-76A 12VAC 500mA 6VA JOD-35U-77A 12VAC 600mA 7.2VA JOD-35U-78A 13.5VAC 200mA 2.7VA JOD-35U-79A 14VAC 200mA 2.8VA JOD-35U-80A 15VAC 100mA 1.5VA JOD-35U-81A 15VAC 200mA 3VA JOD-35U-82A 15VAC 300mA 4.5VA JOD-35U-83A 15VAC 400mA 6VA JOD-35U-84A 15VAC 500mA 7.5VA JOD-35U-85A 16VAC 100mA 1.6VA JOD-35U-86A 16VAC 150mA 2.4VA JOD-35U-87A 16VAC 200mA 3.2VA JOD-35U-88A 16VAC 300mA 4.8VA JOD-35U-89A 16VAC 350mA 5.6VA JOD-35U-90A 16VAC 400mA 6.4VA JOD-35U-91A 16VAC 500mA 8VA JOD-35U-92A 18VAC 60mA 1.08VA JOD-35U-93A 18VAC 100mA 1.8VA JOD-35U-94A 18VAC 250mA 4.5VA JOD-35U-95A 18VAC 300mA 5.4VA JOD-35U-96A 7.5VAC 200mA 1.5VA JOD-35U-37A 7.5VAC 300mA 2.25VA JOD-35U-38A 7.5VAC 400mA 3.0VA JOD-35U-39A 7.5VAC 500mA 3.75VA JOD-35U-40A 7.5VAC 550mA 4.13VA JOD-35U-41A 7.5VAC 600mA 4.5VA JOD-35U-42A 7.5VAC 700mA 5.25VA JOD-35U-43A 7.5VAC 800mA 6VA JOD-35U-44A 7.5VAC 900mA 6.75VA JOD-35U-45A 7.5VAC 1A 7.5VA JOD-35U-46A 8.5VAC 1A 8.5VA JOD-35U-47A 9VAC 50mA 0.45VA JOD-35U-48A 9VAC 100mA 0.9VA JOD-35U-49A 9VAC 150mA 1.35VA JOD-35U-50A 9VAC 200mA 1.8VA JOD-35U-51A 9VAC 250mA 2.25VA JOD-35U-52A 9VAC 350mA 3.15VA JOD-35U-53A 9VAC 400mA 3.6VA JOD-35U-54A 9VAC 450mA 4.05VA JOD-35U-55A 9VAC 500mA 4.5VA JOD-35U-56A 9VAC 600mA 5.4VA JOD-35U-57A 9VAC 700mA 6.3VA JOD-35U-58A 9VAC 800mA 7.2VA JOD-35U-59A 9VAC 900mA 8.1VA JOD-35U-60A 9VAC 1A 9VA Model No. Rated Output Voltage Rated Output Current Rated Output JOD-35U-18 10VAC 100mA 1VA JOD-35U-62A 10VAC 200mA 2VA JOD-35U-63A 10VAC 300mA 3VA JOD-35U-64A 10VAC 400mA 4VA JOD-35U-65A 10VAC 500mA 5VA JOD-35U-66A 10VAC 600mA 6VA JOD-35U-67A 10VAC 700mA 7VA JOD-35U-68A 10VAC 800mA 8VA JOD-35U-69A 12VAC 50mA 0.6VA JOD-35U-70A 12VAC 100mA 1.2VA JOD-35U-71A 12VAC 150mA 1.8VA JOD-35U-72A 12VAC 200mA 2.4VA JOD-35U-73A 12VAC 250mA 3VA JOD-35U-74A 12VAC 300mA 3.6VA JOD-35U-75A 12VAC 400mA 4.8VA JOD-35U-76A 12VAC 500mA 6VA JOD-35U-77A 12VAC 600mA 7.2VA JOD-35U-78A 13.5VAC 200mA 2.7VA JOD-35U-79A 14VAC 200mA 2.8VA JOD-35U-80A 15VAC 100mA 1.5VA JOD-35U-81A 15VAC 200mA 3VA JOD-35U-82A 15VAC 300mA 4.5VA JOD-35U-83A 15VAC 400mA 6VA JOD-35U-84A 15VAC 500mA 7.5VA JOD-35U-85A 16VAC 100mA 1.6VA JOD-35U-86A 16VAC 150mA 2.4VA JOD-35U-87A 16VAC 200mA 3.2VA JOD-35U-88A 16VAC 300mA 4.8VA JOD-35U-89A 16VAC 350mA 5.6VA JOD-35U-90A 16VAC 400mA 6.4VA JOD-35U-91A 16VAC 500mA 8VA JOD-35U-92A 18VAC 60mA 1.08VA JOD-35U-93A 18VAC 100mA 1.8VA JOD-35U-94A 18VAC 250mA 4.5VA JOD-35U-95A 18VAC 300mA 5.4VA JOD-35U-96A 18VAC 400mA 7.2VA JOD-35U-97A 18VAC 500mA 9VA JOD-35U-98A 20VAC 100mA 2VA JOD-35U-99A 20VAC 200mA 4VA JOD-35U-100A 24VAC 100mA 2.4VA JOD-35U-101A 24VAC 150mA 3.6VA JOD-35U-102A 24VAC 200mA 4.8VA JOD-35U-103A 24VAC 300mA 7.2VA JOD-35U-01 4.5VDC 500mA 2.25VA JOD-35U-02 6VDC 200mA 1.2VA JOD-35U-03 6VDC 300mA 1.8VA JOD-35U-04 6VDC 400mA 2.4VA JOD-35U-05 7.5VDC 300mA 2.25VA JOD-35U-06 9VDC 200mA 1.8VA JOD-35U-07 9VDC 300mA 2.7VA JOD-35U-08 12VDC 100mA 1.2VA JOD-35U-09 12VDC 200mA 2.4VA JOD-35U-10 5.8VDC 300mA 1.74VA JOD-35U-11 3VDC 300mA 0.9VA JOD-35U-12 12VDC 150mA 1.8VA JOD-35U-13 6VDC 500mA 3VA JOD-35U-14 4.5VDC 300mA 1.35VA JOD-35U-15 9VDC 100mA 0.9VA JOD-35U-16 9VDC 150mA 1.35VA JOD-35U-17 5VDC 500mA 2.5VA Model No. Rated Output Voltage Rated Output Current Rated Output JOD-35U-18 1.25VDC 600mA 0.75VA JOD-35U-19 3VDC 100mA 0.3VA JOD-35U-20 3VDC 200mA 0.6VA JOD-35U-21 3VDC 350mA 1.05VA JOD-35U-22 3VDC 400mA 1.2VA JOD-35U-23 3VDC 450mA 1.35VA JOD-35U-24 3VDC 500mA 1.5VA JOD-35U-25 3VDC 600mA 1.8VA JOD-35U-26 3VDC 700mA 2.1VA JOD-35U-27 3VDC 800mA 2.4VA JOD-35U-28 3VDC 900mA 2.7VA JOD-35U-29 3VDC 1A 3.0VA JOD-35U-30 4.5VDC 100mA 0.45VA JOD-35U-31 4.5VDC 150mA 0.68VA JOD-35U-32 4.5VDC 200mA 0.9VA JOD-35U-33 4.5VDC 250mA 1.13VA JOD-35U-34 4.5VDC 350mA 1.58VA JOD-35U-35 4.5VDC 400mA 1.8VA JOD-35U-36 4.5VDC 450mA 2.03VA JOD-35U-37 4.5VDC 600mA 2.7VA JOD-35U-38 4.5VDC 700mA 3.15VA JOD-35U-39 4.5VDC 800mA 3.6VA JOD-35U-40 4.5VDC 900mA 4.05VA JOD-35U-41 4.5VDC 1A 4.5VA JOD-35U-42 5VDC 100mA 0.5VA JOD-35U-43 5VDC 150mA 0.75VA JOD-35U-44 5VDC 200mA 1.0VA JOD-35U-45 5VDC 250mA 1.25VA JOD-35U-46 5VDC 300mA 1.5VA JOD-35U-47 5VDC 350mA 1.75VA JOD-35U-48 5VDC 400mA 2.0VA JOD-35U-49 5VDC 600mA 3.0VA JOD-35U-50 5VDC 700mA 3.5VA JOD-35U-51 5VDC 800mA 4.0VA JOD-35U-52 5VDC 900mA 4.5VA JOD-35U-53 6VDC 50mA 0.3VA JOD-35U-54 6VDC 100mA 0.6VA JOD-35U-55 6VDC 150mA 0.9VA JOD-35U-56 6VDC 250mA 1.5VA JOD-35U-57 6VDC 350mA 2.1VA JOD-35U-58 6VDC 450mA 2.7VA JOD-35U-59 6VDC 600mA 3.6VA JOD-35U-60 6VDC 700mA 4.2VA JOD-35U-61 6VDC 800mA 4.8VA JOD-35U-62 7VDC 500mA 3.5VA JOD-35U-63 7VDC 600mA 4.2VA JOD-35U-64 7VDC 700mA 4.9VA JOD-35U-65 7VDC 800mA 5.6VA JOD-35U-66 7.5VDC 65mA 0.49VA JOD-35U-67 7.5VDC 100mA 0.75VA JOD-35U-68 7.5VDC 150mA 1.13VA JOD-35U-69 7.5VDC 200mA 1.5VA JOD-35U-70 7.5VDC 250mA 1.88VA JOD-35U-71 7.5VDC 350mA 2.63VA JOD-35U-72 7.5VDC 400mA 3.0VA JOD-35U-73 7.5VDC 500mA 3.75VA JOD-35U-74 7.5VDC 600mA 4.5VA JOD-35U-75 7.5VDC 700mA 5.25VA JOD-35U-76 8VDC 400mA 3.2VA JOD-35U-77 8VDC 500mA 4.0VA Model No. Rated Output Voltage Rated Output Current Rated Output JOD-35U-78 9VDC 60mA 0.54VA JOD-35U-79 9VDC 250mA 2.25VA JOD-35U-80 9VDC 350mA 3.15VA JOD-35U-81 9VDC 400mA 3.6VA JOD-35U-82 9VDC 450mA 4.05VA JOD-35U-83 9VDC 500mA 4.5VA JOD-35U-84 9VDC 600mA 5.4VA JOD-35U-85 10VDC 100mA 1.0VA JOD-35U-86 10VDC 200mA 2.0VA JOD-35U-87 10VDC 300mA 3.0VA JOD-35U-88 10VDC 400mA 4.0VA JOD-35U-89 10VDC 500mA 5.0VA JOD-35U-90 10VDC 600mA 6.0VA JOD-35U-91 12VDC 50mA 0.6VA JOD-35U-92 12VDC 250mA 3.0VA JOD-35U-93 12VDC 300mA 3.6VA JOD-35U-94 12VDC 350mA 4.2VA JOD-35U-95 12VDC 400mA 4.8VA JOD-35U-96 12VDC 450mA 5.4VA JOD-35U-97 12VDC 500mA 6.0VA JOD-35U-98 13.5VDC 200mA 2.7VA JOD-35U-99 13.5VDC 300mA 4.05VA JOD-35U-100 13.5VDC 350mA 4.73VA JOD-35U-101 13.5VDC 400mA 5.4VA JOD-35U-102 13.5VDC 200mA 2.76VA JOD-35U-103 14.5VDC 200mA 2.9VA JOD-35U-104 14.5VDC 300mA 4.35VA JOD-35U-105 14.5VDC 350mA 5.08VA JOD-35U-106 14.5VDC 400mA 5.8VA JOD-35U-107 15VDC 60mA 0.9VA JOD-35U-108 15VDC 100mA 1.5VA JOD-35U-109 15VDC 150mA 2.25VA JOD-35U-110 15VDC 200mA 3.0VA JOD-35U-111 15VDC 250mA 3.75VA JOD-35U-112 15VDC 300mA 4.5VA JOD-35U-113 15VDC 400mA 6.0VA JOD-35U-114 16VDC 100mA 1.6VA JOD-35U-115 16VDC 150mA 2.4VA JOD-35U-116 16VDC 200mA 3.2VA JOD-35U-117 16VDC 300mA 4.8VA JOD-35U-118 6VDC 450mA 2.7VA Connector Types I. D O. D Long Straight Right Angle Type No.             1 2.1 5.5 V V Barrel 2 2.5 5.5 V V Barrel 3   3.5   V Barrel 4 2.1 5.0 V V Barrel 5 2.5 5.0 V V Barrel 6 1.3 3.5 V V Barrel 7 1.0 3.5 V V Barrel 8 1.0 3.8 V V Barrel 9 0.7 2.35 9.5 V V New EIAJ Female 10 1.7 4.0 9.5 V V New EIAJ Female 11 1.7 4.75 9.5 V V New EIAJ Female 12 1.0 5.5 9.5 V V New EIAJ Female 13 1.4 6.5 9.5 V V New EIAJ Female ISO-9001 Certified Factory Voltages available in the charts above for wall mount, linear transformer based wall mount power supplies: 3 VAC 1 Amp 4.5 VAC 100 mA 4.5 VAC 200 mA 4.5 VAC 300 mA 4.5 VAC 400 mA 4.5 VAC 500 mA 9 VAC 5 VAC 6 VAC 7 VAC 7.5 VAC 8.5 VAC 10 VAC 12 VAC 13.5 VAC 14 VAC 15 VAC 16 VAC 18 VAC 20 VAC 24 VAC 6 VDC 7.5 VDC 9 VDC 12 VDC 5.8 VDC 3 VDC 4.5 VDC 5 VDC 1.25 VDC 7 VDC 8 VDC 13.5 VDC 13.8 VDC 14.5 VDC 15 VDC 16 VDC 18 VDC 20 VDC 24 VDC Volts AC Volts DC
