AC/DC and AC/AC Transformer Wall Mount Power Adapters 3 to 12 Watt

 AC/DC Wall mount power supplies

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!


Note: click here for all AC/AC wallmount power supplies in stock

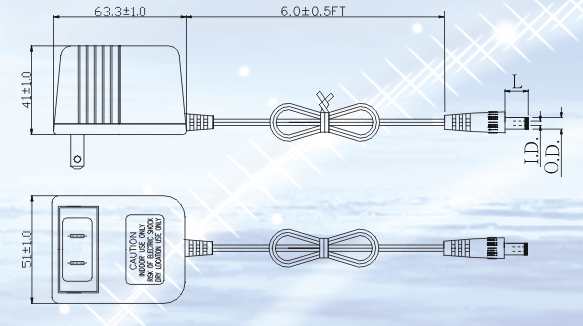

Dimensions of 6 to 25 Watt Wall Bumps, wall warts, wall mount power supplies

AC /DC Adpaters 3-12 Watt nominal, Wall Mount (JOD-41U)

Engineering with wall mount power supplies How to Design with Wall Mount Power Supplies
These transformer based power supplies are only available in quantities of 1000+ pieces per shipment. Call or write for a quote.
Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-41U-01A 18VAC 300mA 5.4VA
JOD-41U-02A 12VAC 500mA 6VA
JOD-41U-03A 9VAC 1A 9VA
JOD-41U-04A 12VAC 400mA 4.8VA
JOD-41U-05A 12VAC 800mA 9.6VA
JOD-41U-06A 3VAC 2A 6VA
JOD-41U-07A 4.5VAC 800mA 3.6VA
JOD-41U-08A 4.5VAC 900mA 4.05VA
JOD-41U-09A 4.5VAC 1A 4.5VA
JOD-41U-10A 5VAC 1A 5VA
JOD-41U-11A 6VAC 800mA 4.8VA
JOD-41U-12A 6VAC 1A 6VA
JOD-41U-13A 6VAC 1.2A 7.2VA
JOD-41U-14A 7.5VAC 800mA 6VA
JOD-41U-15A 7.5VAC 900mA 6.75VA
JOD-41U-16A 7.5VAC 1A 7.5VA
JOD-41U-17A 9VAC 400mA 3.6VA
JOD-41U-18A 9VAC 500mA 4.5VA
JOD-41U-19A 9VAC 600mA 5.4VA
JOD-41U-20A 9VAC 700mA 6.3VA
JOD-41U-21A 9VAC 800mA 7.2VA
JOD-41U-22A 10VAC 500mA 5VA
JOD-41U-23A 12VAC 600mA 7.2VA
JOD-41U-24A 15VAC 500mA 7.5VA
JOD-41U-25A 16VAC 500mA 8VA
JOD-41U-26A 24VAC 200mA 4.8VA
JOD-41U-27A 24VAC 300mA 7.2VA
JOD-41U-28A 6VAC 1.5A 9VA
JOD-41U-29A 12VAC 700mA 8.4VA
JOD-41U-30A 15VAC 600mA 9VA
JOD-41U-31A 5VAC 2A 10VA
JOD-41U-32A 6VAC 2A 12VA
JOD-41U-33A 9VAC 1.2A 10.8VA
JOD-41U-34A 12VAC 833mA 10VA
JOD-41U-35A 12VAC 900mA 10.8VA
JOD-41U-36A 12VAC 1A 12VA
JOD-41U-37A 15VAC 800mA 12VA
JOD-41U-38A 20VAC 500mA 10VA
JOD-41U-39A 24VAC 416mA 10VA
JOD-41U-40A 27VAC 250mA 6.75VA
JOD-41U-41A 6VAC 1.66A 10VA
JOD-41U-42A 20VAC 600mA 12VA
JOD-41U-43A 9VAC 900mA 8.1VA
JOD-41U-01 12VDC 500mA 6VA
JOD-41U-02 12VDC 300mA 3.6VA
JOD-41U-03 10VDC 300mA 3VA
JOD-41U-04 9VDC 500mA 4.5VA
JOD-41U-05 7.5VDC 500mA 3.75VA
JOD-41U-06 6VDC 500mA 3VA
JOD-41U-07 15VDC 300mA 4.5VA
JOD-41U-08 9VDC 350mA 3.15VA
JOD-41U-09 6VDC 700mA 4.2VA
JOD-41U-10 6VDC 1A 6VA
JOD-41U-11 7VDC 800mA 5.6VA
JOD-41U-12 6VDC 800mA 4.8VA
JOD-41U-13 4.5VDC 600mA 2.7VA
JOD-41U-14 4.5VDC 700mA 3.15VA
JOD-41U-15 4.5VDC 1000 mA 4.5 VA
JOD-41U-16 7.5 VDC 750 mA 5.25 VA
JOD-41U-17 4.5 VDC 800 mA 3.6 VA

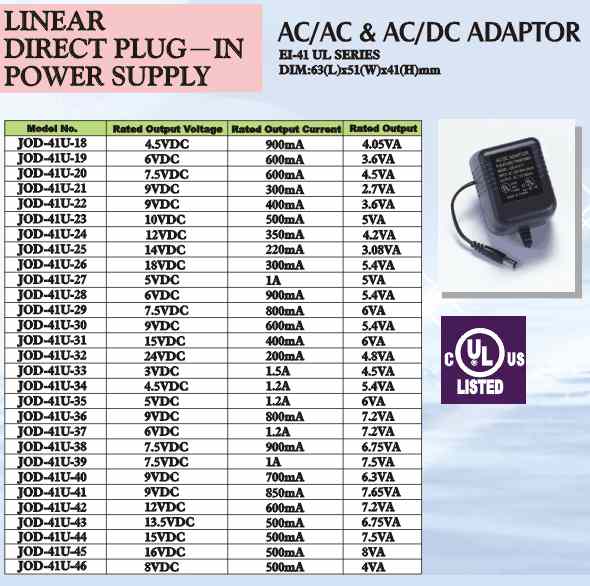

Model No. Rated Output Voltage Rated Output Current Rated Output
JOD-41U-18 4.5VDC 900mA 4.05VA
JOD-41U-19 6VDC 600mA 3.6VA
JOD-41U-20 7.5VDC 600mA 4.5VA
JOD-41U-21 9VDC 300mA 2.7VA
JOD-41U-22 9VDC 400mA 3.6VA
JOD-41U-23 10VDC 500mA 5VA
JOD-41U-24 12VDC 350mA 4.2VA
JOD-41U-25 14VDC 220mA 3.08VA
JOD-41U-26 18VDC 300mA 5.4VA
JOD-41U-27 5VDC 1A 5VA
JOD-41U-28 6VDC 900mA 5.4VA
JOD-41U-29 7.5VDC 800mA 6VA
JOD-41U-30 9VDC 600mA 5.4VA
JOD-41U-31 15VDC 800mA 6VA
EI-41 Series of Underwriter Laboratory certified adapters and power supplies
Connector Types
I. D O. D Long Straight Right Angle Type
No.
1 2.1 5.5 V V Barrel
2 2.5 5.5 V V Barrel
3   3.5   V Barrel
4 2.1 5.0 V V Barrel
5 2.5 5.0 V V Barrel
6 1.3 3.5 V V Barrel
7 1.0 3.5 V V Barrel
8 1.0 3.8 V V Barrel
9 0.7 2.35 9.5 V V New EIAJ Female
10 1.7 4.0 9.5 V V New EIAJ Female
11 1.7 4.75 9.5 V V New EIAJ Female
12 1.0 5.5 9.5 V V New EIAJ Female
13 1.4 6.5 9.5 V V New EIAJ Female
ISO 9001 Certified Factory

The following voltages are represented in the above tables of linear direct plug in power supplies (wall mount or wall bump)
3 VAC 1 Amp 4.5 VAC 100 mA 4.5 VAC 200 mA 4.5 VAC 300 mA 4.5 VAC 400 mA 4.5 VAC 500 mA 9 VAC 5 VAC 6 VAC 7.5 VAC
10 VAC 12 VAC 15 VAC 16 VAC 27 VAC 20 VAC 24 VAC 6 VDC 7.5 VDC 9 VDC
12 VDC 3 VDC 4.5 VDC 5 VDC 7 VDC 7.5 VDC 8 VDC 13.5 VDC 14 VDC 15 VDC
16 VDC 18 VDC 24 VDC Volts AC Volts DC
