September 30, 2014

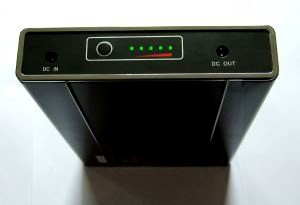

Lithium Ion 12 volt portable battery stations


lithium ion portable battery station These are complete portable DC power systems consisting of large lithium packs for portable 12V power both regulated and unregulated outputs, including output connectors, charger, and leather carrying bag. 45 watt hour lithium battery pack has built-in DC to DC converters and 45 watt hours 2.3 amp hour battery pack, portable battery power for battery portable applications.
For 1 pound lithium ion battery 5, 6, 7.5, 9, 12, 14, 16, and 19 volts click here
Bag style 7.5 to 22 AH battery pack with chargers 2.3 amp hour battery pack, portable battery power for battery portable applications.
For 7.5-22 Amp-Hour portable power station click here

Lithium ion chemistry
Aluminum case
Leather travel bag
Built-in safety circuitry prevents over charge, over discharge, or thermal runnaway
5 Stage battery fuel gauge
Recharge time 5 hours
Useful for CPAP machines, laptop computers, video and photography equipment, scientific instruments, portable entertainment systems

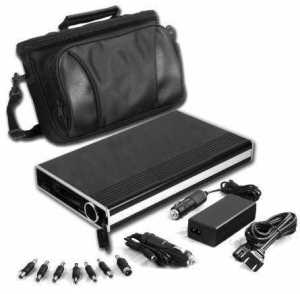

Price includes Battery, Bag,
AC charger and adapters
Please allow 1-5 days for shipping Quantity 1-10 Quantity 11-50
PMD-CP12266 266 watt-hour, 22AH 12V lithium ion battery pack. $572.50
$458.00
PMD-CP12266W 266 watt-hour, 22AH regulated 12V lithium ion battery pack $597.50
$478.00
PMD-CP12150 150 watt-hour 12.5AH lithium ion battery pack $370.00
$296.00
Cig-convert
cigarette lighter converter plug
Optional adapter to allow
a cigarette lighter plug to work with the
PMD-CB12266W
and PMD-CP12150
$8.00

Specifications:
  PMD-CP12266 PMD-CP12266W PMD-CP12150
Battery type Lithium Ion Lithium Ion Lithium Ion
Battery capacity 266 Watt-hours 266 Watt-hours 150 Watt-hours
Battery capacity 22AH, 12V 22AH, 12V 12.5AH, 12V
Nominal Voltage 12VDC 12VDC 12VDC
Ouput voltage range 12.6V-9V during discharge 12V regulated 12.6V-9V non-regulated
Maximum Output 12 amps 5 amps 12 Amps
Charger input voltage 100VAC-240VAC, 47-63Hz 100VAC-240VAC, 47-63Hz 100VAC-240VAC, 47-63Hz
Charge Current 2500 mAH 2500 mAH 2500 mAH
Charge time 5-6 hours 5-6 hours 3-4 hours
Fuel Gauge 5 step LED indicator 5 step LED indicator 5 step LED indicator
Weight 4.8 lbs, 2.2 kg 4.8 lbs, 2.2 kg 3.5 lbs, 1.6 kg
Size 1.3 x 5.9 x 9.8 inches, 33 x 150 x 250 mm 1.3 x 5.9 x 9.8 inches, 33 x 150 x 250 mm 1.3 x 5.9 x 9.8 inches, 33 x 150 x 250 mm
Output connector Cigarette lighter socket and adapters Barrel plug connector with adapters Barrel plug connector with adapters
  cigarette or power point style of output connector input/output on the regulated battery pack input/output on the regulated battery pack
      User's manual for the PMD-CP12150

Power Drawn from Battery
(Watts = Amps*Volts)
Continuous
Running Time
PMD-CP12266
PMD-CP12266 W PMD-CP12150
1 watt 266
Hours
266
Hours
150 Hours
5 watts 53 53 30
10 watts 26.6 26.6 15
15 watts 18 18 10
20 watts 13 13 7.5
30 watts 9 9 5
60 watts 4.4 N/A 2.5
90 Watts 3 N/A 1.7
120 watts 2.2 N/A 1.2
140 1.9 N/A 1.1

CPAP run time estimates Continuous
Running Time
PMD-CP12266
PMD-CP12266 W PMD-CP12150
Pressure in cm/H2O
4 25 hours 25 hours 18 hours
7 18.8 hours 18.8 hours 12.7 hours
10 14.3 hours 14.3 hours 9.7 hours
13 12.1 hours 12.1 hours 8.2 hours
16 10.5 hours 10.5 hours 7.1 hours
20 9.8 hours 9.8 hours 6.6 hours
24 7.1 hours 7.1 hours 4.8 hours

Adapters are available to convert the 12 volts from the PMD-CP1226 and PMD-CB12150 to other voltages, as are shown in the follwing table
If you need Maximum Current
(the PST-BP200 will source up to 120 watts)
Use PowerStream DC/DC Converter Model
1.5 Volts 0.35 Amps
350 mA
PST-DC1.5
1.5 Volts 3 Amps
3000 mA
PST-DC292
3 Volts 2.7 Amps
2700 mA
PST-DC292
3.3 Volts 2.7 Amps
2700 mA
PST-DC292
4.5 Volts 2.2 Amps
2200 mA
PST-DC292
6 Volts 2.2 Amps
2200 mA
PST-DC292
7.5 Volts 2.1 Amps
2100 mA
PST-DC292
9 Volts 2.1 Amps
2100 mA
PST-DC292
11 Volts 4.4 Amps
PST-DC4411
12 Volts regulated 4.4 Amps
PST-DC4411
15 Volts 2.5 Amps
2500 mA
PST-DC2171
15 Volts 6 Amps
6000 mA
PST-P90W
15 Volts 6 Amps
6000 mA
PST-SP09
16 Volts 5.6 Amps
5600 mA
PST-P90W
16 Volts 6 Amps
6000 mA
PST-SP09
18 Volts 2.5 Amps
2500 mA
PST-DC2171
18 Volts 5 Amps
5000 mA
PST-P90W
18 Volts 6 Amps
6000 mA
PST-SP09
19 Volts 4.7 Amps
4700 mA
PST-P90W
19 Volts 6.0 Amps
6000 mA
PST-SP09
20 Volts 4.5 Amps
4500 mA
PST-P90W
20 Volts 6 Amps
6000 mA
PST-SP09
21 Volts 2.5 Amps
2500 mA
PST-DC2171
22 Volts 4.1 Amps
4100 mA
PST-P90W
22 Volts 5.0 Amps
5000 mA
PST-SP09
24 Volts 2.5 Amp
2500 mA
PST-DC2171
24 Volts 3.75 Amps
3750 mA
PST-P90W
24 Volts 5 Amps
5000 mA
PST-SP09
48 Volts 2 Amps peak
1500 mA continuous
PST-DC1248
