450 Watt 12 volt DC Input PC ATX-24 pin or ATX-12 Style PC Power
Supply |
|
 |
|
450 watt DC Input ATX-12 Style computer power supplies for cars, solar and
battery power |
|
|
|
These are commercial and industrial grade power supplies with 12 volt DC input. They are useful for
applications where 12 vol t battery or solar power is available. For use in 12V cars, boats, motor homes, etc.
| Quantity |
Price
PSTC-12450 |
24 to 20 pin ATX adapter cable |
| 1 - 10 pieces |
$300.00
|
$4.00
|
| 11-100 |
$279.00 |
$3.00 |
| 101-500 |
$262.00 |
Call |
| 501+ |
Call |
Call |
Features
1. CE Mark, meets UL60950, TUV EN60950
2. DC powered
ATX 24 pin connector. 24 pin to 20 pin adapter cable available upon request.
3. Remote
ON/OFF
4. Built in EMI Filter, meets FCC Part 15 Class B, CISPER22, EN55022 Class B
5. "Power Good" signal
6.
Terminal strip for DC input
7.
Click here
for a -48VDC input ATX-12 power supply
8. DC 12 volt nominal, 9-18 VDC INPUT
9. Fully ATX compatible
10.Remote Sense for Main Output
11.100% ATE Test
12.100% Hi-pot Test
13.100% Burn-in
14.Warranty : One year
15. Fully isolated, 1500 VAC for 1 second input to output, 1500 VAC for
1 second input to frame ground.
16. Mean time between failure >55,000
hours
17. Dual ball bearing fan
Quick glance
Specs |
Input Range |
Max
Power |
+5 V |
+3.3 V |
+12 V |
-5 V |
- 12 V |
+5 V SB |
| PSTC-12450 |
9-18 VDC, 12 volts nominal |
450 W |
50A |
30 A |
30 A |
n/a |
1 A |
2 A |
| Detailed Specification: |
| Detailed Specifications |
V / A |
V / A |
V / A |
V / A |
V / A |
VSB /A |
|
| PSTC-12450 |
|
+5V/50.0A |
+12V/30.0A |
-5V/n/a |
-12V/1.00A |
+3.3V/30.0A |
+5V/2A |
|
| |
Amps |
50 Amps |
30 Amps |
n/a |
1 Amps |
30 Amps |
2 Amp |
|
| |
Minimum Load |
1.5 Amps |
0.2 Amps |
|
0 Amps |
0 Amps |
0 Amps |
|
| |
Note:Combined Total Power From +3.3V And +5V rails Not to
Exceed 250W. Total Power 450W Max. |
| Output |
|
Line Regulation |
|
1% |
|
|
|
| |
|
Load Regulation |
|
5% |
|
|
|
| |
|
Ripple & Noise |
|
1% |
|
|
|
| |
|
Hold-up time |
|
16ms |
|
|
|
| Risetime |
|
|
|
<20mS |
|
|
|
| Input |
12 Volts |
Input Voltage |
12Vdc nominal, 9-18 volts range |
| |
|
Input Current |
12V/57Amp maximum |
| |
|
Inrush Current |
72 Amps cold start |
| Protection |
|
Over Power Protection |
130% ± 10% |
| |
|
Over Voltage Protection |
Yes, for +5V, +12V, +3.3V |
| |
|
Short Circuit Protection |
Yes (All Outputs shutdown and latch off) |
| Environment |
|
Operating Temperature |
00C To
500C |
| |
|
Storage Temperature |
-200C To
850C |
| Efficiency |
|
65% typical at full load, 12 VDC input |
|
Typical at full load |
| Safety |
|
Meets UL/cUL |
|
UL1950 |
| |
|
Meets TUV |
|
EN60 950 |
| EMI |
|
FCC |
|
Class B |
| |
|
CISPR |
|
Class B |
| |
|
EMC |
|
CE Mark |
| Dimension |
|
L x W x H |
86 x 150 x 140 ( mm ) |
| Weight |
|
2.3 kg |
5 pounds |
| Connectors |
|
1 each ATX 24 pin (24 to 20 pin adapter available)
8 each P4 4pin 12 volt
HDD, DVD
1
each 4pin
1 each Serial ATX
1 each 8 pin process
For ATX 20 and 24 Pinout Diagrams Click Here
|
|
| Cable length |
|
550 mm nominal |
|

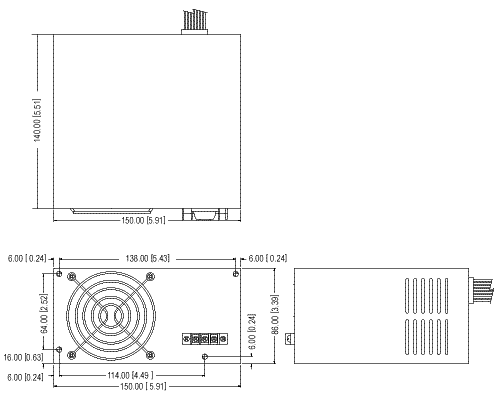

Dimensions of ATX-12 computer power supply with 12 volt input:
|
|
|
|
|
|
