These are industrial grade power supplies with 24
volt DC input. They are useful for applications where battery or solar power is available. These are regulated switching power
converters. For use in 12 volt cars, see our 12V/24 volt converters.
Features
1. CE, FCC Marked
2. DC powered ATX 2.03 version 20 pin
connector included (ATX-12V)
3. Remote ON/OFF
4. Built in EMI Filter
5. "Power Good" signal
6. Terminal
strip for DC input with polarity protection
7.
Click here for a -48VDC input ATX-12
power supply
8. DC 24 volt nominal, 18-32 VDC INPUT
9. Remote Sense for Main Output
10.100% ATE Test
11.100%
Hi-pot Test
12.100% Burn-in
13.Warranty : One year
| PYKD-6250DC24 |
| Output Voltage |
Regulation |
Output Current |
|
Ripple & Noise |
|
Load |
Line |
Cross |
300W |
| Min. |
Max. |
|
+5V |
±5% |
±1% |
±5% |
1.5A |
25A |
50mV |
|
+12V |
0.2A |
10A |
120mV |
|
+3.3V |
0A |
14A |
50mV |
|
-5V |
0A |
1A |
120mV |
|
-12V |
±8%
|
0A |
1A |
150mV |
|
+5VSB |
±5%
|
0A |
2A |
50mV |
Total combined power on +3.3V & +5V |
140 |
Watts |
Total continuous output power |
260 |
| Connectors: three disk drive plugs, one 20 pin
ATX, one miniture disk drive plug, one 4 pin ATX-12 connector |
For ATX Pinout
Diagram Click Here
|
|
| Dimensions |
150 mm x 140 mm x 85 mm |
|
This picture is not of the PYKD-6250DC24, but is included to show what the various plugs look
like:

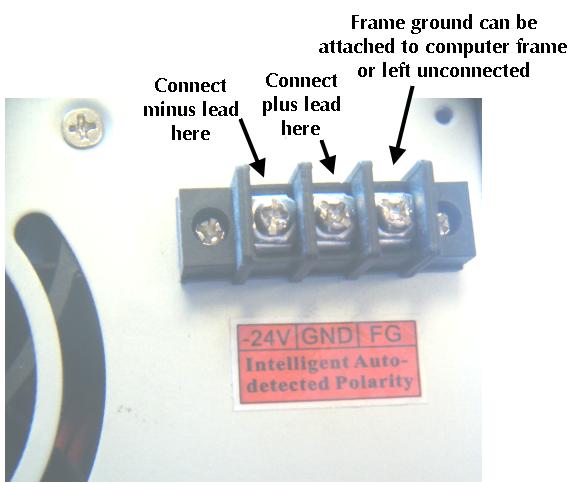

Connecting to the PYKD series power supplies:
Advantages:
 DC input PSII Form Factor ATX Supply.
High efficiency car PC power supply.
Excellent line and load regulation.
Wide input voltage
range. |
