  48 Volt Lithium Iron Phosphate High Current Rechargeable Lithium Ion BatteriesDue to limited resources we cannot accept new customers for these cells, sorry,(except for 12V 55AH packs, click here) Home: Battery pack, battery charger, DC-DC converter, battery pack
Large lithium ion battery packs
Large Format Lithium Iron Phosphate Cells, 4 AH to 100 AH
12 volt large lithium ion packs from PowerStream with high capacity and high power
12 Volt high-power, high capacity lithium iron phosphate packs
24 Volt large lithium ion cells from PowerStream with high capacity and high power
24 Volt high-power, high capacity lithium iron phosphate packs
large lithium ion cells from PowerStream with high capacity and high power
36 Volt high capacity lithium iron phosphate packs


Lithium Iron Phosphate batteries for sale
 Lithium Iron phosphate batteries are safer than Lithium-ion cells, and are available in 5 to 100 AH packs with much longer life than any commercialy available battery.

For more battery resources from PowerStream click here:More DC/DC Converters

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!



These li-ion cells and batteries not only have high capacity, but can deliver high power. High-power lithium iron phosphate batteries are now a reality. They can be used as storage cells or power sources.

In addition, Lithium Iron Phosphate batteries are among the longest lived batteries ever developed. Test data in the laboratory show up to 2000 charge/discharge cycles.

All of the following products are available by special orer. Chargers and battery management boards are available. We are now offering total turn-key solutions for almost any capacity and voltage made of the following building blocks. Delivery is typically 4 weeks.


48 Volt Li-Fe-PO4 Packs

Model

ITEM

DESCRIPTION

Q'TY (PCS)

Optional Size, depending on layout

Weight

UNIT PRICE

Part number and

Total price for pack and charger

Lead time

5Ah/48V LiFePO4 battery pack

Lithium iron phosphate batteries

16 cells of 5Ah/3.2V in series

 16

368 x 51 x 73 mm

14.5 x 2 x3 inches

3.2 k g
7 lbs		 $380 LiFP-48V5AH
$608
Complete with battery management system and charger

20-25 days

Battery Management System (PCB)

Maximum discharging current: 15A

 1 BMBLIFP-16S15A   $107

Continuous discharging current: 15A

Charger

Input: 110VAC (230VAC available on special order)

       $121

Output: 3A, 60.8VDC


10Ah/48V LiFePO4 battery pack

Lithium iron phosphate batteries

16 pcs of 10Ah/3.2V in series

16

427x100x105 mm

16.8 x 3.9 x 4.1 inches

7.3 kg, 16 lbs

 $762 LiFP-48V10AH
$990
Complete with battery management system and charger

Out of stock, 4 week delivery

Battery Management System (PCB)

Maximum discharging current: 30A

1

 BMBLIFP-16S20A   $107

Continuous discharging current: 20A

Charger

Input: 110VAC (230VAC available on special order)

Output: 3A, 60.8VDC

1

         $121


20Ah/48V LiFePO4 battery pack

Lithium iron phosphate batteries

16 pcs of 20Ah/3.2V in series

16

480 x 100 x 60mm

19 x 4 x 2.4 inches

12.8kg

28 lbs

 $1494 LiFP-48V20AH
$1722
Complete with battery management system and charger

In Stock

Battery Management System (PCB)

Maximum discharging current: 30A

1

 BMBLIFP-16S20A   $107

Continuous discharging current: 20A

Charger

Input: 110VAC (230VAC available on special order)

Output: 3A, 60.8VDC

1





  $121


55 Ah/48V LiFePO4 battery pack

Lithium iron phosphate batteries

16 pcs of 55Ah/3.2V in series

16

360 x 240 x 190 mm

14.2 x 9.4 x 7.4 inches

35.2kg

77.6 lbs

 $4108 LiFP-48V55AH
$4335
Complete with battery management system and charger

35-40 days

Battery Management System (PCB)

Maximum discharging current: 30A

1

 BMBLIFP-16S20A



 $107

Continuous discharging current: 20A

Charger

Input: 110VAC (230VAC available on special order)

Output: 3A, 60.8VDC

(25 hour charge rate)

1





 $121


110Ah/48V LiFePO4 battery pack



Lithium iron phosphate batteries

16 pcs of 110Ah/3.2V in series

16

620 x 240 x 190 mm

28.4 x 9.4 x 7.4 inches

61kg

135 lbs

 $8059 LiFP-48V110AH
$8287
Complete with battery management system and charger

35-40 days

Battery Management System (PCB)

Maximum discharging current: 30A

Continuous discharging current: 20A

1

 BMBLIFP-16S20A



 $107

Charger

Input: 110VAC (230VAC available on special order)

Output: 3A, 60.8VDC

(40 hour charge rate)

1





 $121

Other combinations of the battery management systems listed here and the cells listed on the power lithium battery cell page are also available upon request.






48 volt 10 AH pack
This is a photo of a 10 amp hour 48 volt pack.

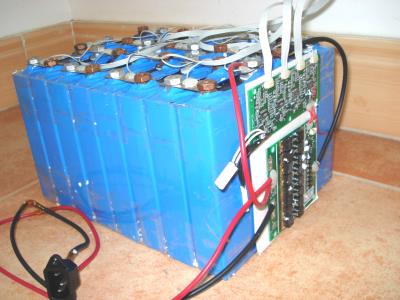

48 volt 20 amp hour lithium iron phosphate pack
This is a photo of a 20 amp hour 48 volt pack.

Advantages:

OEM Battery Chargers State of the art lithium-iron-phosphate packs cell with laser welded stainless steel cases, no polymer, rubber, or plastic seals.

Universal Power Input OEM Power Supplies and OEM Battery Chargers High Discharge rates

Universal Power Input OEM Power Supplies and OEM Battery Chargers Cycle life 1000 to 2000 cycles.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Much safer than any other lithium ion technology
