6 cell NiCad and NiMH charger C/10 style with tamiya connector

NiCad and NiMH charger for 6 cell packs

More NiMH and NiCad Chargers

6 cell 2000 mAH packs for use with this charger

Wall mount chargers 3 cell to 12 cell versions

Wall Mount 1 Amp Consumer style NiMH/NiCad Chargers

NiCad and NiMH Charger for 4,5,6,7,8,9,10,11,12 cell packs, autosensing

NiCad-NiMH Battery Chargers. tamiya style connector

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!

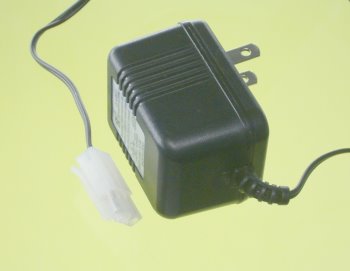

PST-YXD0-6 6 cell NiMH or NiCad charger
Quantity	1-10	11-50	51-100	100+
Price	$5.40	$4.50	$3.00	Call
6 cell 2000 mAH packs for use with this charger	Part Number Crosman 6 cell pack

Direct replacement charger for Crosman soft air products that use battery packs.

Overnight 6 cell NiMH and NiCad pack Charger

Battery Type	Nickel Cadmium or Nickel Metal Hydride packs
Charge rate	200 mA
Pack Size	2000 mAH to 4000 mAH, 6 cells
Charge time for a 2000 mAH pack	10-12 hours
Charge time for a 4000 mAH pack	20-24 hours
Charge voltage	7.2 volts nominal
Input Voltage	120 VAC 50/60 Hz
Algorithm	Trickle charge, no termination
Compliance agencies	UL, cUL, Class 2
Size	55 mm x 43 mm x 54 mm including prongs 2.2 x 1.7 x 2.2 inches
Weight	156 grams, 5.5 oz, 0.34 pounds
Connector	Standard Tamiya style two-prong connector

Specifications:

Input Voltage: 100-120 Vac, 50/60 Hz (

Output current: 200mA typical controlled by charger

Temperature: -10 to +45° C, Operating -40 to +70° C, non-Operating. Don't charge Nickel based cells if their temperature is below 0° or over 45° C.

Humidity: Indoor 90% R.H. @ 35° Celsius, Non-Condensing
