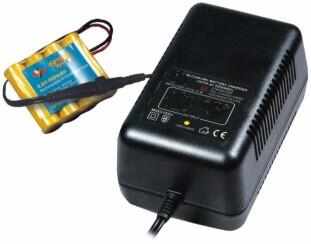

This a semi-custom -delta V detecting fast charger with a microprocessor controlled charge, sense LED display and preset time-out.

Input	110V, 60 Hz
Battery Voltage	Factory selected 4.8, 6, 7.2, 8.4, 9.6, 10.8, 12
Maximum Charge Current	1000 mA Maximum
Maximum battery capacity	Some of the chargers time-out after 6 hours, limiting the size of the battery pack to 6AH or less. Others time-out after 16 hours, allowing battery packs up to 16AH to be charged. See the chart below.
Charge Termination Method	-Delta V
LED Indication	Black = No Battery Red = Fast Charging Green = Charged + Trickle Charge
Size	122 x 76 x 60 mm
Shipping Weight	856 grams
Net Weight	800 grams
Protection	Reverse Polarity Protection
Connectors The chargers in stock all have either the "plug" side of the "Tamiya" connector or the power connector kit. For the Tamiya connector the "receptacle" side is on the battery pack. Other connectors are available with quantity purchase.	"Tamiya" Connector Plug of the Tamiya connector system (female or receptical side). For more information on this connector system click on the drawing.
Power connector kit	More details below

Model	Battery Voltage	Connector Style (See connectors below)	# of Cells in Battery	Maximum Fast Charge Current	Pack Maximum Capacity in Amp Hours	Trickle Charge Current	Price 1-10	Price 11-100	Price 101-500	Price 501-1000	Price 1001+
PST-5830-2-3	2.4V	Power Assortment	2	800 mA	6 AH	35 mA	Obsolete click here for replacement charger
PST-5830-3-Tamiya	3.6V	Tamiya styleª	3	800 mA	6 AH	35 mA	Obsolete, click here for replacement product
PST-5830-4-Tamiya	4.8V	Tamiya styleª	4	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-4-3	4.8V	Power Assortmentª	4	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-5-Tamiya	6.0V	Tamiya styleª	5	1000 mA	6 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-5-3	6.0V	Power Assortmentª	5	1000 mA	6 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-5-3-16H	6.0V	Power Assortmentª	5	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-6-Tamiya	7.2V	Tamiya styleª	6	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-6-3-16H	7.2V	Power Assortmentª	6	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-7-Tamiya	8.4V	Tamiya styleª	7	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-7-16H	8.4V	Power Assortmentª	7	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-8-Tamiya	9.6V	Tamiya styleª	8	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-8-3	9.6V	Power Assortmentª	8	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-8-16H	9.6V	Power Assortmentª	8	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-9-Tamiya	10.8V	Tamiya styleª	9	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-9-16H	10.8V	Power Assortmentª	9	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-10-Tamiya	12.0V	Tamiya styleª	10	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-10-3	12.0V	Power plug Assortment ª	10	1000 mA	6 AH	35 mA	$9.99	$9.99	Closeout sale
PST-5830-10-16H-Tamiya	12.0V	Tamiya styleª	10	1000 mA	16AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-10-3-16H	12.0V	Power plug Assortment ª	10	1000 mA	16AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-12-3	14.4V	Power plug Assortment ª	12 cells	1000 mA	6 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50
PST-5830-12-16H/1	14.4V	Power plug Assortment ª	12 cells	1000 mA	16 AH	35 mA	$25	$17.65	$15.30	$12.30	$10.50

ª Listed are the connector types which are on the shelf (see below). We can change these connectors for you in our shop if needed. See the connector discussion below for details.
Volume Pricing:
Connectors:
In high volumes we can put on any connector you want. The chargers that are in stock have the following connector:

Tamiya style connector for battery packs and chargers

Tamiya style receptacle for battery packs and chargers, sometimes used in power supplies

These are known in the RC world as the "Tamiya Connector." Note the polarity. Mating connectors are available at Radio Shack or electronic distributors.

NEW! Connectors for product development:
Several of our wall mount chargers are now available with a switchable power-plug style connector.

Connectors Included with the Power Assortment, most others are in stock as well
2.5 mm audio-style		3.5 mm audio-style
3.5 mm OD x 1.35mm ID Barrel		4.0 mm OD x 2.5 mm ID Barrel
5.5 mm OD x 1.5 mm ID Barrel		5.5 mm OD x 2.5 mm OD Barrel
16 connector set available extra, click here.

Advantages:

Inexpensive wall mount adapter with peak charge control circuit.

Adaptable to any voltage and battery size.

Single LED changes color to indicate state of charge.

	Note: these chargers are available retail, wholesale, and OEM. No minimum.
