NiCad and NiMH Coin Cells

Custom design and manufacture of state-of-the-art battery packs, battery chargers, UPS, and power supplies for OEMs in a Hurry

For more battery engineering resources click here:

PowerStream offers the following nickel cadmium and nickel metal hydride rechargeable coin cells to original equipment manufacturers. We have supplied many thousands of these cells to many happy customers in the USA, Korea, Japan, and Europe. We will sell these to anyone, but the minimum order is $200 unless marked "retail." Terms FOB China, payment with order. Prices are subject to change, please inquire for current prices. 3-6 weeks delivery time. Shorter times (3-6 days) will be quoted upon request.

Features:
(1) High energy density.
(2) Standard operating voltage, 1.2 V depending upon loading resistance.
(3) Wide operation temperature range, -20 °C to +60 °C .

Note: We don't inflate our specifications as many companies do. The capacity in amp-hours is guaranteed, and will be exceeded most of the time.

The M series of secondary (rechargeable) nickel cadmium and NiMH button cells gives gives long shelf life, and high energy density in a small cell. Applciations include laptop computers, PDA, IC cards, electric clocks, watches, remote control keys, cameras, toys, etc.

NiMh Button cell Type

Type	Nominal capacity	Nominal voltage	Standard charge mA*H		Standard discharge	Cut off voltage	Dimension mm (max.)		weight	Trickle Charge				Samples in Stock, pricing
	mAh	V	mA	H	current mA	V	dia.	H	g	Current (mA)	Price Quantity 100+	Price Quantity 1000+	Price Quantity 10,000+
20H	20	1.2	2	16	4	1.0	11.6	3.1	1.7	0.6-1	$0.43	$0.36	$0.285	Samples in Stock, $4.00 each
File Available
40H	40	1.2	4	16	8	1.0	11.6	5.4	2	1.2-2	$0.36	$0.30	$0.24	Samples in Stock $4.00 each
File Available
80H	80	1.2	8	16	16	1.0	15.2	6.10	3.5	2.4-4	$0.43	$0.36	$0.285	Samples in Stock, $4.00 each
File Available
110H	110	1.2	11	16	22	1.0	15.2	7.8	4.5	3.3-5.5	$0.50	$0.42	$0.33	Samples in Stock, $4.00 each
File Available
160H	160	1.2	16	16	32	1.0	23.5*15.1	5.7	6	4.8-8	$0.53	$0.45	$0.35	Samples in Stock, $4.00 each
File Available
250H	250	1.2	25	16	50	1.0	25.2	6.4	11	7.5-12.5	$0.56	$0.47	$0.375	Samples in Stock, $4.00 each
File Available
330H	330	1.2	33	16	66	1.0	25.2	8.8	15	9.9-16.5	$0.95	$0.79	$0.64	Samples in Stock, $4.00 each
File Available

NiCad Button cell Type

Type	Nominal capacity	Nominal voltage	Standard charge mA*H		Standard discharge	Cut off voltage	Dimension mm (max.)		weight	Trickle Charge
	mAh	V	mA	H	current mA	V	dia.	H	g	Current (mA)	Price Quantity 100+	Price Quantity 1000+	Price Quantity 10,000+
60K	60	1.2	6	14	12	1.0	15.0	6.1	3.1	1.8	$0.29	$0.24	$0.195
File Available
100K	100	1.2	10	14	22.0	1.0	15.0	7.5	4	3.0	$0.38	$0.32	$0.26
File Available
120K	120	1.2	12	14	24.0	1.0	23.3*15.0	6.0	5.3	3.6	$0.38	$0.32	$0.26
File Available
170K	170	1.2	17	14	36.0	1.0	25.1	6.25	8.4	5.1	$0.43	$0.36	$0.29
File Available
280K	280	1.2	28	14	56.0	1.0	25.1	8.45	11.0	8.4	$0.74	$0.62	$0.50
File Available

Caution:
(1) Do not short-circuit
(2) Do not over-discharge , dent, crush, or burn the battery.
(3) The battery should be removed from the instrument when battery is depleted.
(4) Do not try to solder directly to the battery .
(5) Do not disassemble the batteries.
(6) Do not use outside specified temperature range
(7) For circuit board mounting use through hole tabs, surface mount tabs, or button cell holders.
(8) Do not solder directly to the cell, use capacitive discharge spot welding or use our spot welded tabs.
(9) Tabbed cells and packs can be hand soldered, wave soldered or flow soldered as long as the preheat is no more than 10 seconds and the solder time is no more than 10 seconds at 265°C.

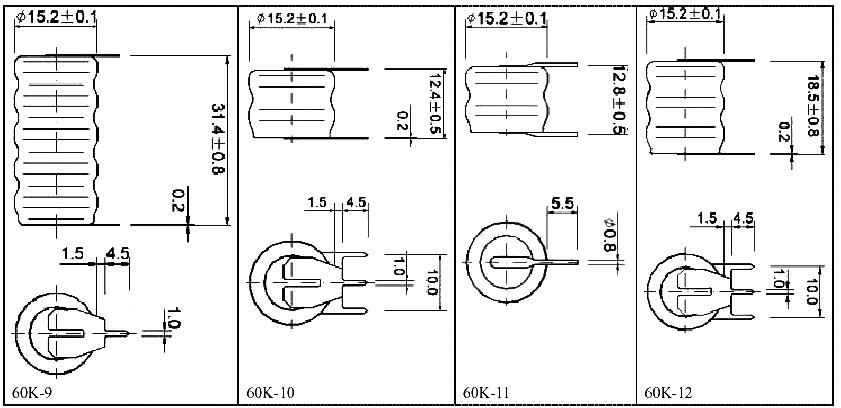

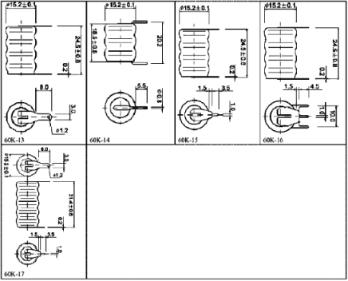

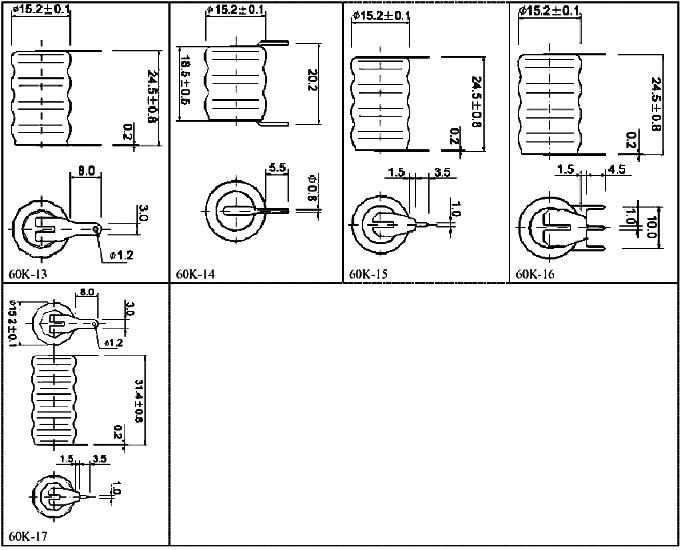

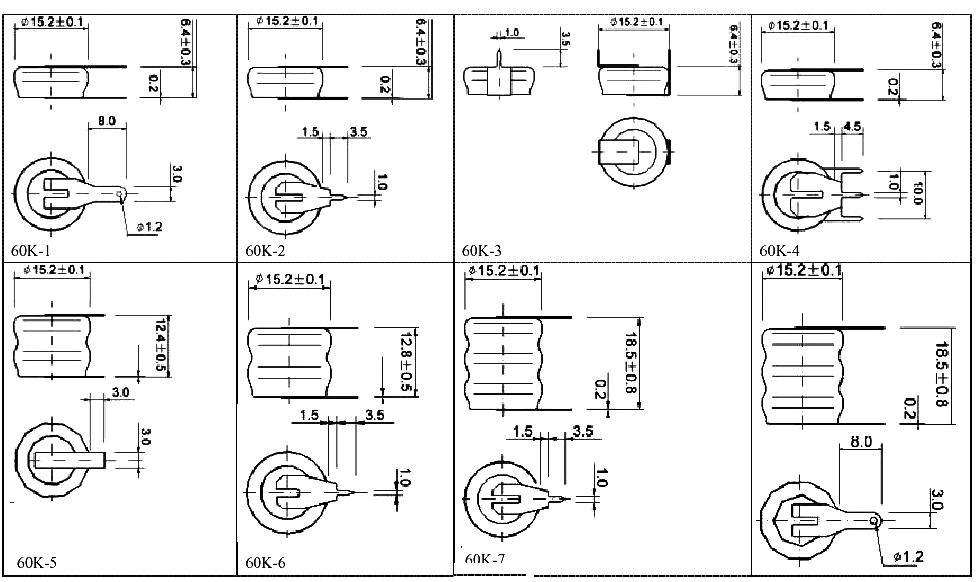

60H pins and configurations

Click here for enlarged view of the coin cell pins and configurations

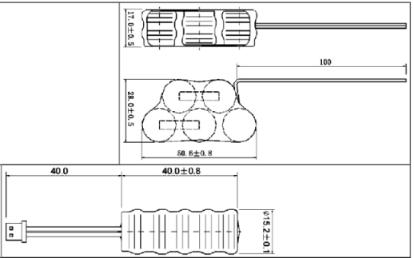

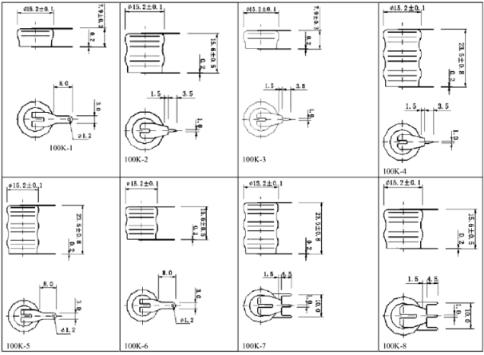

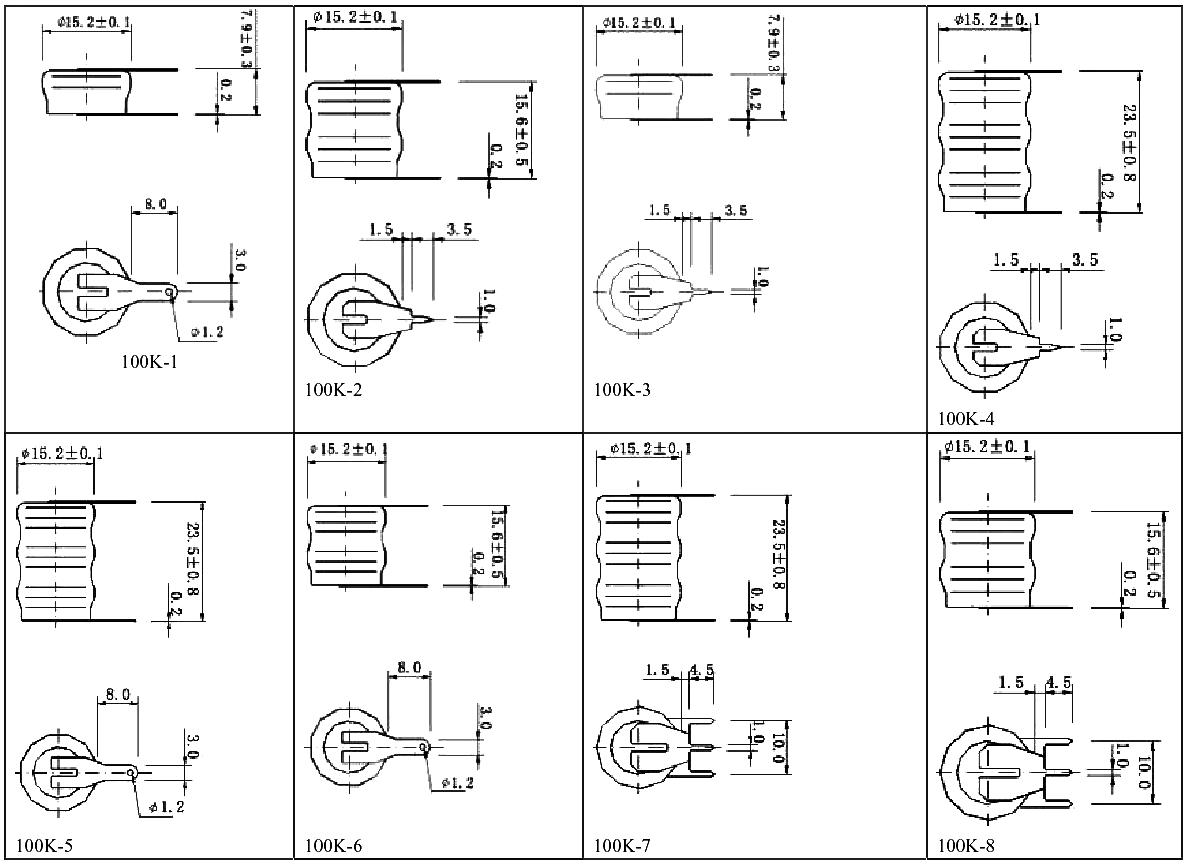

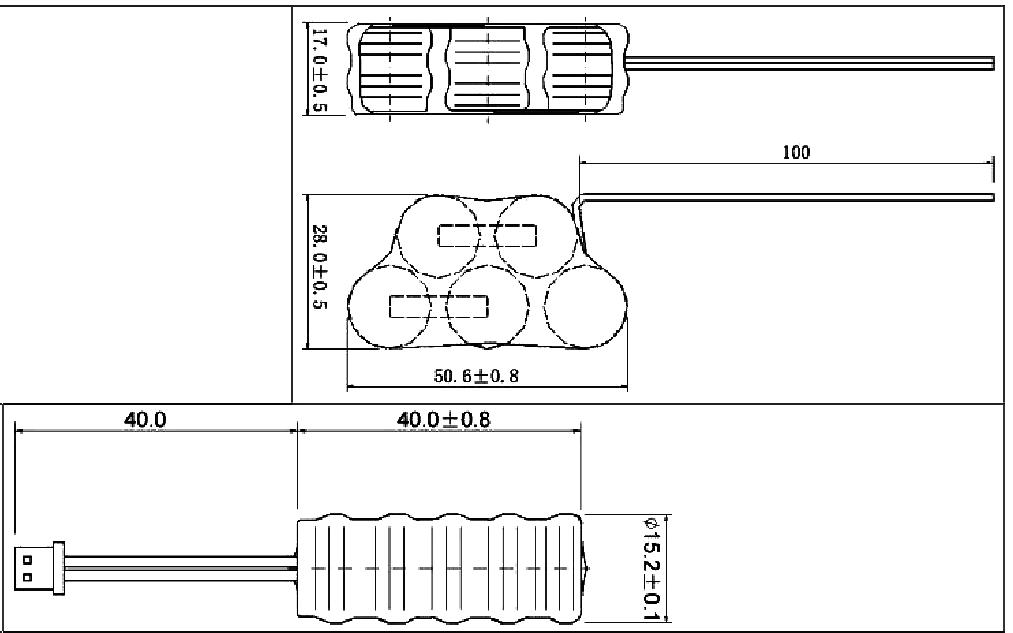

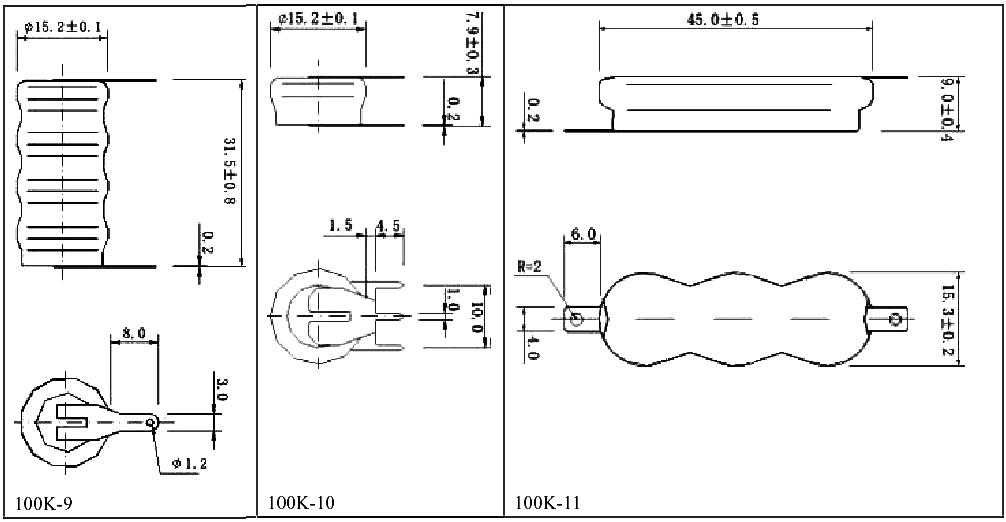

100k and 100H pins and configurations

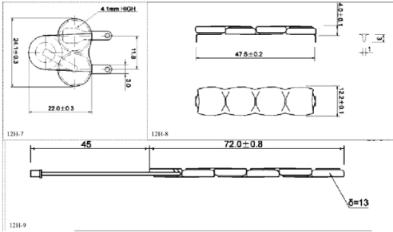

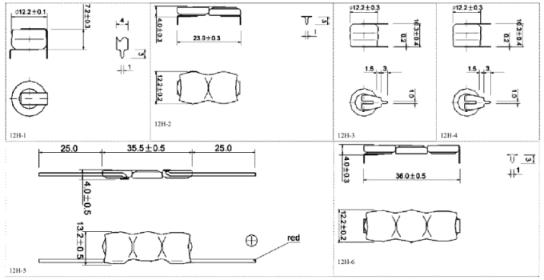

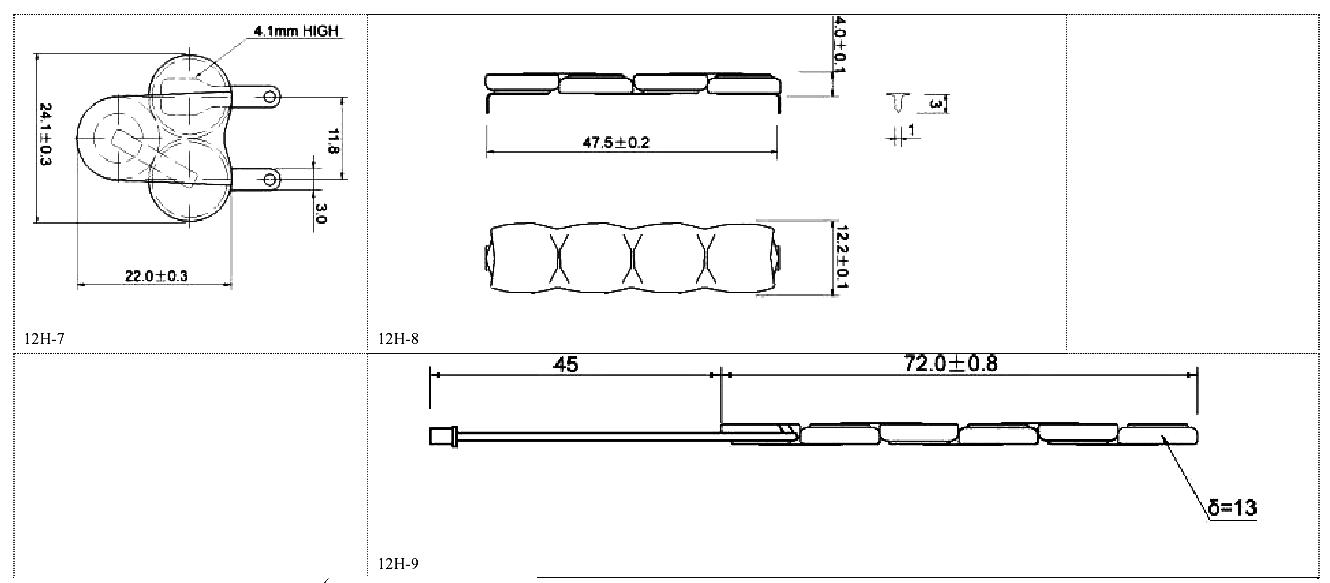

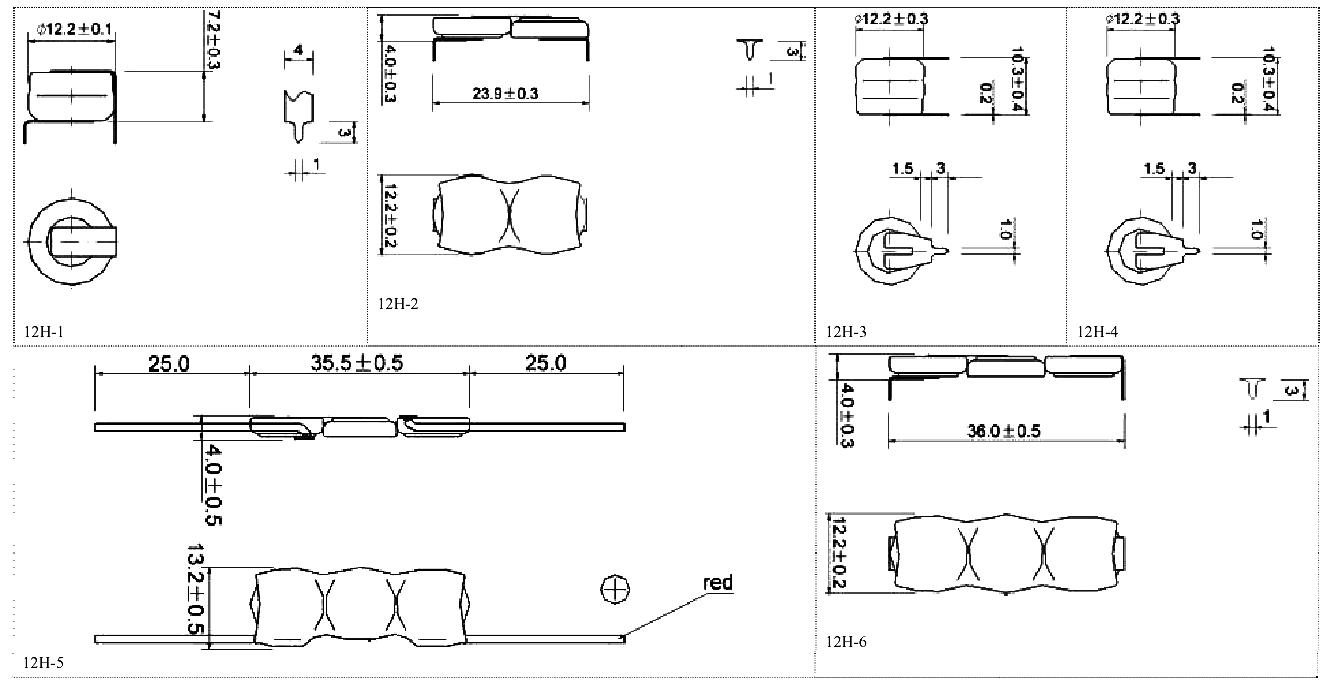

12H pins and configurations

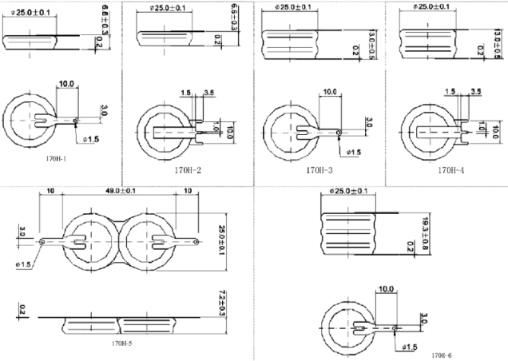

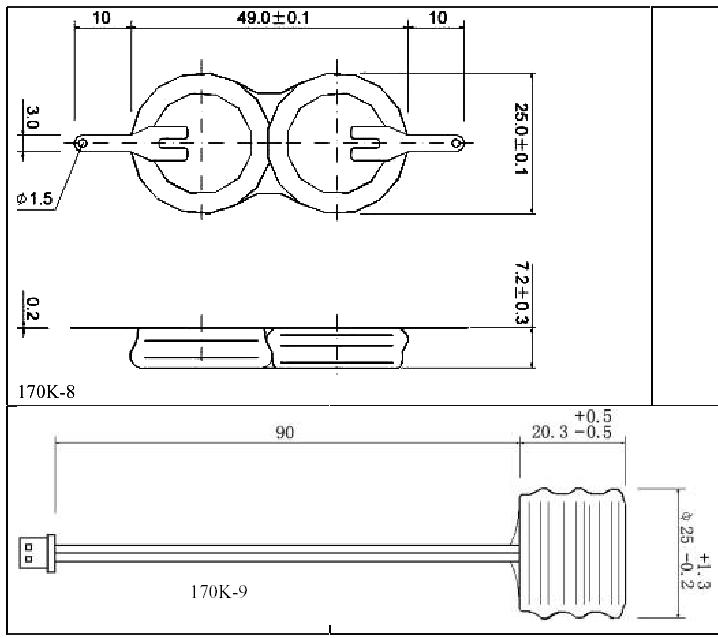

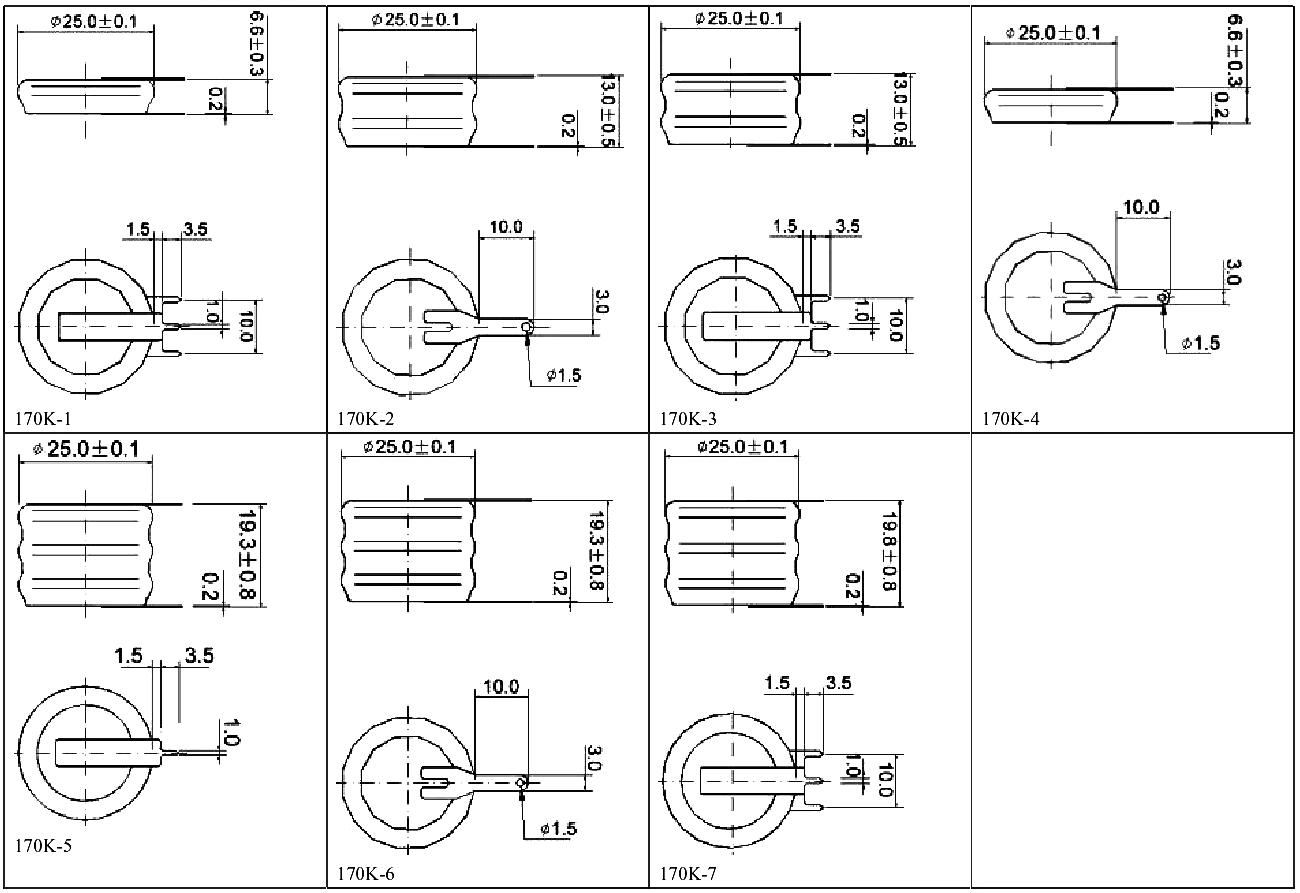

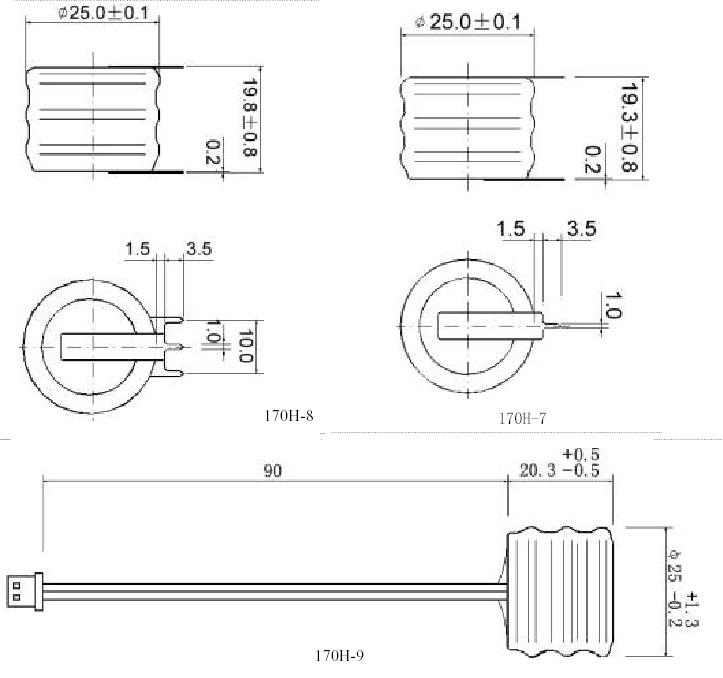

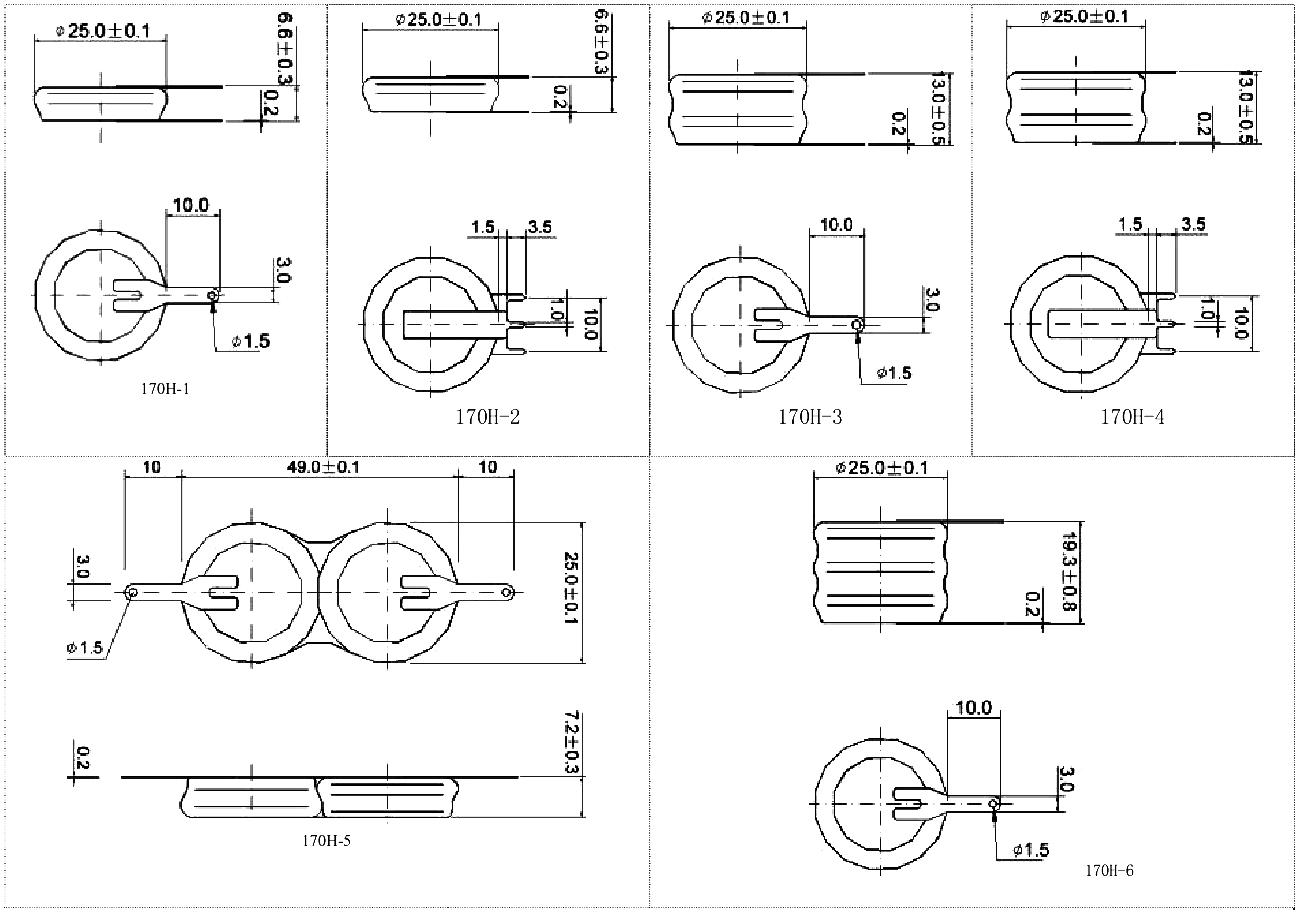

170H and 170K pins and configurations

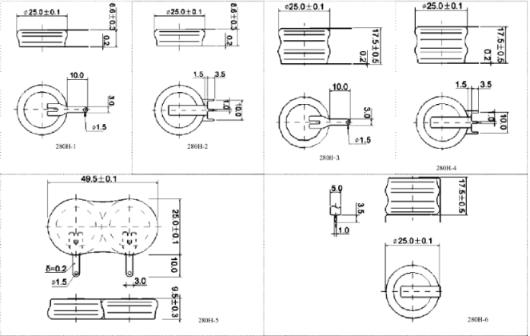

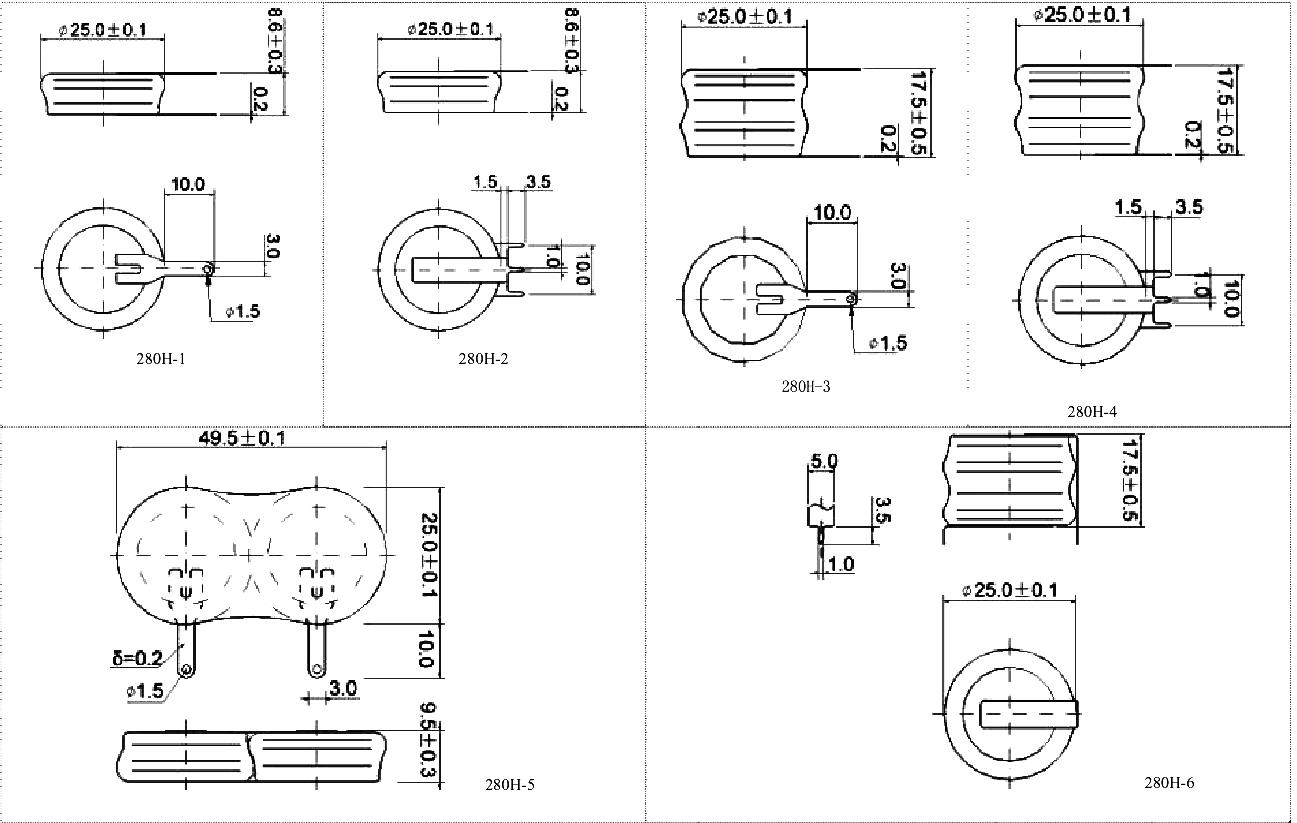

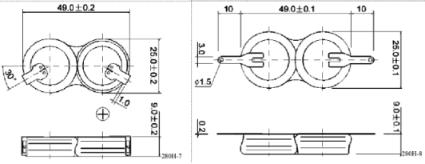

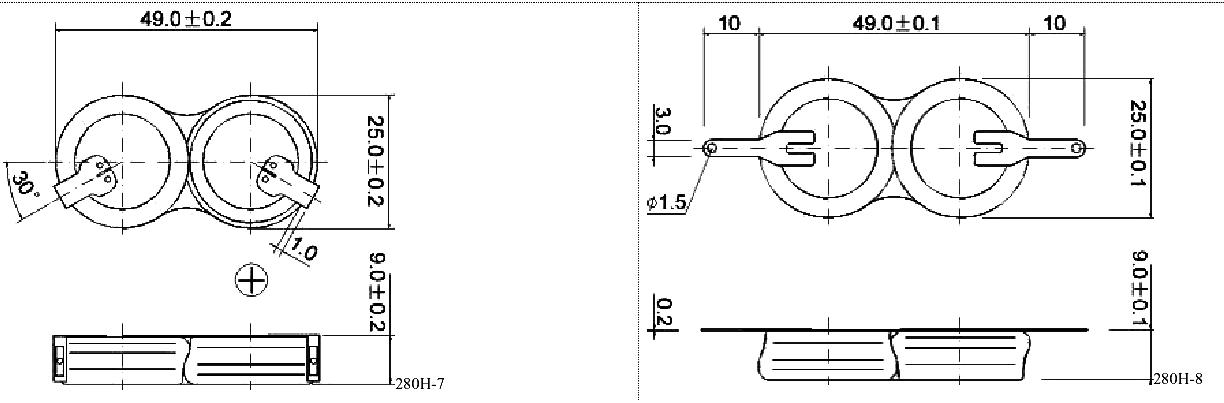

280H and 280K pins and configurations
