Programmable Power Supplies No longer available from PowerStream Home: Custom DC/DC Converters, Power Supplies, Battery Chargers, Battery Packs
Click here to see front panel
Shown with detatchable handle bars
For Fixed voltage 36 volt 3 amp power supply click here.36 volt AC/DC power supply, 100 watts 3 amps

Custom design and manufacture of state-of-the-art battery chargers, UPS, and power supplies for OEMs in a hurry!


PowerStream is no longer selling this product, but it may be available from competing dealers.
PST-3645A
Output Voltage 4 - 36 V range 0 - 4 V range
Output Current 0 - 3A 0 - 3 A
Resolution Voltage 10 mV 1 mV
Resolution Current 1 mA 1 mA
Line Regulation Voltage </-2% + 10 mV < .01 % + 3mV
Line Regulation Current <0.02% + 8 mA
Load Regulation Voltage <0.02%+10 mV
Load Regulation Current <0.02%+8 mA
Computer Interface RS-485 standard, RS-232 adapter included if requested, or upgrade to the USB adapter for $20 extra
Ripple&Noise <=1 mV rms
Setting Reaction Time Up (50%-90%) 10mS max
Down(90%-50%) 30 mS max
Storage Configurations 10 settings EEPROM
Power source 110/220V 50/60 Hz Selectable
Size 250 x 212 x 88
Weight 6 kg
Baud Rate 4800, 9600, 19200, 38400
Address 0 - 254

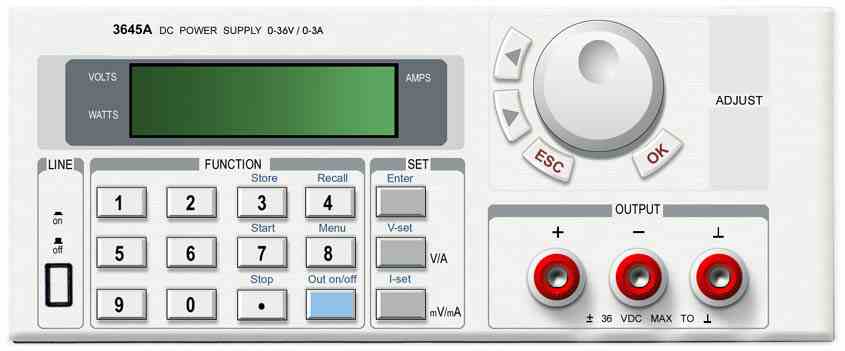

Front Panel Controls
  1. Voltage setting
  2. Maximum current setting
  3. Power supply output ON/OFF
  4. Configuration Store (Voltage, current, max voltage, max power, keyboard status, com address)
  5. Configuration Recall
  6. Voltage limit setting
  7. Keyboard sound
  8. Communications setting
  9. Lock keyboard (password locking if desired)
  10. Maximum power setting
  11. The save selection set

Software Included

  1. Active X for Visual C++, Visual Basic, Delphi, and Labview, HP Vee, and Agilent Vee
  2. Windows based Virtual Instrument Panel for remote control.




Click here to to download the power supply control software:Manual view

Click here to to download a Labview Example using ActiveX:Manual view
Click here to to download the using ActiveX:Manual viewDownloads
  Most Recent Next Most Recent Old Summary
Front Panel   Front Panel:Click here to see the front panel
Programming
Protocol
new programming protocol:Manual view programming protocol:Manual view old programming protocol:Manual view
Users Manual   Click here to read the new manual:Manual view Click here to read the old manual:Manual view
USB Drivers for use with USB Adapter USB Drivers in .RAR Archive
ActiveX software   Click here to to download the New ActiveX control power supply control software:Manual view Click here to to download the old ActiveX control power supply control software:Manual view Summary of the downloadManual view
Delphi Demo   Click here to to download the Delphi Demo software:Manual view
PowerMS DII Demo   Click here to to download PowerMS DII Demo software:Manual view   Summary of the download
Communications Test Program Test Program

Advantages:

OEM Battery Chargers Inexpensive Programmable Power Supply.

OEM Battery Chargers Knob, keypad and computer interface (through com port).

OEM Power Supplies Excellent line and load regulation.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Store up to 10 configurations internally.

Universal Power Input OEM Power Supplies and OEM Battery Chargers PC Control Software Included.
