5 VDC, 2Amp switching tiny wall mount power adapter

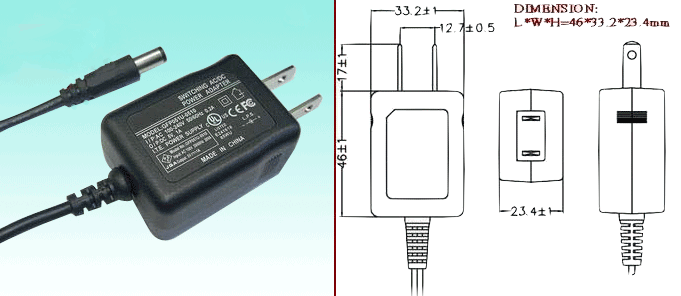

slimline 5 volt power adapter 12 volt power supply catalog pageFor 5 volt 2 amp set top power supply click here 5 volt power supplies AC/DCFor more 5 volt power supplies click here
This is a miniature, first quality, switching regulated AC/DC adapter with stable output, 5 volt 10W output. The input prongs are fixed USA/Japanese style 2-prong, and so is double insulated. It the right size and shape to fit side-by-side in power strips or AC sockets.


In Stock, order online or call to order for quantities greater than 100 pieces

Prices
Quantity 1-10 11-50 51-100 101+
Price PST-AC0520W
5 Volt 2Amp wall mount power adapter with 5.5x2.1mm barrel connector

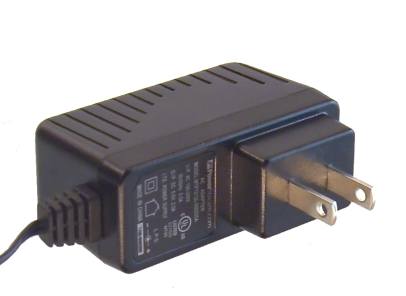

slimline 5 volt power adapter
$14.50
$12.25 $10.60 Call
PST-WX12
Optional 12 piece Output adapter barrel plug kit
plugset
$7.00

Polarity reversing adapter for center-negative products
5.5x2.1mm barrel connector polarity switcher
$3.50

ZHJX002 adapters with a barrel connector input and screw terminal output
To adapt the barrel connector to screw terminals
$2.50 each


Specifications
GENERAL SPECIFICATIONS
Size 71 mm x 53 mm x 29 mm, (2.8 x 2 x 1.1 inches) not including prongs
Weight: 60 grams, 2 ounces
Cooling: Free air convection
Construction: Impact resistant thermo-plastic enclosure case
Safety Agency: UL, cUL, LPS, FCC, PSE JQA, double insulated, indoor use, ITE
Temperature Range: 0-40°C
Storage Temperature -20°C to +84°C
Operating Humidity: 5-95% Relative Humidity
HiPot Withstand Voltage 2000V
Insulation Resistance >100 Megohm at 500 Volts DC
INPUT SPECIFICATION
Input Voltage: Input Voltage: rating 100-120VAC (this switchmode adapter is unusual for the limited range of approved input voltage. The 240 volt capacitors won't fit into this small package).
Input Connector: WM1 (U.S.2-blade) as shown
Input Frequency: 47-63Hz.
EMI: FCC
OUTPUT SPECIFICATION
Output Voltage: 5.0 Volts
Output Current: 2000 mA
Output Wattage: 10 Watts typical
Line Regulation: 0.1% typical with input 100VAC to 120 VAC
Load Regulation: ±2-3% typical, 5% max
Overload Protection (OLP) Fully protected against output overload or short circuit. OLP is set at about 120-150% of the rated continuous output, automatic recovery.
Output Cord 6 foot, 2 conductor 20 AWG wire, VW-1, 80°C
Output Connector: 5.5 mm OD x 2.1 mm ID, Center Positive
Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.
plugset
  • 2.35 OD x 0.7 ID Barrel
  • 3.0 OD x 1.1 ID Barrel
  • 3.5 OD x 1.35 ID Barrel
  • 4.0 OD x 1.7 ID Barrel
  • 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03
  • 5.0 mm OD x 3.5 mm ID with center pin
  • 5.5 mm OD x 1.5 mm ID type 2 Barrel
  • 5.5 mm OD x 2.5 mm ID Barrel
  • 6.3 OD x 3.0 ID center pin Barrel
  • 6.0 OD x 4.4 ID center pin Barrel
  • 7.4 mm OD x 5.0 center pin ID Barrel
  • 7.9 OD x 5.6 ID center pin Barrel
NOTES: (1) All measurements are at nominal input, full load, and +25°C unless otherwise specified. (2) Load regulation is measured at 100VAC or 120VAC in percentage to indicate the change in output voltage as the load is varied from half load to full load (±%). (3) The exact obtainable load regulation depends upon the output cord selected and load current.

OEM Battery Chargers Universal input switchmode adapter with fixed 5 volt 2 amp, 10 watt output voltage.

OEM Battery Chargers High efficiency miniature power adapter for networking and telecom use.

OEM Power Supplies Excellent line and load regulation.
