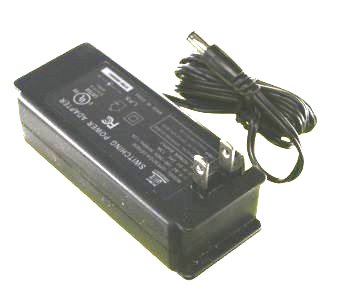

5 VDC, 4000 mA Switchmode miniature wall mount Power
Supply |
|
 |
|
Wall plug Universal
AC regulated switchmode 5 volt power supply, 4A |
|
|
|
.This is a compact, high quality,
switchmode regulated power supply with stable output, 20 watts continuous. It has a fixed AC
plug.
Prices
.Slimline wall-mount format for placing side-by-side mounting in a
wall socket or power strip.
| Part Number |
PST-AC0540 (GPF-241DA-054EW) |
| Parameter |
Data |
| Output |
5 Volts DC |
| Output Power |
20 Watts max, 4.0 amps, 4000 mA |
| Input Voltage |
100-240 VAC, 50-60 Hz |
| Input Frequency |
50-60 Hz |
| Temperature |
0° to 40° C Operating |
| Size |
Approximately 44 x 29 x 105 mm
(1.75 x 1.2 x 4.1 inches) |
| Weight |
7.8 oz (221 gms) |
| Agency Approvals |
UL, cUL, PSE, LPS, FCC, indoor use, double insulated |
| Output connector |
5.5 x 2.1 mm x 12 barrel connector, center positive
a variety of
slip-on semi-permanent connectors are available below. |
| Output cord |
6 foot, 18 AWG, SPT-1, FT2 105°C zip cord |
| AC plug |
Fixed AC Plug, fold down style, 2 prong USA style |
|
Optional DC Plugs slip over the 5.5 x
2.1 mm connector if desired.
|
|
| 3.5 OD x 1.35 ID Barrel, 4.75 mm OD x 1.75 mm ID Barrel
EIAJ-03, 5.0 mm OD x 3.5 mm ID with center pin, 5.5 mm OD x 2.5 mm ID type 2, 5.5 mm OD x 2.5
mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD x 3.0 mm ID Barrel |
|
NOTES: (1) All measurements are at nominal input, full load, and +25°C
unless otherwise specified. (2) Load regulation is measured at 230Vac or 120Vac in percentage
to indicate the change in output voltage as the load is varied from half load to full load
(±%). (3) The exact obtainable load regulation depends upon the output cord selected and
load current.
Advantages:
 Universal input
switchmode power supply with fixed 5 volt output voltage.
High efficiency
miniature power supply for networking and telecom use.
Excellent line
and load regulation. |
|
|
|
|
|
