12 VDC, 500
mA switch mode slimline wall mount power supply |
|
 |
|
Wall plug Universal AC regulated switchmode 12
volt power supply, 500 mA maximum. |
 For more 12
volt power supplies click here |
|
|
For more power
supply products from PowerStream click here:
Custom design and manufacture of
state-of-the-art battery chargers, UPS, and power supplies for OEMs in a
hurry!

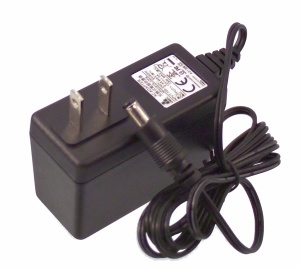

This is a tiny,
high quality, switchmode regulated power supply with stable output, 12 watts
continuous. It has a fixed AC plug as shown. It is so small that it can fit
side-by-side in any wall plug or any power strip.
In Stock, order
online or call to order for quantities greater than 100 pieces
Prices
.Slimline wall-mount format for placing
side-by-side mounting in a wall socket or power strip.
|
|
| GENERAL SPECIFICATIONS |
|
| Safety Compliance: |
UL, cUL, LPS, FCC, IV, PSE JQA,
double insulated, indoor use, ITE |
| Size |
45 mm x 33 mm x 24 mm, (1.8 x 1.3 x 1 inches) not
including prongs |
| Weight: |
60 grams, 2 ounces |
| Cooling: |
Free air convection |
| Construction: |
Impact resistant thermo-plastic enclosure
case |
| Temperature Range: |
0-40°C |
| Storage Temperature |
-20°C to +84°C |
| Operating Humidity: |
5-95% Relative Humidity |
| HiPot Withstand Voltage |
2000V |
| Insulation Resistance |
>100 Megohm at 500 Volts DC |
| INPUT SPECIFICATION |
|
| Input Voltage: |
Input Voltage: rating 90-264VAC |
| Input Connector: |
WM1 (U.S.2-blade) as shown |
| Input Frequency: |
47-63Hz. |
| EMI: |
FCC |
| OUTPUT SPECIFICATION |
|
| Output Voltage: |
12.0 Volts |
| Output Current: |
0.5 Amps |
| Output Wattage: |
6 Watts typical |
| Line Regulation: |
0.1% typical with input 100VAC to 240 VAC |
| Load Regulation: |
±2-3% typical, 5% max |
| Overload Protection (OLP) |
Fully protected against output overload or short
circuit. OLP is set at about 120-150% of the rated continous output, automatic
recovery. |
| Output Connector: |
5.5 mm OD x 2.1 mm ID
 |
| Output Cord |
6 foot, 2 conductor 20 AWG |
NOTES: (1) All measurements are at nominal input,
full load, and +25°C unless otherwise specified. (2) Load regulation is
measured at 230Vac or 120Vac in percentage to indicate the change in output
voltage as the load is varied from half load to full load (±%). (3) The
exact obtainable load regulation depends upon the output cord selected and load
current.
| A 5.5 x 2.1 mm barrel connector
is supplied |
|
|
|
| Optional DC Plugs slip over the 5.5 x
2.1 mm connector if desired. |
 |
| 3.5 OD x 1.35 ID Barrel, 4.75 mm OD x 1.75
mm ID Barrel EIAJ-03, 5.0 mm OD x 3.5 mm ID with center pin, 5.5 mm OD x 2.5 mm
ID type 2, 5.5 mm OD x 2.5 mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD
x 3.0 mm ID Barrel |
|
Advantages:
 Universal input switchmode
power supply with fixed 12 volt output voltage.
High efficiency miniature
power supply for networking and telecom use.
Excellent line and load
regulation. |
|
|
|
|
|
