24 VDC, 1900mA
and 2500 mA switchmode miniature desktop power supplies |
|
 |
|
Desktop
Universal AC regulated switchmode 24 volt power supply, 1900 ma or 2500 ma maximum. |
|
More 24 volt
power supplies click here.
|
|
.This is a compact, high quality,
switchmode regulated power supply with stable output, 48 watts continuous. It has a removable
AC cord and universal AC input (100VAC to 240VAC).
Prices
| Quantity |
1-10 |
11-50 |
51-100 |
101-500 |
501+ |
| Price PST-AC2419
(includes USA 3 prong power
cord) |
$22.50
|
$17.25 |
$15.60 |
$13.75 |
$11.94 |
Price PST-AC2425
includes US 2
prong power cord |
$32.00
|
28.10 |
24.50 |
$22.85 |
$18.40 |
|
Kit of
7 optional output barrel plugs
|
$7.00
|
|
|
|
|

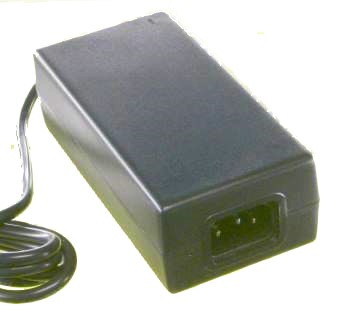

Desktop power supply 2 x 1.2 x 4.3 inches with input socket for
using international cords.
|
|
|
| GENERAL SPECIFICATIONS |
PST-AC2419 |
PST-AC2425 |
| Safety Compliance: |
UL, cUL, FCC, CE, GS, PSE, LPS, double insulated,
indoor use |
UL, cUL, FCC, CE, GS, TUV double insulated, indoor
use |
| Size |
29 mm x 45 mm x 97 mm, (1.1 x 1.7 x 3.8 inches) |
120 mm x 45 mm x 35 mm (4 x 1.4 x 1.75 inches) |
| Weight: |
170 grams, 6 ounces |
260 grams, 9.3 ounces |
| Cooling: |
Free air convection |
Free air convection |
| Construction: |
Impact resistant thermo-plastic enclosure case |
Impact resistant thermo-plastic enclosure case |
| INPUT SPECIFICATION |
|
|
| Input Voltage: |
Input Voltage: rating 100-240VAC |
Input Voltage: rating 100-240VAC |
| Input Connector: |
IEC C7, two prong input socket allows cords for any country to be
used, the North American cord is included.
 |
IEC C7, two prong input socket allows cords for any country to be
used, the North American cord is included.
|
| Input Frequency: |
47-63Hz |
47-63Hz |
| OUTPUT SPECIFICATION |
|
|
| Output Voltage: |
24.0 Volts |
24.0 Volts |
| Output Current: |
1.9 Amps, 1900 mA |
2.5Amps, 2500 mA |
| Output Wattage: |
46 Watts typical |
60 Watts typical |
| Output Connector: |
5.5 mm OD x 2.1 mm ID
 |
5.5 mm OD x 2.1 mm ID
|
| Output Polarity |
Center Positive |
Center Positive |
| Output Cord |
6 foot, 2 conductor 20 AWG FT1 zip cord type AWM |
6 foot, 2 conductor 18 AWG FT2 SPT-1 zip cord |
| A 5.5 x 2.1 mm barrel connector is supplied |
|
|
|
|
Optional DC Plugs slip over the 5.5 x
2.1 mm connector if desired.
|
|
| 3.5 OD x 1.35 ID Barrel, 4.75 mm OD x 1.75 mm ID Barrel
EIAJ-03, 5.0 mm OD x 3.5 mm ID with center pin, 5.5 mm OD x 2.5 mm ID type 2, 5.5 mm OD x 2.5
mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD x 3.0 mm ID Barrel |
|
Advantages:
 Universal input
switchmode power supply with fixed 24 volt output voltage.
High efficiency
miniature power supply for networking and telecom use.
Fully
regulated power supply is useful for devices requiring 24 volts and 2000 mA or
less. |
|
|
|
|
|
