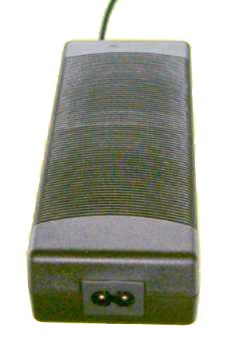

36 VDC, 3 Amp Switchmode 100 Watt Power Supply

Quantity	1-10	11-50	51-100	101+
Price PST-AC3603 includes US mickey mouse cord	$105.00	$98.00	$80.00	Call
Kit of 7 optional output barrel plugs	$6.00

PST-AC3603	36 Volt 3 Amp power supply
GENERAL SPECIFICATIONS
Safety Compliance:	CE, Double Insulated
Power Density:	4.1 Watts / Cubic inch
Size	63 mm x 165 mm x 38 mm, (2.5 x 6.5 x 1.5 inches)
Weight:	410 grams, 15 ounces
Cooling:	Free air convection
Construction:	Impact resistant thermo-plastic enclosure case
INPUT SPECIFICATION
Input Voltage:	Input Voltage: rating 100-245VAC
Input Connector:	IEC 2 prong removable AC cord
Input Frequency:	50/60 Hz.
Input Current:	0.6A @ 115VAC, 0.30A @ 230Vac typical
OUTPUT SPECIFICATION
Output Voltage:	36.0 Volts
Output Current:	3 Amps
No load overhead	1.9 watts at 110VAC input 3.3 watts at 220VAC input
Excellent Efficiency	88% at half load, 87% at full load
Output Wattage:	100 Watts typical
Output Connector:	5.5 mm OD x 2.1 mm ID

A 5.5 x 2.1 mm barrel connector is supplied
Optional DC Plugs slip over the 5.5 x 2.1 mm connector if desired.			3.5 OD x 1.35 ID Barrel, 4.75 mm OD x 1.75 mm ID Barrel EIAJ-03, 5.0 mm OD x 3.5 mm ID with center pin, 5.5 mm OD x 2.5 mm ID type 2, 5.5 mm OD x 2.5 mm ID Barrel, 6.0 OD x 4.5 ID center pin, 6.5 mm OD x 3.0 mm ID Barrel

Universal input switchmode power supply with fixed 36volt output voltage and 100 watts.

High efficiency small power supply for POE and telecom use.

Excellent line and load regulation.
