Heavy Duty Industrial and Military Grade 12V to 24V Lead Acid Battery Charger 30Amp

DC-DC Converters	Heavy Duty 25 Amp DC to DC Converter	Water Proof 25 Amp DC to DC Converter	Military Grade 25 Amp DC to DC Converter
Part Number and Price	PBCD800-12-24 $1625 Allow up to 15 days for shipping	PBCD800-12-24-V $1868 Allow up to 15 days for shipping	PBCD800-12-24-MIL $2112 Allow up to 15 days for shipping	Part Number
Input Voltage	10.5 to 14 VDC	10.5 to 14 VDC	10.5 to 14 VDC	Input Voltage)
Max Input Current at Full Load	60A	60 A	60Amps	Max Input current at No Load
Output Voltage	27.2 VDC For charging 24V lead acid batteries	27.2 VDC For charging 24V lead acid batteries	27.2 VDC For charging 24V lead acid batteries	Output Voltage
Max Output Current(s)	23 Amps at 10.5V input 30.8 Amps at 14V input	23 Amps at 10.5V input 30.8 Amps at 14V input	23 Amps at 10.5V input 30.8 Amps at 14V input	Max Output Current
Max Output Power	Output amps = Vin/Vout * 60 amps	Output amps = Vin/Vout * 60 amps	Output amps = Vin/Vout * 60 amps	Max Output Power (10 Minutes)
Duty Cycle	100%, 24 hours a day	100%, 24 hours a day	100%, 24 hours a day
Type of Battery Charged	Standard SLI, deep cycle lead acid, VRLA (valve regulated lead acid), AGM and Gel Cells	Standard SLI, deep cycle lead acid, VRLA (valve regulated lead acid), AGM and Gel Cells	Standard SLI, deep cycle lead acid, VRLA (valve regulated lead acid), AGM and Gel Cells
Annunciation	Dry contact relay indicates output failure Audible & visual indicators for constant current, low input voltage, low output	Dry contact relay indicates output failure Audible & visual indicators for constant current, low input voltage, low output	Dry contact relay indicates output failure Audible & visual indicators for constant current, low input voltage, low output	Max Output Power (continuous)
Low Voltage Input Alarm	10.5V	10.5 V	10.5 Volts
Output Overvoltage Crowbar	32.0V ± 1V	32.0 V ± 1V	32.0 Volts ± 1V
Output current limit?	Yes, voltage foldback to keep current within range	Yes	Yes	Output current limit?
Operating Temperature Range	-40°C to +55°C	-40°C to +55°C	-40°C to +55°C	Operating Temperature Range
Humidity	0-95% Relative Humidity	0-95% Relative Humidity	0-95% Relative Humidity
Efficiency	>90 % at maximum output	>90 %	>90 %	Efficiency
Line Regulation	<±0.05V	<±0.05 V	<±0.05 Volts	Line Regulation
Load Regulation	<±0.05V	<±0.05 V	<±0.05 Volts	Load Regulation
Switching frequency	kHz	kHz	kHz	Switching frequency
Output ripple noise	<50 mV rms	<50 mV rms	<50 mV rms	Output ripple noise
Noise inserted on the input terminals	<50mV rms	<50 mV rms	<50 millivolts rms
Isolation	Common negative >500 volts isolation from case to any terminal	Common negative >500 volts isolation from case to any terminal	Common negative >500 volts isolation from case to any terminal
Remote power on/off	No	No	No	Remote power on/off
Input Fuse	40A AGC x 2	40 A AGC x 2	40 Amp AGC x 2
Connections	3/8" steel studs	3/8" steel studs	3/8" steel studs
Protection	Over Voltage , Over Current, Current Limiting, Short Circuit Automatic Recovery, Reverse Polarity Input, Reverse Battery Protection, Over Load, Over Temperature Shut Down, Input Undervoltage Shutdown, Output Overvoltage Crowbar	Over Voltage , Over Current, Current Limiting, Short Circuit Automatic Recovery, Reverse Polarity Input, Reverse Battery Protection, Over Load, Over Temperature Shut Down, Input Undervoltage Shutdown, Output Overvoltage Crowbar	Over Voltage , Over Current, Current Limiting, Short Circuit Automatic Recovery, Reverse Polarity Input, Reverse Battery Protection, Over Load, Over Temperature Shut Down, Input Undervoltage Shutdown, Output Overvoltage Crowbar	Protection
Dimensions	413 x 356 x 141 (16.25 x 14 x 5.56 inches) Including terminals and flange the total length is 18.06 inches	413 x 356 x 141 (16.25 x 14 x 5.56 inches) Including terminals and flange the total length is 18.06 inches	413 x 356 x 141 (16.25 x 14 x 5.56 inches) Including terminals and flange the total length is 18.06 inches	Dimensions

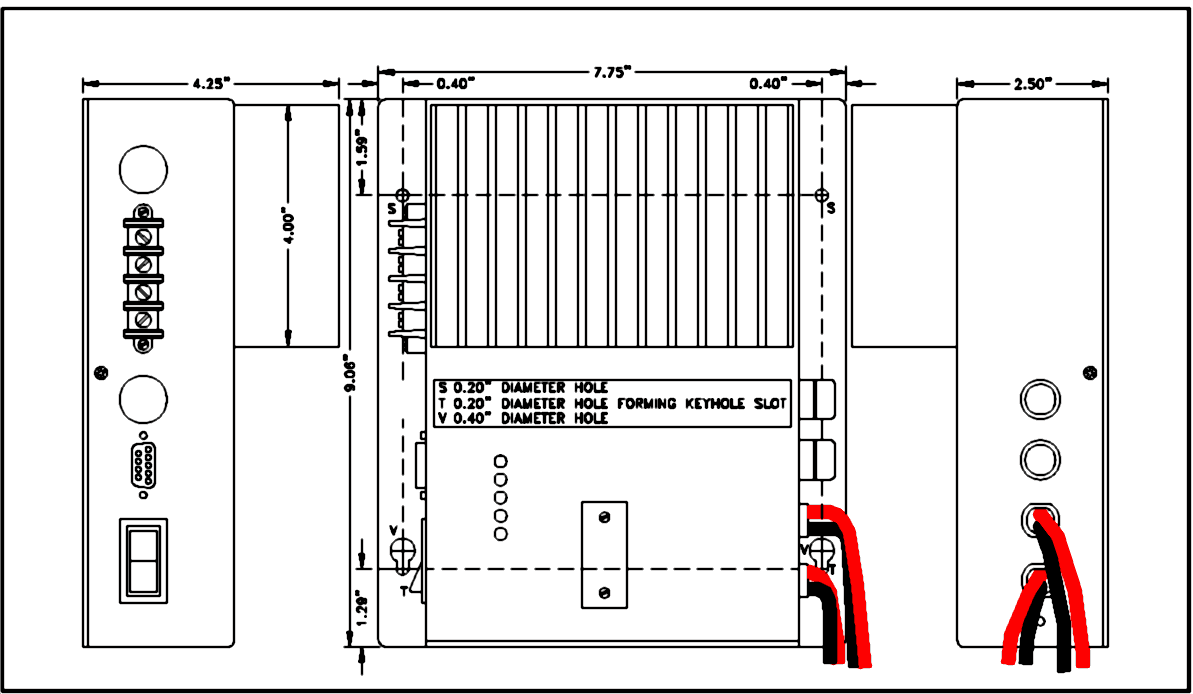

Drawings	Click Here for Drawing	Click Here for Drawing	Click Here for Drawing
Weight	13.38 Kg (29.5 lbs)	13.38 Kg (29.5 lbs)	13.38 Kg (29.5 lbs)	Weight
Finish	Black Chromate/ Power Epoxy Coat	Black Chromate/ Power Epoxy Coat	Black Chromate/ Power Epoxy Coat
Audible Noise	None	None	None
Typical Service Life	>87,000 hours	>87,000 hours	>87,000 hours
Warranty	3 years	1 Year	1 Year	Additional Features

Advantages:

Heavy Duty, High Current Switchmode DC/DC Converters.

High efficiency.

Excellent line and load regulation.

Wide input voltage range suitable for 12 Volt, 14 Volt and 16 Volt systems.
