Heavy Duty Industrial and Military Grade 24 volt to 12 volt DC/DC Converters 25 Amp, 340 Watt

Catalog page of DC converters with 24VDC input
More converters with 24VDC input
Heavy Duty and Military Grade 24V to 12V DC/DC converters
5 amp heavy duty DC/DC converter 15 amp heavy duty DC/DC converter 24VDC to 12VDC 25 amp heavy duty DC/DC converter 50 amp heavy duty DC/DC converter 24VDC to 12VDC
5 Amp 15 Amp 25 Amp this page 50 Amp

These are fully regulated switching power converters (switchmode), designed to allow the use of 12 volt equipment in 24 volt, 28 volt, and 36 volt vehicles. These are attractive, reliable, robust DC/DC converters good for fork lifts, off-road, construction and recreational equipment.

To determine the amperage you need just add up the watts of all the equipment and divide by 13.6 volts.

These converters have common negative, so they are not fully isolated, but can be used for almost all 12 volt applications.
DC-DC Converters Heavy Duty
25 Amp
DC to DC Converter

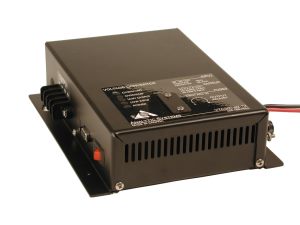

24V to 12V DC/DC converter, heavy duty industrial
Ruggedized* 25 Amp
DC to DC Converter
24V to 12V DC/DC converter, heavy duty industrial
Part Number
and Price
PVTC300-32-12
$491
Allow up to 15 days for manufacturing
PVTC300-32-12-X
$554
Allow up to 15 days for manufacturing
Input Voltage 20 to 45VDC
Max Input current at No Load mA
Output Voltage 13.6 VDC
(12V available, ask at time of order)
Max Output Current(s) 30 Amps
10 minutes maximum
Max Output Power 408 watts
Max Output Power (continuous) 340 Watts
(25 Amps)
Output current limit? Yes
Operating Temperature Range -25°C to +40°C -40°C to +55°C
Derating 2.5% per °C up to +50°C 2.5% per °C from +55°C to +85°C
Efficiency >90 %
Line Regulation <±0.5%
Load Regulation <±0.5%
Switching frequency kHz
Output ripple noise <25 mV rms
Noise inserted on the input terminals <25 mV rms
Isolation Common negative
>500 volts isolation from case to any terminal
Remote power on/off No No
Input Fuse 25A AGC
Connections Input #12 AWG wires
Output Screw terminals
Protection Over Voltage , Over Current, Short Circuit , Reverse Polarity , Over Load
Dimensions 231 x 198 x 64
(9.1 x 7.8 x 2.5 inches)
Drawings Click Here for Drawing
Weight 2.1 Kg (4.7 lbs)
Audible Noise None None
Warranty 3 years 1 Year
*Ruggedized includes high temperature range and extra silicone rubber for vibration resistance
drawing of the PVTC300 showing dimensions

Advantages:

OEM Battery Chargers Heavy Duty High Current Switchmode DC/DC Converters.

OEM Battery Chargers High efficiency.

OEM Power Supplies Excellent line and load regulation.

Universal Power Input OEM Power Supplies and OEM Battery Chargers Wide input voltage range suitable for 24 Volt, 28 Volt and 36 Volt systems.
